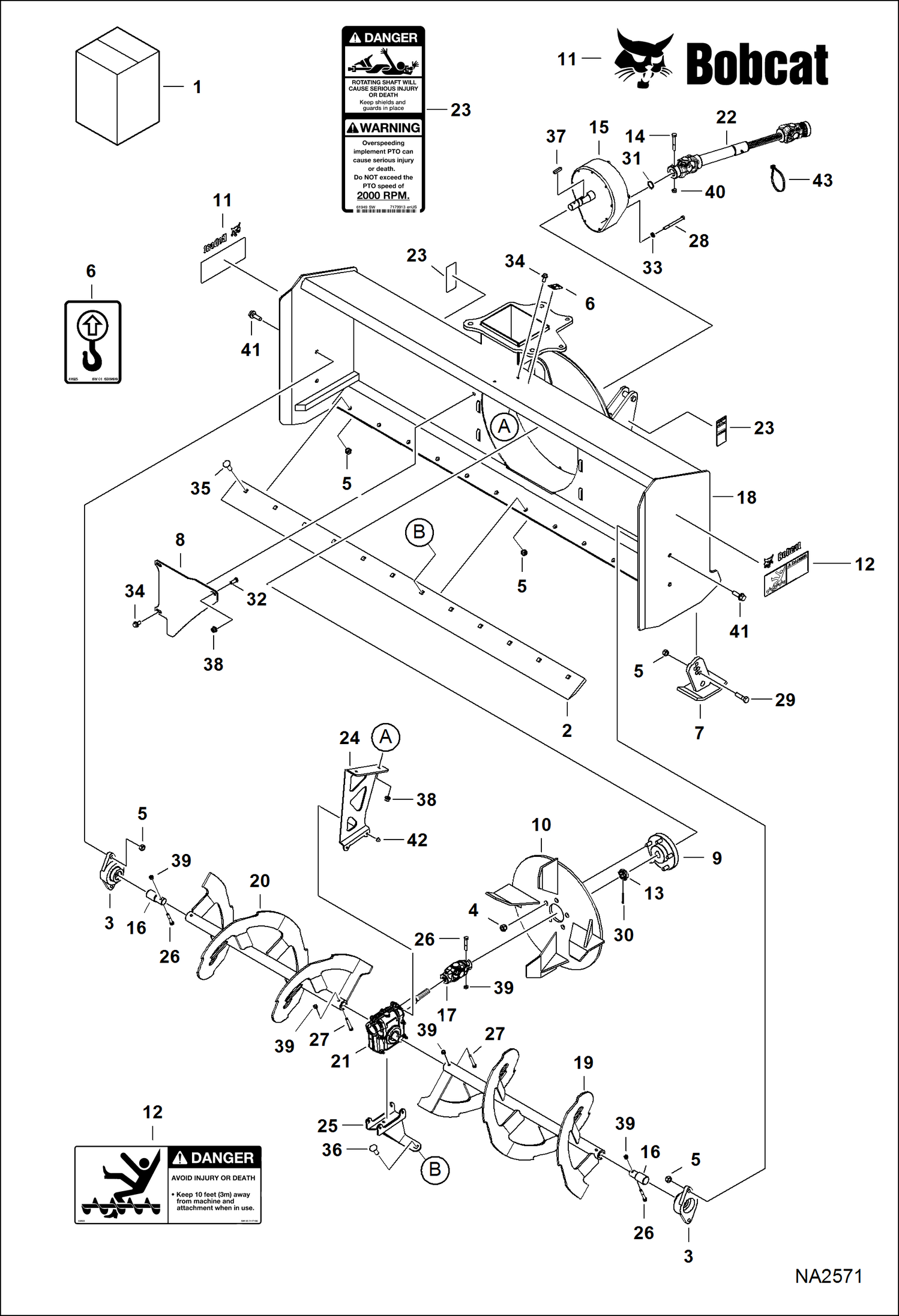

Запчасти Bobcat SNOWBLOWER SNOWBLOWER (Main Frame) (FCTSB72 AJGY) Компактные тракторы

1

SNOWBLOWER SALES #7183884 - 72''

2

6673334

EDGE, CUTTING BOLT ON 71''

3

6673348

BEARING

4

6679123

NUT

5

85D8

NUT, 5

6

6809609

DECAL

7

6907774

SKID SHOE

8

6958485

GUIDE

9

6958525

HUB ASSY

10

6970080

FAN

11

7109473

DECAL, LOGO BOBCAT AND HEAD

12

7117186

DECAL, AUGER

13

7155370

NUT, SLOTTED

14

7159025

BOLT

15

GEARBOX See Illustration SNOWBLOWER/ NA2529

16

7177042

SHAFT

17

7177153

U-JOINT

18

7177199

FRAME, MAIN ASSY

19

7177216

AUGER LH

20

7177217

AUGER RH

21

GEARBOX See Illustration SNOWBLOWER/ NA2530

22

DRIVE SHAFT See Illustration SNOWBLOWER/ NA2468

23

7179913

DECAL, DANGER

24

7184243

BRACKET

25

7187280

BRACKET

26

17C532

BOLT 5

27

17C536

BOLT

28

17C560

BOLT

29

17C828

BOLT

30

1F424

PIN

31

21J16

SNAP RING

32

25G616

SCREW

33

29E5

WASHER

34

31C612

BOLT

35

37C824

BOLT

36

37C828

BOLT

37

7J4106

KEY, SHAFT

38

83D6

NUT 5

39

85D5

NUT 5

40

85D6

NUT, 5

41

31C824

BOLT 10

42

83D5

NUT 5

43

6624289

STRAP, TIE
