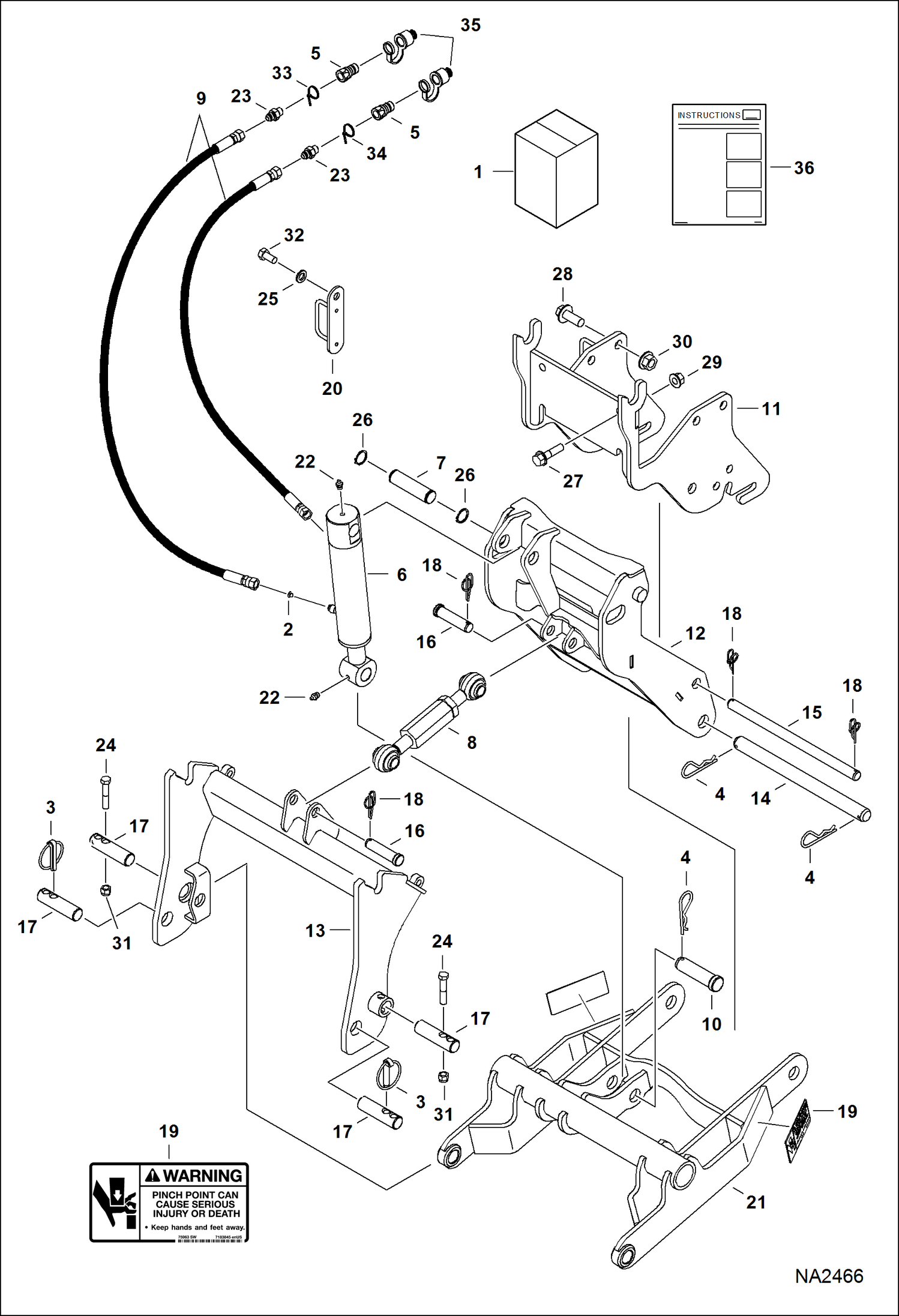

Запчасти Bobcat SNOWBLOWER SNOWBLOWER (Front Mount Lift Kit) (FCTSB49 AHN9) (FCTSB62 A5E0) (FCTSB72 AJGY) Компактные тракторы

1

KIT, LIFT MOUNT FRONT NLA - Ref. 2-36 - Order components - Was SALES #7181015 - D

2

6586430

ORIFICE

3

6668928

LOCK PIN

4

6675029

PIN

5

7190242

COUPLER, POPPET MALE Faster

5

7017076

KIT, SEAL Faster

6

6809501

CYLINDER See Illustration SNOWBLOWER/ PE1330A

7

6815505

PIN

8

7003512

LINK, ASSY

9

7142444

HOSE, HYD ASSY

10

7176940

PIN

11

7178896

MOUNT

12

7178899

MOUNT, FRONT

13

7178920

HITCH, LIFT FRONT

14

7178965

PIN, PIVOT

15

7178966

PIN, MOUNTING

16

7178969

PIN

17

7183277

PIN

18

7183708

RING, RETAINING

19

7183845

DECAL, WARNING

20

7184983

GUIDE, HOSE

21

7185365

LINK, LIFT

22

10H25

FITTING, GREASE 5

23

15KB0606

FITTING, HYD CONNECTOR

24

17C736

BOLT

25

1EM120

WASHER

26

21J16

SNAP RING

27

29CM1450

BOLT

28

29CM1640

BOLT

29

43DM14

NUT

30

43DM16

NUT

31

59D7

NUT

32

5CM1225

BOLT

33

6693543

BAND, SPIRAL YELLOW

34

6693544

BAND, SPIRAL GREEN

35

7188736

COVER, DUST

36

6989403

INSTRUCTIONS
