Запчасти Bobcat SNOWBLOWER SNOWBLOWER (Front Mount Lift Kit) (FCTSB49 AHN9) (FCTSB62 A5E0) Компактные тракторы

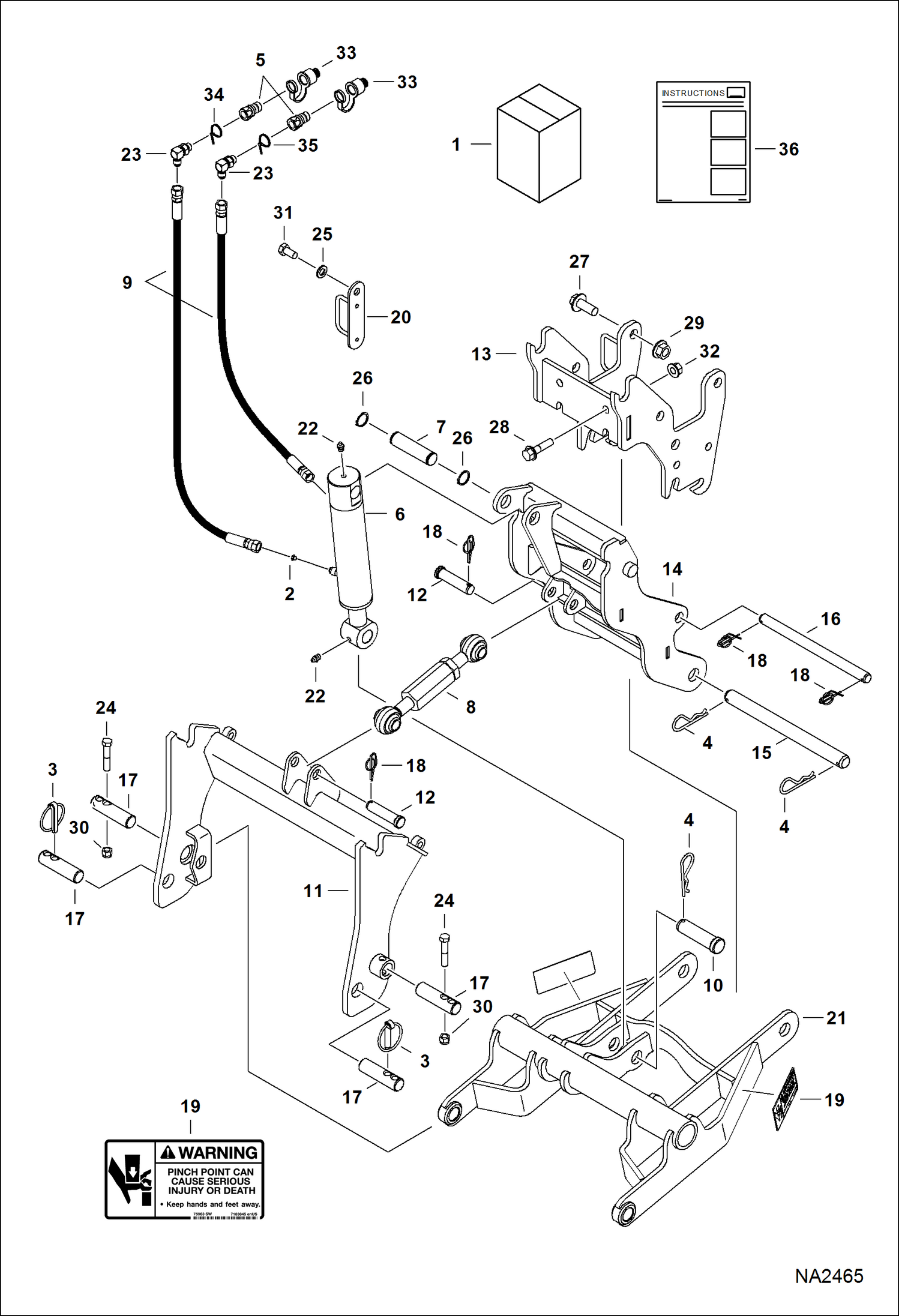

Схема запчастей Bobcat SNOWBLOWER - SNOWBLOWER (Front Mount Lift Kit) (FCTSB49 AHN9) (FCTSB62 A5E0) Компактные тракторы

Артикул

Название

Примечание

Количество

1

KIT, LIFT MOUNT FRONT SALES #7180951 - Ref. 2-36

2

6586430

ORIFICE

3

6668928

LOCK PIN

4

6675029

PIN

5

7190242

COUPLER, POPPET MALE Faster

5

7017076

KIT, SEAL Faster

6

6809501

CYLINDER See Illustration SNOWBLOWER/ PE1330A

7

6815505

PIN

8

7003512

LINK, ASSY

9

7142444

HOSE, HYD ASSY

10

7176940

PIN

11

7178920

HITCH, LIFT FRONT

12

7178969

PIN

13

7179442

MOUNT

14

7179445

MOUNT, FRONT

15

7179587

PIN, PIVOT

16

7179588

PIN, MOUNTING

17

7183277

PIN

18

7183708

RING, RETAINING

19

7183845

DECAL, WARNING

20

7184983

GUIDE, HOSE

21

7185790

LINK, LIFT

22

10H25

FITTING, GREASE 5

23

17KB0606

FITTING

24

17C736

BOLT

25

1EM120

WASHER

26

21J16

SNAP RING

27

29CM1640

BOLT

28

31C832

BOLT

29

43DM16

NUT

30

59D7

NUT

31

5CM1225

BOLT

32

89D8

NUT

33

7188736

COVER, DUST

34

6693543

BAND, SPIRAL YELLOW

35

6693544

BAND, SPIRAL GREEN

36

6989403

INSTRUCTIONS

Выбрано товаров: 37
