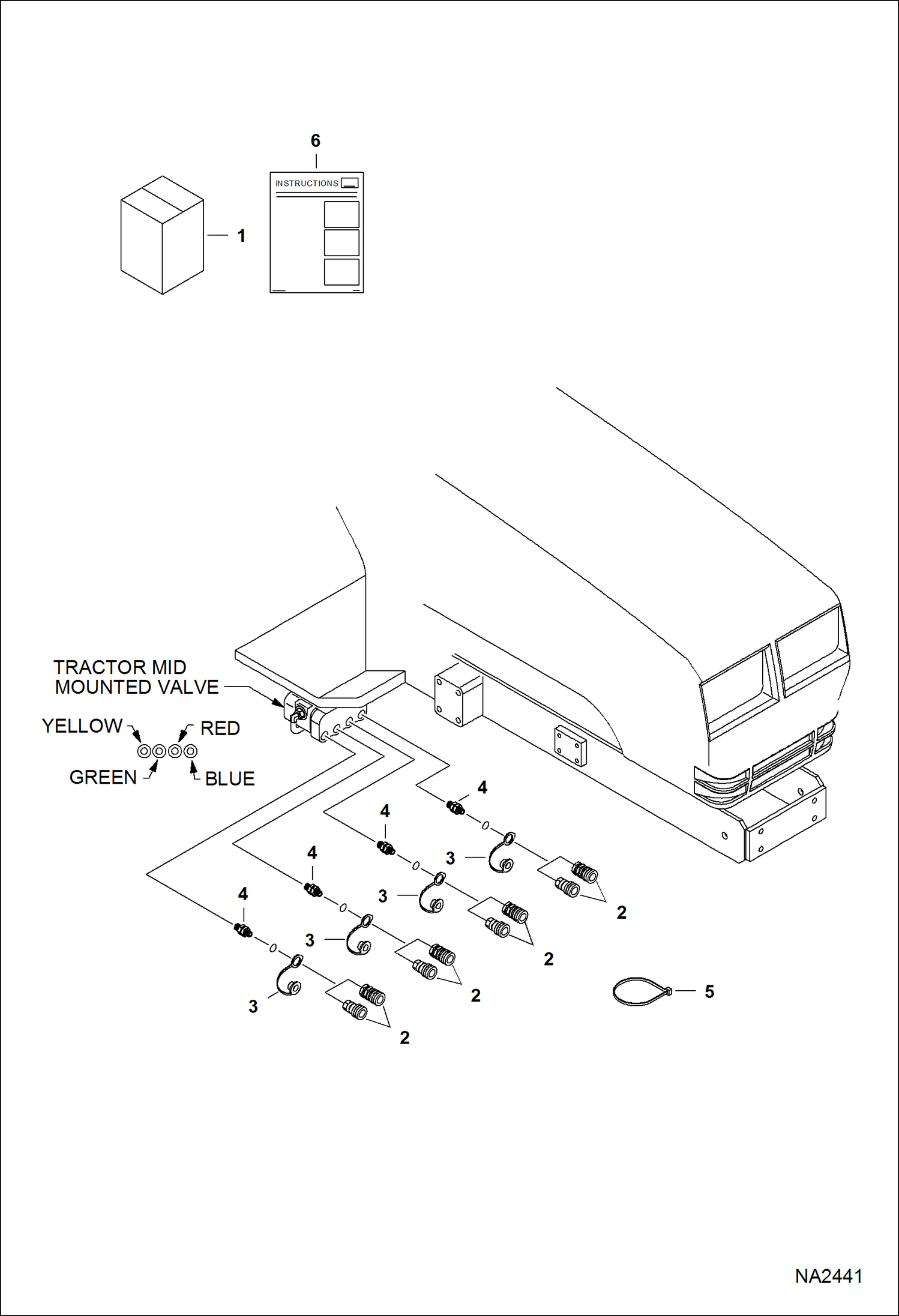

Запчасти Bobcat SNOWBLOWER SNOWBLOWER (Hydraulic Coupler Kit) (FCTSB49 AHN9) (FCTSB62 A5E0) (FCTSB72 AJGY) Компактные тракторы

1

7180840

KIT, COUPLER Ref. 2-6 - Use W/ 49'' & 62'' snow blowers

1

7181782

KIT, COUPLER Ref. 2-6 - Use W/ 49'', 62'' & 72'' snow blowers

1

7190809

KIT, COUPLER Ref. 2-6 - Use W/ 49'', 62'' & 72'' snow blowers

2

6693534

COUPLER, POPPET FEMALE Faster - Use W/ 7180840 kit

2

7013279

KIT, SEAL Faster - Use W/ 7180840 kit

2

7167717

COUPLER, POPPET FEMALE Parker - Use W/ 7181782 kit

2

7013280

O-RING Parker - Use W/ 7181782 kit

2

7013281

RING, BACK-UP Parker - Use W/ 7181782 kit

2

7190240

COUPLER, POPPET FEMALE Faster - Use W/ 7190809 kit

2

7017076

KIT, SEAL Faster - Use W/ 7190809 kit

3

6693540

PLUG, DUST Use W/ 7180840 kit

3

7188736

COVER, DUST Use W/ 7181782 kit & 7190809 kit

4

6693538

ADAPTER, HYD

5

6693541

BAND, SPIRAL BLUE blue

5

6693542

BAND, SPIRAL RED red

5

6693543

BAND, SPIRAL YELLOW yellow

5

6693544

BAND, SPIRAL GREEN green

6

6989404

INSTRUCTIONS Use W/ 7180840 kit & 7181782 kit - Was 6987504 - D

6

6989723

INSTRUCTIONS Use W/ 7190809 kit
