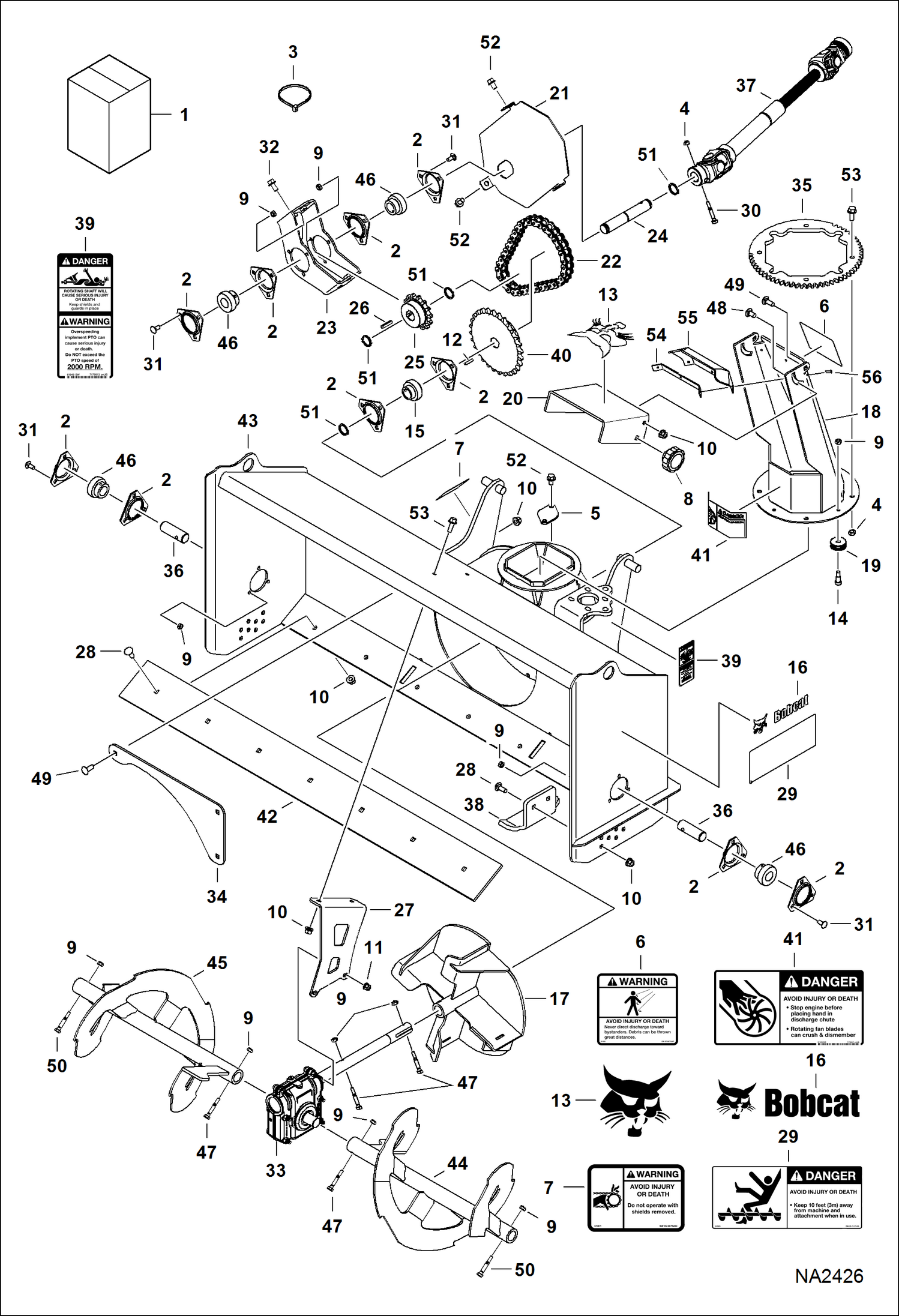

Запчасти Bobcat SNOWBLOWER SNOWBLOWER (Main Frame) (FCTSB49 AHN9) (FCTSB62 A5E0) Компактные тракторы

1

SNOWBLOWER SALES #7180808 - 49'' - Ref. 2-53

1

SNOWBLOWER SALES #7180808 - 49'' - Ref. 2-56

1

SNOWBLOWER SALES #7120369 - 62'' - Ref. 2-53

1

SNOWBLOWER SALES #7120369 - 62'' - Ref. 2-56

2

6515096

FLANGE

3

6624289

STRAP, TIE

4

85D6

NUT, 5

5

6667551

COVER

6

6673385

DECAL, WARNING

7

6673400

DECAL, WARNING

8

6684932

KNOB

9

85D5

NUT 5

10

83D6

NUT 5 49''

10

83D6

NUT 5 62''

11

83D5

NUT 5

12

7J3100

KEY

13

6700191

DECAL, LOGO BOBCAT HEAD

14

38C610

BOLT

15

7008364

BEARING

16

7109473

DECAL, LOGO BOBCAT AND HEAD

17

7112961

FAN, SNOWBLOWER

18

7112963

CHUTE, SNOWBLOWER

19

7112991

ROLLER

20

7112992

DEFLECTOR, CHUTE

21

7112995

COVER

22

7112994

CHAIN, DRIVE

23

7178140

HOUSING

24

7179151

SHAFT, DRIVE

25

7179946

SPROCKET

26

7J3104

KEY, SQ 1/4 X 1-1/4

27

7113127

MOUNT, GEARBOX

28

37C616

BOLT 49''

28

37C616

BOLT 62''

29

7117186

DECAL, AUGER

30

7159025

BOLT

31

37C512

BOLT

32

31C612

BOLT

33

GEARBOX See Illustration SNOWBLOWER/ NA2435

34

7179147

PLATE

35

7179150

GEAR, RING CHUTE

36

7179153

SHAFT

37

SHAFT, DRIVE See Illustration SNOWBLOWER/ NA2468

38

7179911

SKID, SHOE

39

7179913

DECAL, DANGER

40

7179945

SPROCKET

41

7179947

DECAL, DANGER

42

7180804

EDGE, CUTTING BOLT-ON 49'' 49''

42

7112993

EDGE, CUTTING BOLT-ON 62'' 62''

43

7180805

FRAME, MAIN ASSY 49''

43

7112960

FRAME, MAIN ASSY 62''

44

7180811

AUGER LH - for 49'' snowblower

44

7112962

AUGER LH - for 62'' snowblower

45

7180812

AUGER RH - for 49'' snowblower

45

7112984

AUGER RH - for 62'' snowblower

46

7183279

BEARING

47

7229185

BOLT, SHEAR Was 7185804 - C

48

10C612

BOLT

49

10C616

BOLT 10

50

17C532

BOLT 5

51

22J16

SNAP RING

52

31C610

BOLT

53

31C616

SCREW

54

7233624

SEAL, DEFLECTOR

55

7233625

SEAL, RETAINER

56

6814428

RIVET
