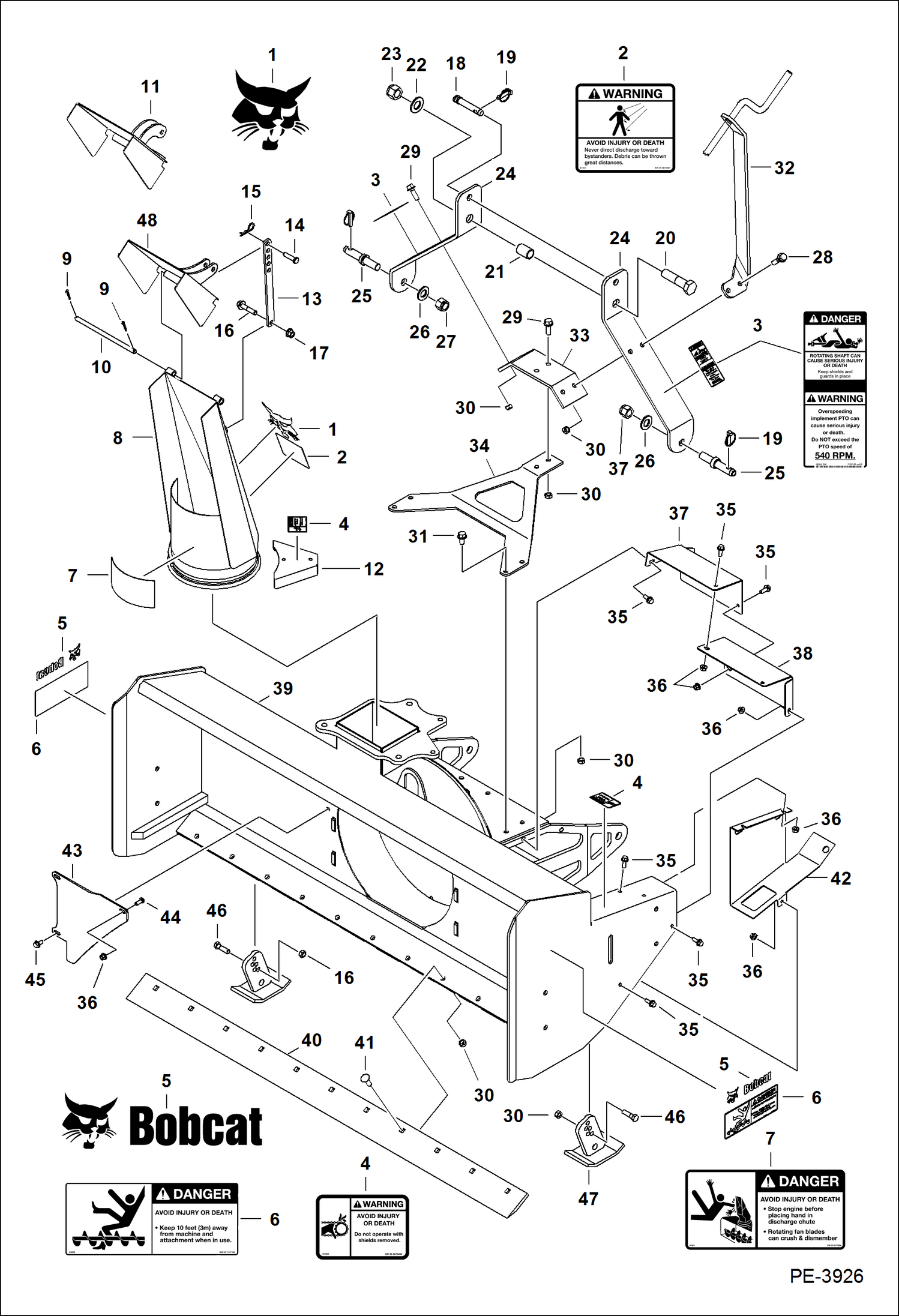

Запчасти Bobcat SNOWBLOWER SNOWBLOWER (Main Frame) (3SB54 ABCW) (3SB66 ABCU) (3SB72 AB4K) Компактные тракторы

1

6700191

DECAL, LOGO BOBCAT HEAD

2

6673385

DECAL, WARNING

3

7139188

DECAL, DANGER PTO speed

4

6673400

DECAL, WARNING

5

7109473

DECAL, LOGO BOBCAT AND HEAD

6

7117186

DECAL, AUGER Was 6673383 - A

7

6673384

DECAL, DANGER

8

6907562

CHUTE

9

1F412

PIN

10

6970081

PIN

11

DEFLECTOR, CHUTE NAP - W/hook mounting brackets - Order Ref. 48 - Was 6907449 - A

12

6958482

GUARD chain

13

7153016

ROD

14

14JM1250

PIN

15

1318565

COTTER PIN

16

31C836

BOLT

17

83D8

NUT 5

18

7107589

PIN 3pt upper

19

6560382

PIN, LOCK

20

17C1664

BOLT

21

7107587

SPACER

22

25E31

WASHER

23

59D16

NUT

24

7153010

SUPPORT

25

7107590

PIN 3pt lower

26

25E29

WSHR

27

60D14

NUT

28

31C832

BOLT

29

31C824

BOLT 10

30

85D8

NUT, 5

31

31C820

BOLT Was 31C816 - B,D

32

7154324

SUPPORT

33

7107588

BRACE

34

7153000

SUPPORT

35

31C616

SCREW

36

83D6

NUT 5

37

7169639

SHIELD, SHAFT

38

7154934

SHIELD, SHAFT for model 3SB54

38

7154830

SHIELD, SHAFT for model 3SB66

38

7153013

SHIELD, SHAFT for model 3SB72

39

7154928

FRAME, MAIN ASSY for model 3SB54

39

7154825

FRAME, MAIN ASSY for model 3SB66

39

7152995

FRAME, MAIN ASSY for model 3SB72

40

6959148

CUTTING EDGE for model 3SB54

40

6673596

EDGE, CUTTING BOLT ON BEVELED 65'' for model 3SB66

40

6673334

EDGE, CUTTING BOLT ON 71'' for model 3SB72

41

37C824

BOLT qty. (9) for 3SB54, qty. (11) for 3SB66, qty. (12) for 3SB72

42

7156816

GUARD, CHAIN

43

6958485

GUIDE

44

25G616

SCREW

45

31C612

BOLT

46

17C828

BOLT

47

6907774

SKID SHOE

48

6907449

DEFLECTOR, CHUTE W/straight mounting brackets
