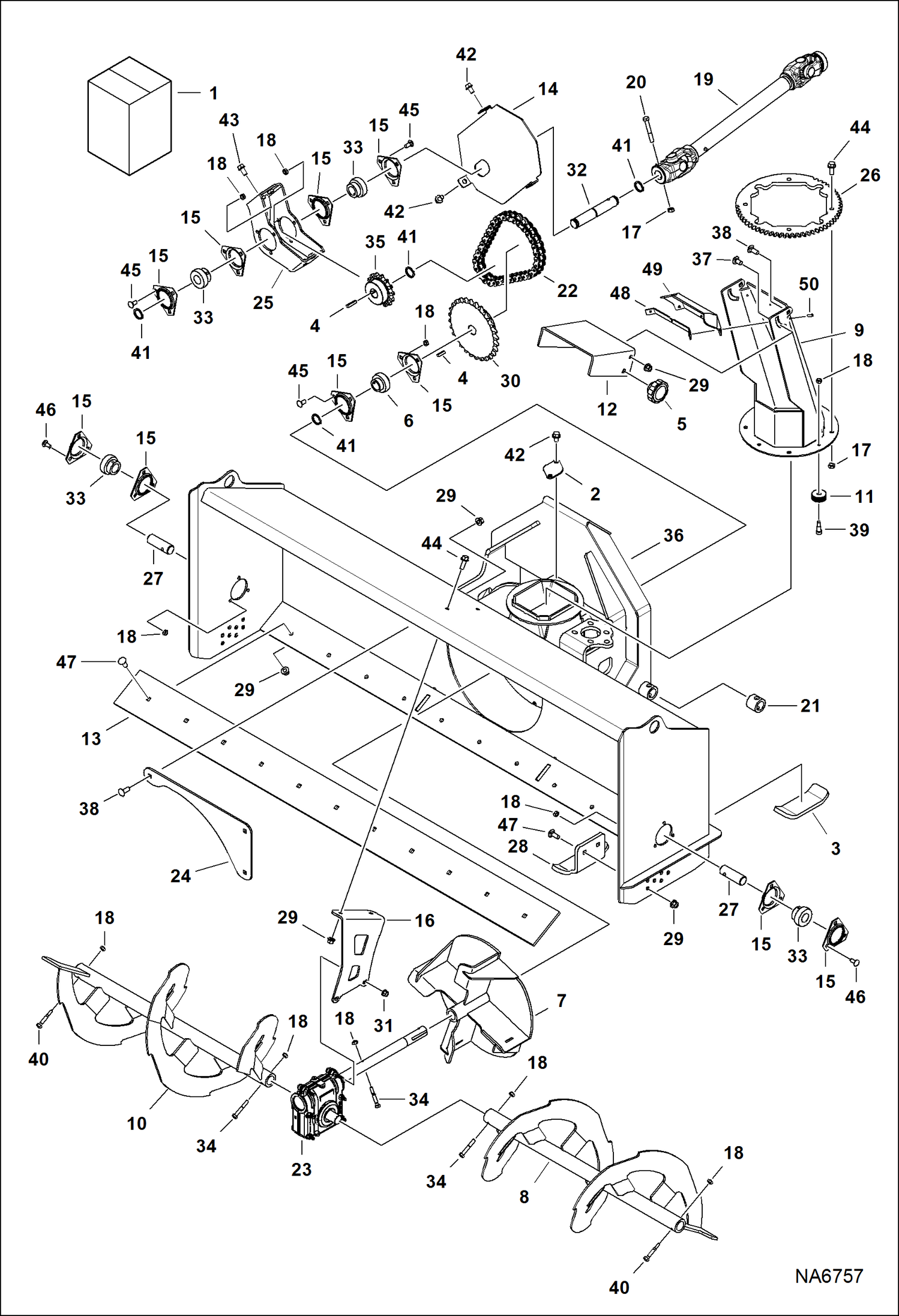

Запчасти Bobcat SNOWBLOWER SNOWBLOWER (Main Frame) (62 AU4T) Универсальный мини-грузовик

1

SNOWBLOWER SALES #7204960 - Ref. 2-47

1

SNOWBLOWER SALES #7204960 - Ref. 2-50

2

6667551

COVER

3

7185748

SKID, SHOE

4

7J3104

KEY, SQ 1/4 X 1-1/4

5

6684932

KNOB

6

7008364

BEARING

7

7112961

FAN, SNOWBLOWER

8

7112962

AUGER LH

9

7112963

CHUTE, SNOWBLOWER

10

7112984

AUGER RH

11

7112991

ROLLER

12

7112992

DEFLECTOR, CHUTE

13

7112993

EDGE, CUTTING BOLT-ON 62''

14

7112995

COVER chaincase

15

6515096

FLANGE

16

7113127

MOUNT, GEARBOX

17

85D6

NUT, 5

18

85D5

NUT 5

19

7148680

SHAFT, DRIVE See Illustration SNOWBLOWER/ PE3837

20

73G632

SCREW Was 7159025 - B

21

7183278

BUSHING

22

7112994

CHAIN, DRIVE

23

7178987

GEARBOX See Illustration SNOWBLOWER/ NA2435

24

7179147

PLATE

25

7178140

HOUSING sprocket

26

7179150

GEAR, RING CHUTE

27

7179153

SHAFT auger

28

7179911

SKID, SHOE

29

83D6

NUT 5

30

7179945

SPROCKET

31

83D5

NUT 5

32

7179151

SHAFT, DRIVE

33

7183279

BEARING

34

7229185

BOLT, SHEAR Was 7185804 - C

35

7179946

SPROCKET

36

7204953

FRAME, MAIN ASSY

37

10C612

BOLT

38

10C616

BOLT 10

39

38C610

BOLT

40

17C532

BOLT 5

41

22J16

SNAP RING

42

31C610

BOLT

43

31C612

BOLT

44

31C616

SCREW

45

37C512

BOLT

46

37C512

BOLT

47

37C616

BOLT

48

7233624

SEAL, DEFLECTOR

49

7233625

SEAL, RETAINER

50

6814428

RIVET
