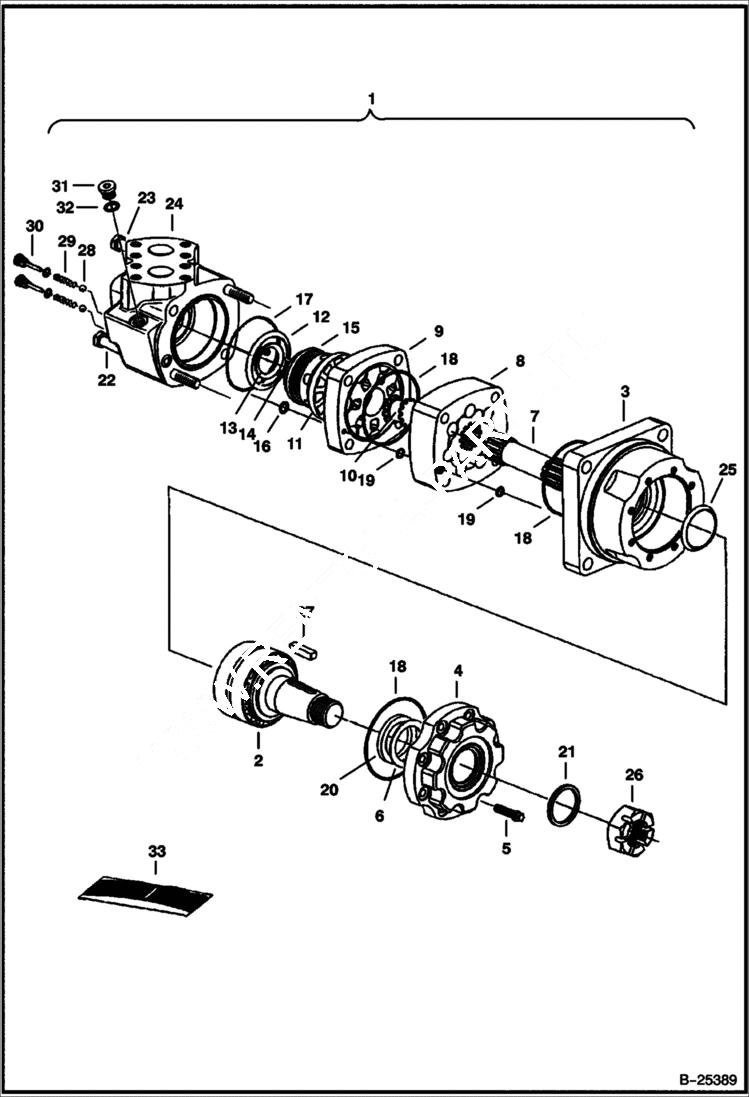

Запчасти Bobcat SNOWBLOWER SBX240 SNOWBLOWER (Fan Motor) (72 A00F) (84 7136) Loader

1

6687254

MOTOR

2

6689396

SHAFT

3

6669424

HOUSING

4

6680168

COVER

5

6666938

BOLT

6

6666939

RING

7

6630373

SHAFT

8

6666940

GEROLER

9

6513505

PLATE

10

6513506

DRIVE valve

11

6513507

VALVE

12

6513530

SEAL outer

13

6666941

SEAL inner

14

6190121

SPRING

15

6630042

PLATE balancing

16

25K20010

O RING 10

17

6680170

O-RING

18

6666942

SEAL

19

6667332

SEAL

20

6666943

SEAL shaft

21

6630796

SEAL

22

18C792

BOLT

23

6689395

BOLT

24

6689397

HOUSING

25

6513529

SEAL face

26

5200255

NUTCASTLE slotted

27

6630089

KEY

28

10J8

BALL

29

6190116

SPRING

30

1992107

PLUG

31

1992104

PLUG

32

6664822

O-RING

33

6666926

SEAL KIT rear - W/Ref. 11, 12 & 16-19

33

6666928

KIT, SEAL shaft - W/Ref. 6, 18, 20, 21 & 25
