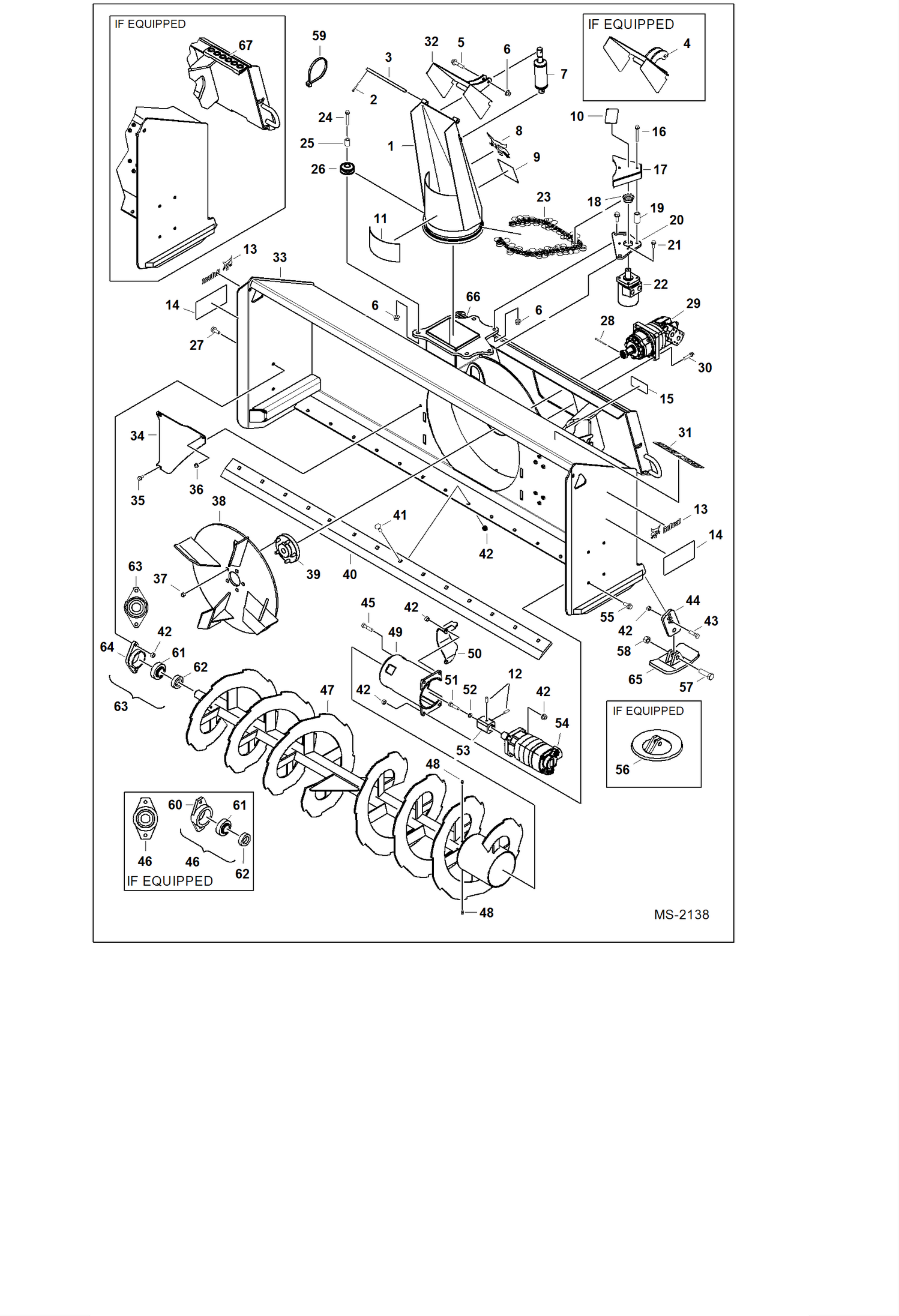

Запчасти Bobcat SNOWBLOWER SBX240 SNOWBLOWER (Main Frame) (72 A00F) (84 7136) Loader

1

6907562

CHUTE

2

1F416

PIN Was 1F000412B - D

3

6970081

PIN

4

DEFLECTOR, CHUTE NAP - W/hook mounting brackets - Order Ref. 60 - Was 6907449 - A

5

31C836

BOLT

6

83D8

NUT 5 Was 89D8 - B

7

6673401

CYLINDER

8

6700191

DECAL, LOGO BOBCAT HEAD

9

6673385

DECAL, WARNING See Illustration SNOWBLOWER/ NA6247

9

7130139

DECAL, WARNING See Illustration SNOWBLOWER/ NA6247 - no-text

10

6673400

DECAL, WARNING See Illustration SNOWBLOWER/ NA6247

10

7130140

DECAL, WARNING See Illustration SNOWBLOWER/ NA6247 - no-text

11

6673384

DECAL, DANGER See Illustration SNOWBLOWER/ NA6247

11

7130138

DECAL, DANGER See Illustration SNOWBLOWER/ NA6247 - no-text

12

15G604

SCREW

13

6727324

DECAL, LOGO BOBCAT AND HEAD

13

7109473

DECAL, LOGO BOBCAT AND HEAD Use on both sides

14

7117186

DECAL, AUGER See Illustration SNOWBLOWER/ NA6247 - Was 6673383 - A

14

7130158

DECAL, AUGER See Illustration SNOWBLOWER/ NA6247 - no-text

15

DECAL NLA - patent - Was 6557224 - C

16

31C648

BOLT Was 35C648 - B

17

6958482

GUARD chain

18

6673336

SPROCKET

19

7113565

BUSHING

20

6958472

BRACKET

21

31C616

SCREW Was 35C616 - B

22

7188541

MOTOR, HYD See Illustration SB200, SB240 & SBX240 SNOWBLOWER/ NA2594 chute rotator - Was 6907666 - A

23

6907945

CHAIN, ROLLER

24

31C840

SCREW Was 35C840 - B

25

6907415

BUSHING

26

6907941

GUIDE

27

31C824

BOLT 10

28

1F424

PIN

29

MOTOR See Illustration SBX240 SNOWBLOWER/ B25389 FAN

30

93G828

BOLT

31

7110575

DECAL model SBX240

32

6907449

DEFLECTOR, CHUTE W/straight mounting brackets

33

7112898

FRAME 72''

33

7109128

FRAME 84''

34

6958489

GUIDE

35

31C612

BOLT Was 35C612 - B

36

83D6

NUT 5 Was 89D6 - B

37

6679123

NUT

38

6907555

FAN

39

6958525

HUB ASSY

40

6673334

EDGE, CUTTING BOLT ON 71'' 72''

40

6673446

EDGE, CUTTING BOLT ON 83'' 84''

41

37C824

BOLT

42

85D8

NUT, 5 Was 87D000008B - B

43

17C828

BOLT Was 17C000824B - B

44

6907433

BRACKET skid shoe

45

17C832

BOLT

46

6674075

BEARING ASSY W/flange, bearing and collar

46

6673434

FLANGE

46

6673449

BEARING

46

6673450

COLLAR locking

47

7112897

AUGER 72''

47

7108837

AUGER 84''

48

10H35

FITTING, GREASE 10

49

7108226

HOUSING

50

6958486

GUARD

51

17C624

BOLT 5

52

4E6

WASHER

53

6673437

COUPLER drive

54

MOTOR See Illustration SBX240 SNOWBLOWER/ B25388 AUGER

55

31C824

BOLT 10 Was 35C824 - B

56

6907521

SKID SHOE

57

17C1240

BOLT

58

85D12

NUT, 5

59

6624289

STRAP, TIE
