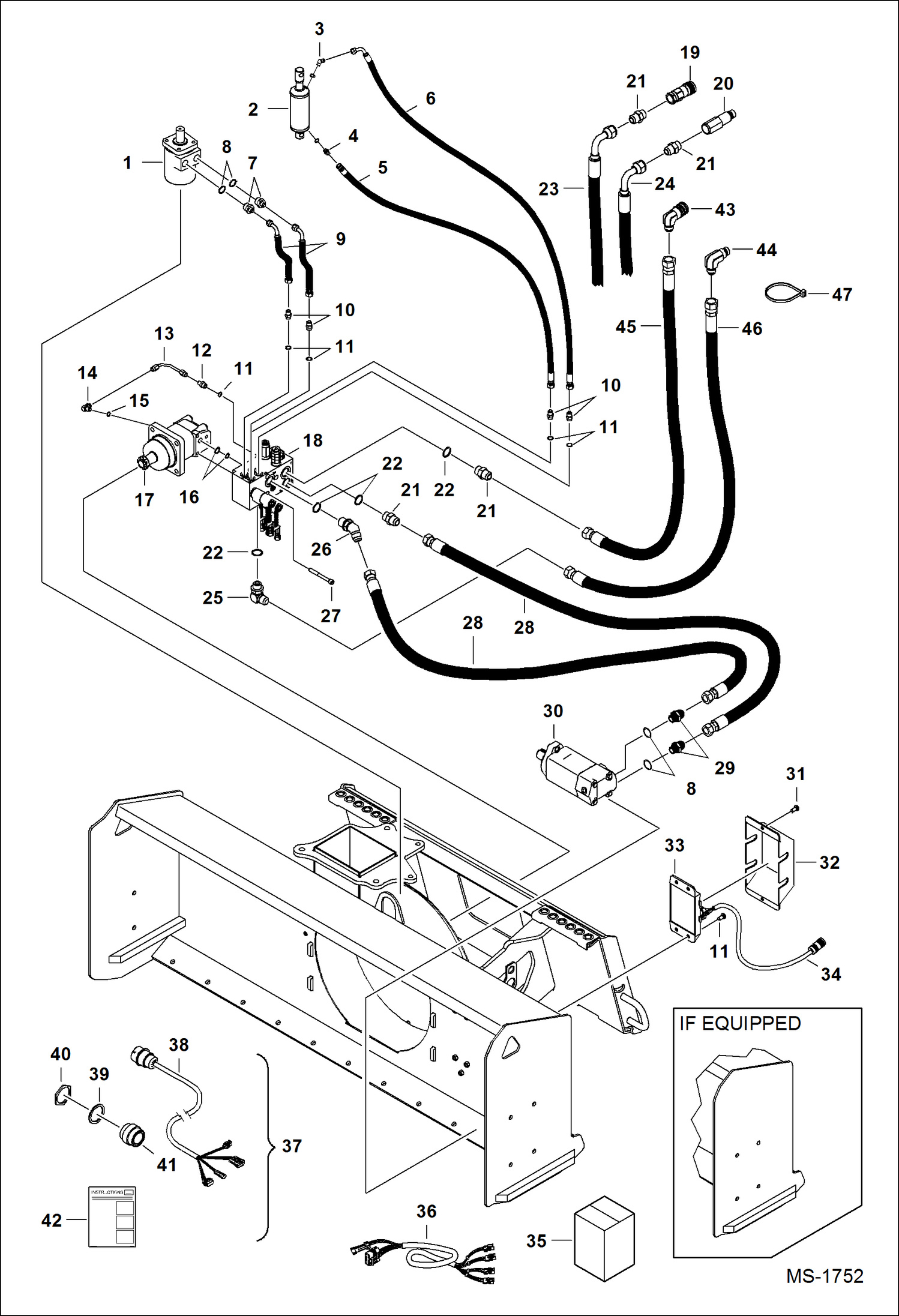

Запчасти Bobcat SNOWBLOWER SB200 SNOWBLOWER (Hydraulics & Electrical) (54 7135) (60 A3G8, 7127) (66 7128) (72 A3KC, 7129) (78 7130) Loader

1

7188541

MOTOR, HYD See Illustration SB200, SB240 & SBX240 SNOWBLOWER/ NA2594 chute rotator - Was 6907666 - A

2

6673401

CYLINDER

3

84F3

FITTING, HYD ELBOW

4

89F3

ADAPTOR

5

6958591

HOSE

6

6958592

HOSE

7

15KB0610

FITTING, HYD CONNECTOR

8

79K10

O RING 10

9

6958590

HOSE Was 6958600 - B

10

15KB0606

FITTING, HYD CONNECTOR

11

79K6

O RING 10

12

15KB0406

FTG HYD S CONNECTOR

13

6958580

TUBELINE

14

17KB0404

FTG HYD ELBOW 90

15

79K4

O RING 10

16

6682481

O-RING

17

MOTOR See Illustration SB200 & SB240 SNOWBLOWER/ B21683 fan - 4.9 cubic inch

17

MOTOR See Illustration SB200 & SB240 SNOWBLOWER/ B21683A fan - 5.5 cubic inch

17

MOTOR See Illustration SB200 & SB240 SNOWBLOWER/ B21683B fan - 6.2 cubic inch

17

MOTOR See Illustration SB200 & SB240 SNOWBLOWER/ B21683C fan - 8.0 cubic inch

17

MOTOR See Illustration SB200 & SB240 SNOWBLOWER/ B21683D fan - 9.6 cubic inch

17

MOTOR See Illustration SB200 & SB240 SNOWBLOWER/ B21683E fan - 11.9 cubic inch

18

6681510

VALVE ASSY See Illustration SB200 & SB240 SNOWBLOWER/ B21714

19

6672960

COUPLER, FF FEMALE straight - Faster #2FF112-34SAE-FL

19

6687636

COUPLER, FF FEMALE straight - 87 mm (3.42'') long - Faster #3FF112-34SAE-F

20

6674688

COUPLER, FF MALE straight - 117,3 mm (4.62'') long - Faster #3FF112-34SAE-M

20

6688454

COUPLER, FF MALE straight - 83,5 mm (3.29'') long - Faster #FF112-34SAE-M

21

15KB1212

FITTING, HYD CONNECTOR

22

79K12

O RING 10

23

6905455

HOSE 1600 mm (63'') long - 90 degree fitting (1.063'' thread) & 1.063'' thread - Use straight couplers

24

6958593

HOSE 1550 mm (61'') long - 90 degree fitting (1.063'' thread) & 1.063'' thread - Use straight couplers

25

17KB1212

FITTING, HYD ELBOW

26

18KB1212

FITTING, HYD ELBOW

27

73G656

SCREW

28

6959156

HOSE Use W/ 54'' wide blower

28

7218774

HOSE, HYD Use W/ 60'' wide blower - Was 6958595 - A

28

7218775

HOSE, HYD Use W/ 66'' wide blower - Was 6958596 - A

28

7218776

HOSE, HYD Use W/ 72'' wide blower - Was 6958597 - A

28

7218777

HOSE, HYD Use W/ 78'' wide blower - Was 6958598 - A

29

6958599

ADAPTER

30

MOTOR See Illustration SB200 & SB240 SNOWBLOWER/ D1757 AUGER

31

25G612

SCREW

32

6905670

COVER

33

6675128

CAP

34

6678677

CONTROLLER, ACD BASE ACD

35

6725385

HARNESS 7-pin

36

6734654

REPAIR KIT for Ref. 35

37

6734188

HARNESS ACD to valve - for standard flow

37

6734189

HARNESS ACD to valve - for high flow

38

6728165

KIT 14-pin adapter harness kit - converts 7-pin snow blower to be used with 14-pin loader - W/Ref. 39 - 43 - Was 6725383 - D

39

6728166

HARNESS 14-pin adapter - Was 6719697 - D

40

6664037

WASHER

41

6664036

NUT

42

6673680

RECEPTACLE, TWIST-LOC

43

6901005

INSTRUCTIONS

44

7168433

COUPLER, FF FEMALE 90 degree

45

7168432

COUPLER, FF MALE 90 degree

46

7170755

HOSE, HYD 1676 mm (66'') long - 1.0625'' threads - Use 90 degree couplers

47

7170680

HOSE, HYD 1575 mm (62'') long - 1.0625'' threads - Use 90 degree couplers

48

6624289

STRAP, TIE
