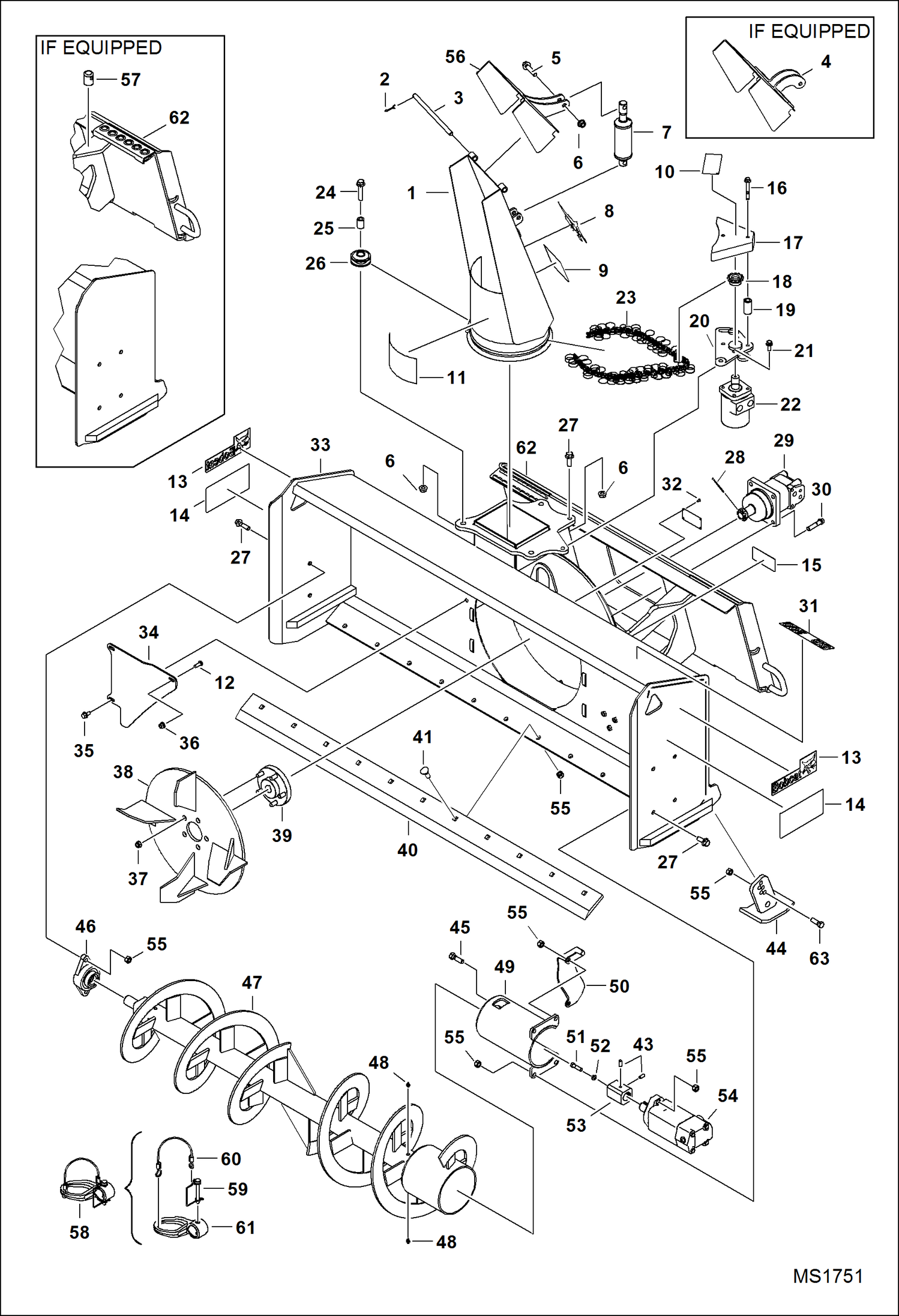

Запчасти Bobcat SNOWBLOWER SB200 SNOWBLOWER (Main Frame) (54 7135) (60 A3G8, 7127) (66 7128) (72 A3KC, 7129) (78 7130) Loader

1

6907562

CHUTE

2

1F416

PIN Was 1F000412B - D

3

6970081

PIN

4

DEFLECTOR, CHUTE NAP - W/hook mounting brackets - Order Ref. 56 - Was 6907449 - A

5

31C836

BOLT

6

83D8

NUT 5 Was 89D000008B - B

7

6673401

CYLINDER

8

6700191

DECAL, LOGO BOBCAT HEAD

9

6673385

DECAL, WARNING See Illustration SNOWBLOWER/ NA6247

9

7130139

DECAL, WARNING See Illustration SNOWBLOWER/ NA6247 - no-text

10

6673400

DECAL, WARNING See Illustration SNOWBLOWER/ NA6247

10

7130140

DECAL, WARNING See Illustration SNOWBLOWER/ NA6247 - no-text

11

6673384

DECAL, DANGER See Illustration SNOWBLOWER/ NA6247

11

7130138

DECAL, DANGER See Illustration SNOWBLOWER/ NA6247 - no-text

12

6727323

DECAL, LOGO BOBCAT AND HEAD LH

13

6727324

DECAL, LOGO BOBCAT AND HEAD RH

13

7109473

DECAL, LOGO BOBCAT AND HEAD Use on both sides

14

7117186

DECAL, AUGER See Illustration SNOWBLOWER/ NA6247 - Was 6673383 - A

14

7130158

DECAL, AUGER See Illustration SNOWBLOWER/ NA6247 - no-text

15

DECAL NLA - patent - Was 6557224 - C

16

31C648

BOLT Was 35C000648B - B

17

6958482

GUARD chain

18

6673336

SPROCKET

19

7113565

BUSHING Was 6806986 - B

20

6958472

BRACKET

21

31C616

SCREW Was 35C616 - B

22

7188541

MOTOR, HYD See Illustration SB200, SB240 & SBX240 SNOWBLOWER/ NA2594 chute rotator - Was 6907666 - A

23

6907945

CHAIN, ROLLER

24

31C840

SCREW Was 35C000840B - B

25

6907415

BUSHING

26

6907941

GUIDE

27

31C824

BOLT 10

28

1F424

PIN

29

MOTOR See Illustration SB200 & SB240 SNOWBLOWER/ B21683 fan - 4.9 cubic inch

29

MOTOR See Illustration SB200 & SB240 SNOWBLOWER/ B21683A fan - 5.5 cubic inch

29

MOTOR See Illustration SB200 & SB240 SNOWBLOWER/ B21683B fan - 6.2 cubic inch

29

MOTOR See Illustration SB200 & SB240 SNOWBLOWER/ B21683C fan - 8.0 cubic inch

29

MOTOR See Illustration SB200 & SB240 SNOWBLOWER/ B21683D fan - 9.6 cubic inch

29

MOTOR See Illustration SB200 & SB240 SNOWBLOWER/ B21683E fan - 11.9 cubic inch

30

93G824

BOLT

31

6970010

DECAL model SB200

32

6630207

RIVET 5

33

6958977

MAIN FRAME 54''

33

6907870

MAIN FRAME 60''

33

6907869

MAIN FRAME 66''

33

6907754

MAIN FRAME 72''

33

6907890

MAIN FRAME 78''

34

6958485

GUIDE

35

31C612

BOLT Was 35C612 - B

36

83D6

NUT 5 Was 89D000006B - B

37

6679123

NUT

38

6970080

FAN

39

6958525

HUB ASSY

40

6959148

CUTTING EDGE 54''

40

6958757

EDGE, CUTTING BOLT ON BEVELED 59'' 60''

40

6673596

EDGE, CUTTING BOLT ON BEVELED 65'' 66''

40

6673334

EDGE, CUTTING BOLT ON 71'' 72''

40

6673513

EDGE, CUTTING BOLT ON BEVELED 77'' 78''

41

37C824

BOLT

42

87D8

NUT

43

15G604

SCREW

44

6907774

SKID SHOE skid shoe

45

17C828

BOLT

46

6673348

BEARING W/flange, bearing and collar

46

6673351

FLANGE

46

6673350

BEARING

46

6673349

COLLAR locking

47

6958973

AUGER 54''

47

6958507

AUGER 60''

47

6958444

AUGER 66''

47

6958508

AUGER 72''

47

6958509

AUGER 78''

48

10H35

FITTING, GREASE 10

49

6958459

HOUSING

50

6958486

GUARD

51

17C624

BOLT 5

52

4E6

WASHER

53

6673437

COUPLER drive

54

MOTOR See Illustration SB200 & SB240 SNOWBLOWER/ D1757 AUGER

55

85D8

NUT, 5

55

85D8

NUT, 5

56

6907449

DEFLECTOR, CHUTE W/straight mounting brackets

57

7170300

PIN, PIVOT

58

7161953

GUIDE, HOSE ASSY Ref. 59-61

59

7161559

PIN, SNAPPER

60

CABLE ASSY NSS - 304,8 mm (12'') long - Order 6558309 wire rope & (2) 6558310 sleeve

60

6558309

WIRE ROPE bulk - sold per foot

60

6558310

SLEEVE

61

GUIDE NSS - Order Ref. 58
