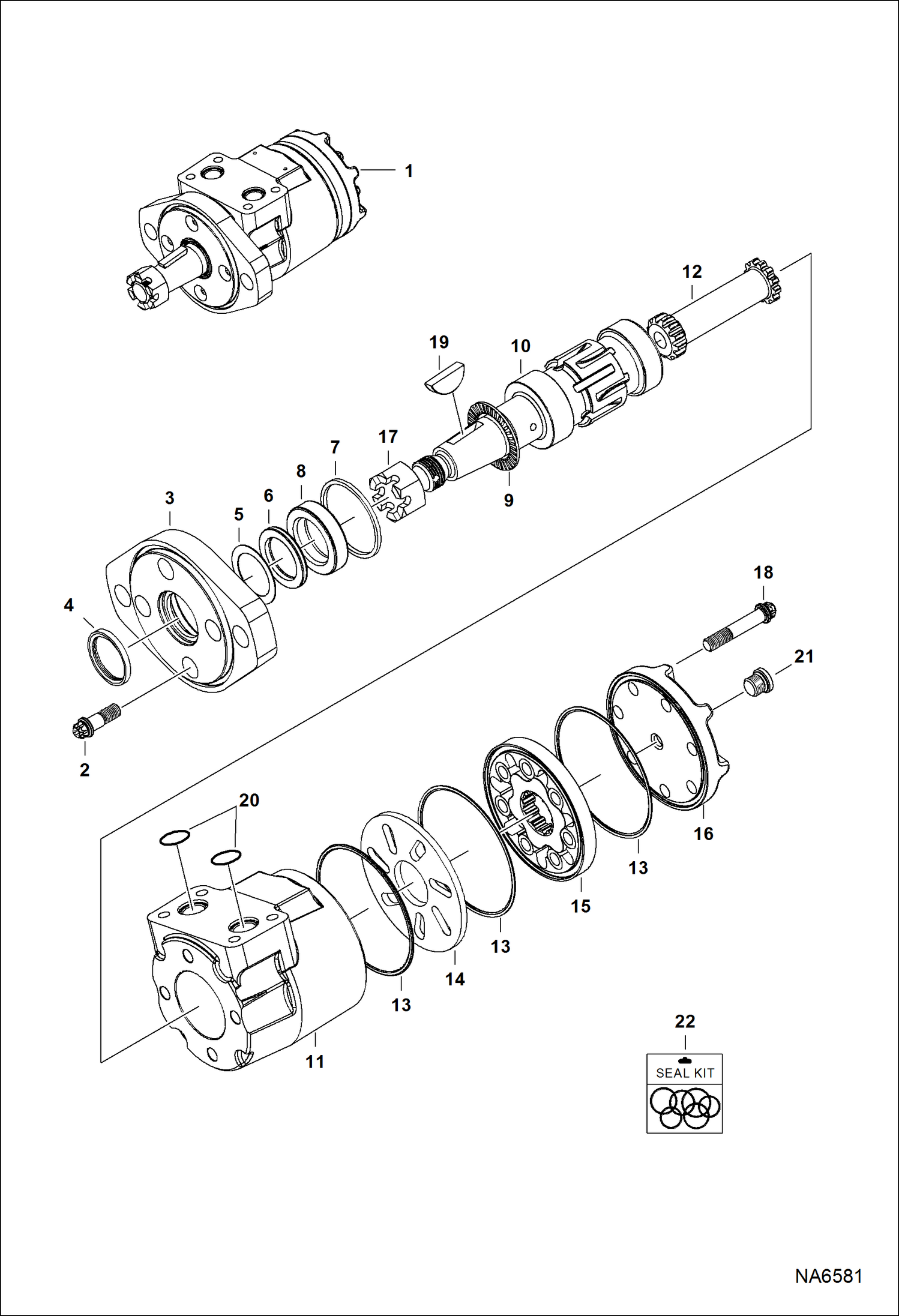

Запчасти Bobcat SNOWBLOWER SB150 SNOWBLOWER (Fan Motor) (36 7134) (48 7133) Loader

1

7214010

MOTOR, FAN Ref. 2-21 - Model 158-3993-001

2

6665325

SCREW

3

7022754

FLANGE, MOUNTING

4

6634895

SEAL

5

6651241

WASHER back-up

6

6651240

SEAL

7

7019133

SEAL

8

7019134

CUP, BEARING

9

6513280

BEARING

10

6674347

SHAFT

11

7024855

HOUSING, MOTOR

12

6685267

SHAFT

13

7019137

SEAL

14

SPACER PLATE NLA - Was 6674351 - A

15

6685268

GEROTER

16

6685269

END CAP

17

NUT NLA - Was 6674355 - A

18

6685270

BOLT

19

6634899

KEY

20

6673820

O-RING

21

1992104

PLUG

22

7024856

KIT, SEAL Ref. 4-7, 13 & 20 - Was 7028401 - D
