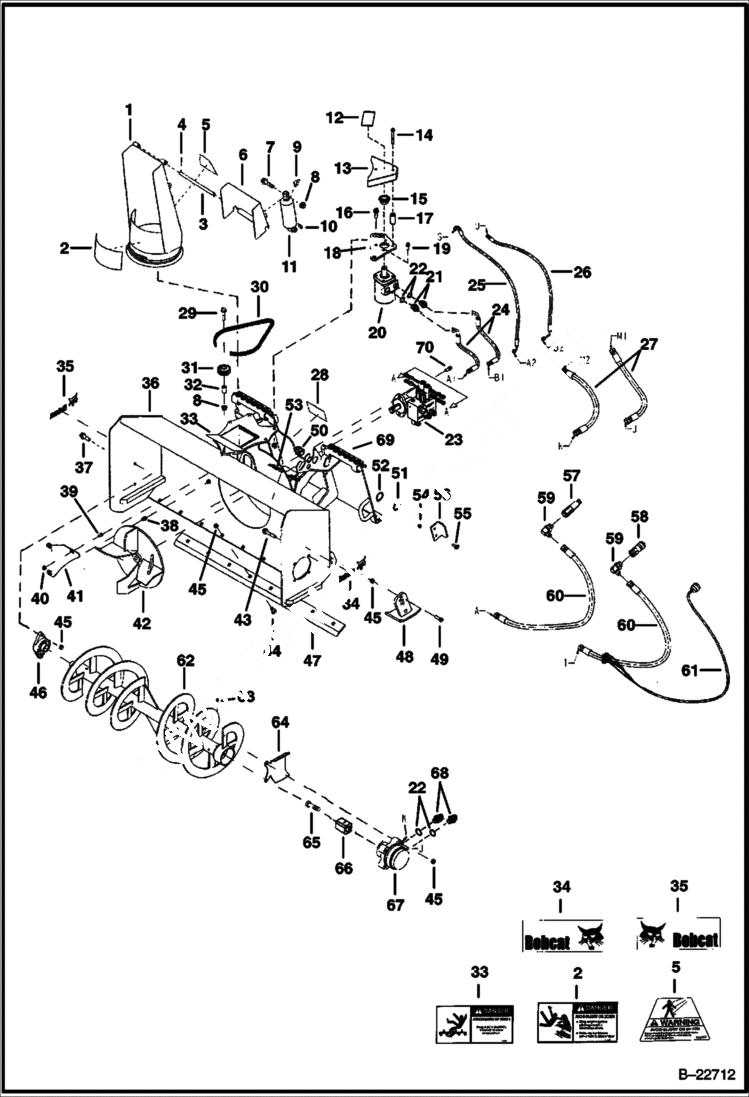

Запчасти Bobcat SNOWBLOWER SB150 SNOWBLOWER (Main Frame) (36 7134) (48 7133) Loader

1

6958798

CHUTE

2

6673384

DECAL, DANGER See Illustration SNOWBLOWER/ NA6247

2

7130138

DECAL, DANGER See Illustration SNOWBLOWER/ NA6247 - no-text

3

6958801

PIN

4

1F416

PIN Was 1F000412B - D

5

6673385

DECAL, WARNING See Illustration SNOWBLOWER/ NA6247

5

7130139

DECAL, WARNING See Illustration SNOWBLOWER/ NA6247 - no-text

6

6958804

DEFLECTOR

7

31C832

BOLT

8

83D8

NUT 5 Was 89D8 - B

9

84F3

FITTING, HYD ELBOW

10

89F3

ADAPTOR Was 89FN00003B - A

11

6673401

CYLINDER

12

6673400

DECAL, WARNING See Illustration SNOWBLOWER/ NA6247

12

7130140

DECAL, WARNING See Illustration SNOWBLOWER/ NA6247 - no-text

13

6958482

GUARD

14

31C648

BOLT Was 35C648 - B

15

6673336

SPROCKET

16

31C824

BOLT 10

17

6806986

BUSHING Was 6907356 - A

18

6958472

BRACKET

19

31C616

SCREW Was 35C616 - B

20

7188541

MOTOR, HYD See Illustration SB150 SNOWBLOWER/ NA2594A chute rotator - Was 6907666 - A

21

15KB0610

FITTING, HYD CONNECTOR

22

79K10

O RING 10

23

VALVE & MOTOR See Illustration SB150 SNOWBLOWER/ B22713

24

6958892

HOSE

25

6959015

HOSE

26

6959014

HOSE

27

6959105

HOSE SB150 x 36''

27

6958890

HOSE SB150 x 48''

28

6958607

DECAL, INSTRUCTION See Illustration SNOWBLOWER/ NA6247

28

7199919

DECAL, INSTRUCTIONS See Illustration SNOWBLOWER/ NA6247 - no-text

29

31C836

BOLT

30

6959017

CHAIN

31

6907941

GUIDE

32

6907415

BUSHING

33

7117186

DECAL, AUGER See Illustration SNOWBLOWER/ NA6247 - Was 6673383 - A

33

7130158

DECAL, AUGER See Illustration SNOWBLOWER/ NA6247 - no-text

34

6727323

DECAL, LOGO BOBCAT AND HEAD

35

6727324

DECAL, LOGO BOBCAT AND HEAD

35

7109473

DECAL, LOGO BOBCAT AND HEAD Use on both sides

36

6959024

MAIN FRAME SB150 x 36''

36

6958883

MAIN FRAME SB150 x 48''

37

31C824

BOLT 10 Was 35C824 - B

38

31C612

BOLT Was 35C612 - B

39

25GT612

BOLT

40

83D6

NUT 5 Was 89D6 - B

41

6959018

GUIDE

42

6958809

FAN

43

31C844

BOLT

44

37C820

BOLT

45

85D8

NUT, 5 Was 87D000008B - B

46

6673348

BEARING

47

6959025

EDGE, CUTTING BOLT ON BEVELED 35'' SB150 x 36''

47

6958825

EDGE, CUTTING BOLT ON BEVELED 47'' SB150 x 48''

48

6907774

SKID SHOE

49

17C828

BOLT Was 17C000824B - B

50

6673680

RECEPTACLE, TWIST-LOC

51

6664036

NUT

52

6664037

WASHER

53

6959019

DECAL SB150

54

57D6

NUT 5 Was 55D6 - B

55

31C616

SCREW Was 35C616 - B

56

6958561

STOP

57

6674688

COUPLER, FF MALE straight

58

6672960

COUPLER, FF FEMALE straight

59

17KB1012

FITTING, HYD ELBOW

60

6958891

HOSE

61

6728614

HARNESS 14-pin - For std controls only

61

7237140

HARNESS 14-pin - For SJC & std controls

62

6959027

AUGER SB150 x 36''

62

6958818

AUGER SB150 x 48''

63

10H35

FITTING, GREASE 10

64

6958827

GUARD

65

17C524

BOLT

66

6958816

BLOCK

67

6684405

MOTOR See Illustration SB150 SNOWBLOWER/ B22715 AUGER

68

15KB1010

FITTING, HYD CONNECTOR

69

6569838

STEP

70

93G816

BOLT
