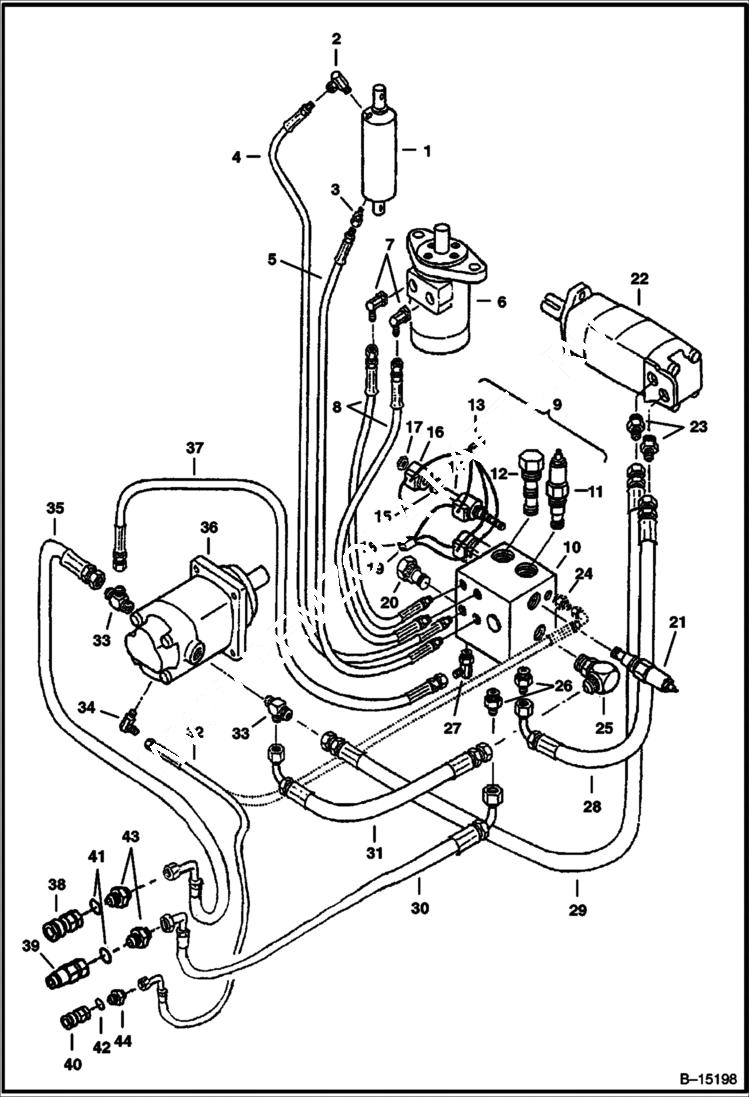

Запчасти Bobcat SNOWBLOWER 2118 & 2418 SNOWBLOWER (Hydraulic Circuitry) Loader

1

6673401

CYLINDER

2

6673402

ELBOW

3

6673405

FITTING

4

6673403

HOSE upper deflector

5

6673404

HOSE lower deflector

6

6673406

MOTOR chute rotator

6

6653269

SEAL KIT Was 6674748 - A

7

6673407

ELBOW

8

6673408

HOSE chute rotator

9

6674093

MANIFOLD ASSY W/Ref. 10 - 21 - Use W/ 14-pin harness

9

6907251

MANIFOLD ASSY W/Ref. 10 - 21 - Use W/ 7-pin harness

10

6673557

BLOCK

11

6673471

VALVE auger relief

12

6673470

VALVE flow control

13

6674092

TERMINAL ring

14

6673467

VALVE directional

15

6673466

WASHER

16

6673465

COIL

17

6671628

NUT Was 6673464 - A

18

6673468

CONNECTOR 4-way male

19

6674078

TERMINAL female

20

6673592

CHECK VALVE

21

6673472

VALVE chute relief

22

6673411

MOTOR for 9.6 or 11.9 motor package - auger - 24 CID - Eaton #104-1228-006 - Used with all loader except 863 & 873 1

22

6674746

SEAL KIT

22

6674085

MOTOR auger - 19 CID - Eaton #104-1028-006 - 863 & 873

22

6648973

KIT, SEAL Was 6674746 - A

23

6674073

ADAPTER

24

PLUG NLA - Was 6673541 - A

24

6674072

ADAPTER

25

6674074

ELBOW

26

6673538

ADAPTER

27

17KB0808

FITTING, HYD ELBOW Was 6673562 - A

28

6673504

HOSE auger to manifold - 61''(1549mm)

28

6673549

HOSE auger to manifold - 67''(1702mm)

28

6673412

HOSE auger to manifold - 73''(1854mm)

28

6673414

HOSE auger to manifold - 85''(2159mm)

29

6673508

HOSE auger to fan - 61''(1549mm)

29

6673410

HOSE auger to fan - 67''(1702mm)

29

6673505

HOSE auger to fan - 73''(1854mm)

29

6673548

HOSE auger to fan - 85''(2159mm)

30

6673413

HOSE manifold to loader

31

6673414

HOSE manifold to fan

32

6673550

HOSE case drain - to loader

32

6674071

HOSE case drain - to manifold

33

6673417

TEE

34

6673415

ELBOW

35

6673416

HOSE fan to loader

36

6673553

MOTOR fan - 6.2 CID - Eaton #105-1072-006 - 863 & 873

36

6673507

MOTOR fan - 8.0 CID - Eaton #105-1073-006 - 843H, 753H & 864G

36

6673418

MOTOR fan - 9.6 CID - Eaton #105-1074-006 - 763H, 853H, 943, 953, 963 & 773G

36

6673506

MOTOR fan - 11.9 CID - Eaton #105-1075-006 - 863H, 864G & 873G

36

6648973

KIT, SEAL for all motors listed above - Was 6674746 - A

37

6673593

HOSE bypass

38

6672960

COUPLER, FF FEMALE straight

39

6674688

COUPLER, FF MALE straight - Was 6667808 - A

40

6667805

COUPLER, FF FEMALE straight

41

79K12

O RING 10

42

79K8

O RING 10

43

15K8

FITTING

44

743108

FITTING
