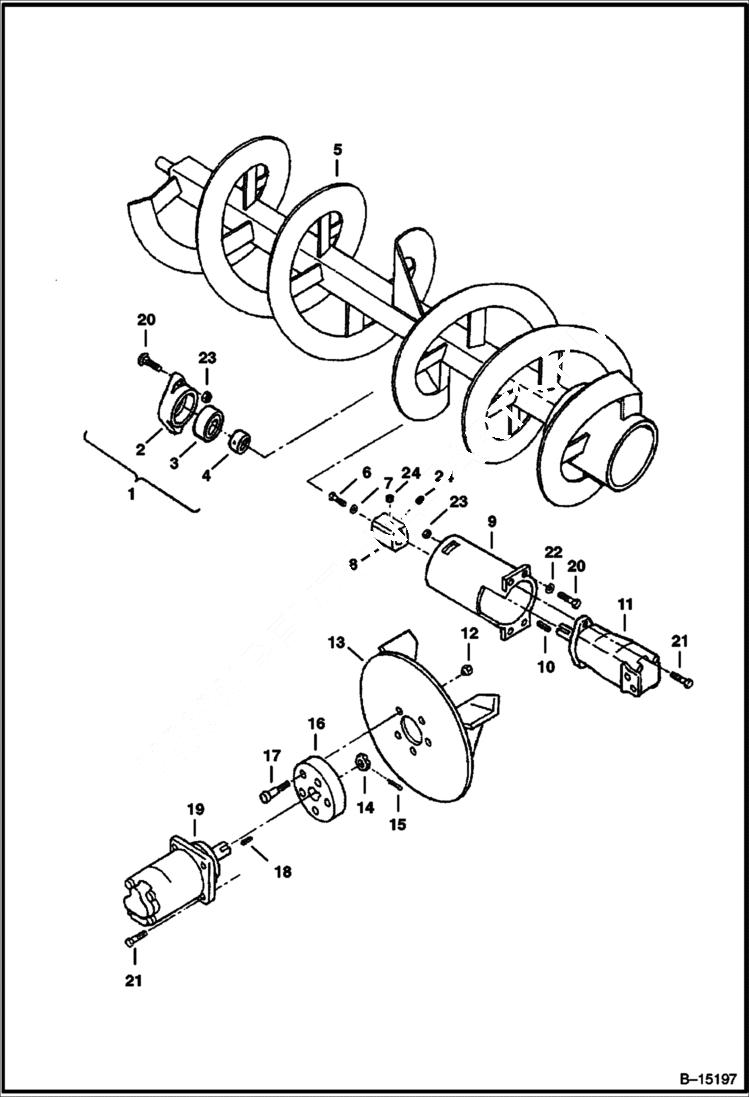

Запчасти Bobcat SNOWBLOWER 2118 & 2418 SNOWBLOWER (Fan & Auger Group) Loader

1

6674075

BEARING ASSY W/Ref. 2 - 4

2

6673434

FLANGE

3

6673449

BEARING

4

6673450

COLLAR locking

5

6673590

AUGER 61''(1549mm) - Model 2118 only

5

6673591

AUGER 67''(1702mm) - 2118 & 2418

5

6673509

AUGER 73''(1854mm) - 2118 & 2418

5

6673510

AUGER 85''(2159mm) - 2118 & 2418

6

6673435

BOLT

7

6673436

WASHER

8

6673437

COUPLER

9

HOUSING NLA - Was 6693418 - A

10

6673439

KEY

11

MOTOR See Illustration 2118 & 2418 SNOWBLOWER/ B15198 AUGER

12

6673440

NUT

13

6673567

FAN 21''(533mm) dia - Model 2118

13

6673441

FAN 24''(610mm) dia - Model 2418

14

6673442

NUT

15

6673333

KEY Was 6674076 - A

16

6673443

HUB

17

6673444

BOLT

18

6673445

KEY

19

MOTOR See Illustration 2118 & 2418 SNOWBLOWER/ B15198 FAN

20

17C824

BOLT 5

21

17C832

BOLT

22

25E21

WASHER 5

23

85D5

NUT 5

24

15G604

SCREW
