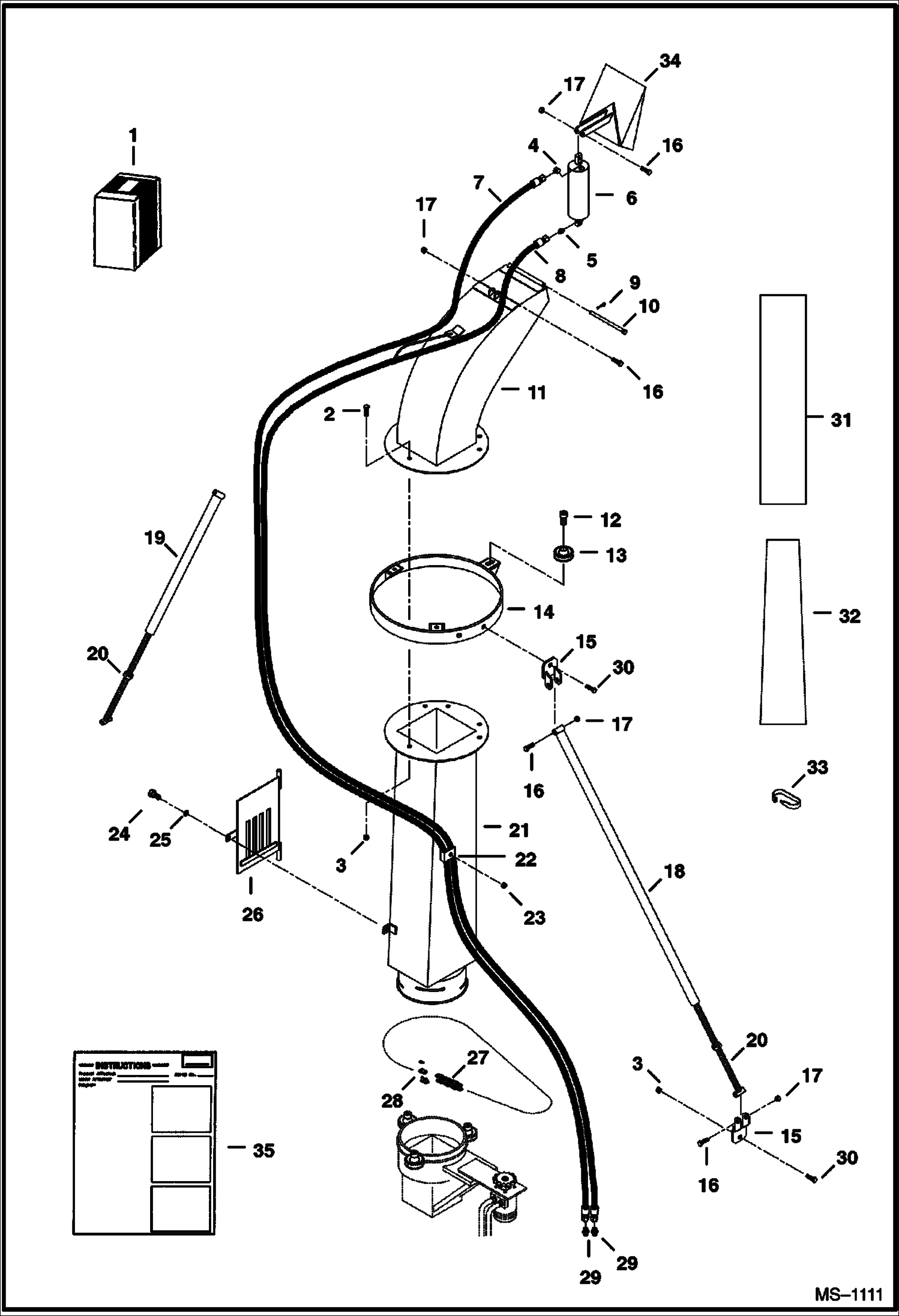

Запчасти Bobcat SNOWBLOWER 2118 & 2418 SNOWBLOWER (Truck Loading Chute) Loader

1

KIT SALES - Truck loading chute - W/Ref. 2 - 35 - Sales #6907115

2

17C1016

BOLT

3

87D10

NUT

4

6673402

ELBOW 45 degrees

5

6673405

FITTING straight

6

6673401

CYLINDER

7

6907289

HOSE 160 inch

8

6907290

HOSE 153 inch

9

1F416

PIN

10

6673341

HINGE PIN

11

6907275

CHUTE upper

12

6673521

BOLT

13

6673523

ROLLER

14

SUPPORT RING NLA - Was 6907276 - A

15

6907282

BRACKET

16

17C840

BOLT

17

87D8

NUT

18

6907280

BRACE 44 inch

19

6907281

BRACE 52 inch

20

6907279

ROD adjustment

21

6907277

CHUTE lower

22

6907283

CLAMP

23

85D6

NUT, 5 Was 87D000006B - A

24

17C616

BOLT 5

25

25E18

WASHER

26

6907278

DOOR clean out

27

6673335

CHAIN with master link

28

6673424

LINK master

29

6673537

FITTING straight

30

17C1024

BOLT

31

6907286

CHUTE LINER lower

32

6907285

CHUTE LINER upper

33

6610510

TIE 8 inch

34

6673422

DEFLECTOR

35

6901240

INSTRUCTION
