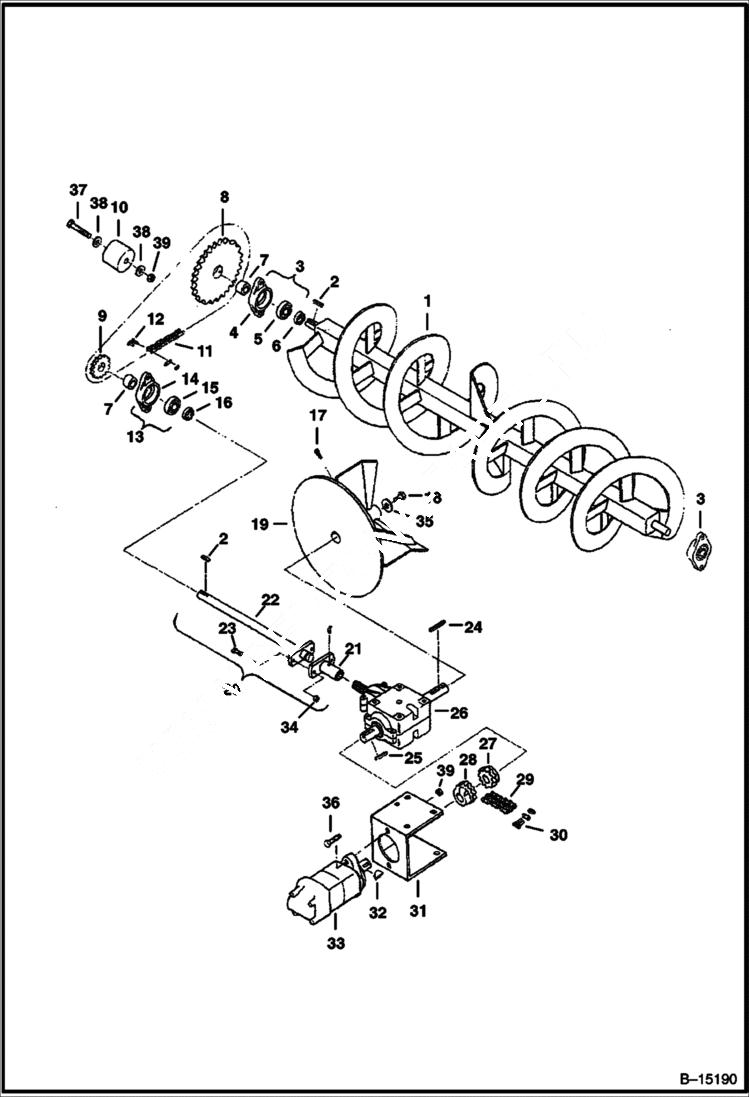

Запчасти Bobcat SNOWBLOWER 1812 SNOWBLOWER (Fan & Auger) Loader

1

6673529

AUGER 12'' x 55'' (305mm x 1397mm)

1

6673386

AUGER 12'' x 61'' (305mm x 1549mm)

1

6673500

AUGER 12'' x 67'' (305mm x 1702mm)

1

6673501

AUGER 12'' x 73'' (305mm x 1854mm)

2

6673347

KEY

3

6673348

BEARING W/Ref. 4 - 6

4

6673351

FLANGE

5

6673350

BEARING

6

6673349

COLLAR locking

7

6674090

SPACER

8

6673542

SPROCKET

9

6673391

SPROCKET

10

6673566

TIGHTENER

11

6673544

CHAIN #50 - 86 pitch - with conn. link

12

6673475

LINK connector - #50

13

6673388

BEARING ASSY W/Ref. 14 - 16

14

6673390

FLANGE

15

6673389

BEARING

16

6673476

COLLAR locking

17

6673343

SET SCREW

18

6673395

BOLT

19

6673387

FAN

20

6673532

SHAFT ASSY W/Ref. 21-23 - for 55'' auger

20

6673392

SHAFT ASSY W/Ref. 21-23 - for 61'' auger

20

6673373

SHAFT ASSY W/Ref. 21-23 - for 67'' auger

20

6673344

SHAFT ASSY W/Ref. 21-23 - for 73'' auger

21

6673345

COUPLER

22

6673533

SHAFT for 55'' auger

22

6673474

SHAFT for 61'' auger

22

6673394

SHAFT for 67'' auger

22

6673346

SHAFT for 73'' auger

23

6673393

SHEARBOLT

24

6673396

KEY 1/4' x 2-1/2''

25

6673477

KEY 1/4' x 1-1/2''

26

6673397

GEARBOX ASSY See Illustration 1812 SNOWBLOWER/ B15191

27

6673478

COUPLER half - 1-1/4'' bore

28

6673479

COUPLER half - 1'' bore

29

6673480

CHAIN coupler

30

6673481

CONNECTOR

31

6673372

MOUNT

32

KEY NLA - Was 6673482 - A

33

6673428

MOTOR See Illustration 1812 SNOWBLOWER/ B15192 4.5 CID

33

6673429

MOTOR See Illustration 1812 SNOWBLOWER/ B15192 4.9 CID

33

6907855

MOTOR See Illustration 1812 SNOWBLOWER/ B15192 5.4 CID Was 6673427 - A

33

6907855

MOTOR See Illustration 1812 SNOWBLOWER/ B15192 5.5 CID

33

6673430

MOTOR See Illustration 1812 SNOWBLOWER/ B15192 6.2 CID

34

85D5

NUT 5

35

25E17

WASHER 5

36

17C824

BOLT 5

37

17C832

BOLT

38

25E21

WASHER 5

39

85D8

NUT, 5
