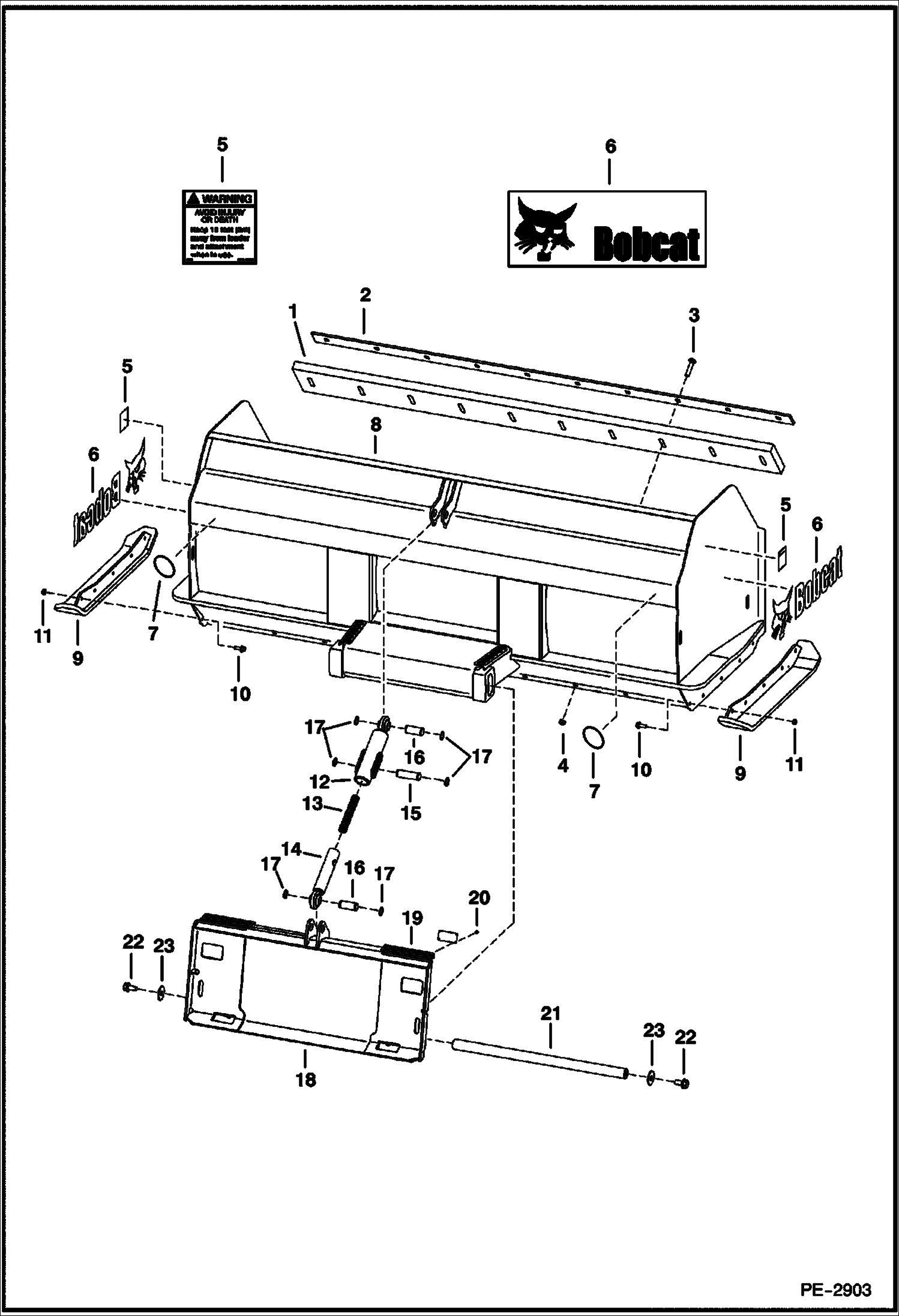

Запчасти Bobcat SNOW PUSHER SNOW PUSHER (94 A015) (120 A01T) Loader

1

7114018

CUTTING EDGE 94'' rubber - standard

1

7121433

CUTTING EDGE 94'' poly - optional

1

7116172

CUTTING EDGE 120'' rubber - standard

1

7121434

CUTTING EDGE 120'' poly - optional

2

7114043

RETAINER 94''

2

7116173

RETAINER 120''

3

37C1048

BOLT Use qty 10 for 94'', qty 13 for 120''

4

87D10

NUT Use qty 10 for 94'', qty 13 for 120''

5

6583862

DECAL, WARNING See Illustration SNOW PUSHER/ NA6239

5

7130132

DECAL, WARNING See Illustration SNOW PUSHER/ NA6239 - no-text

6

6809831

DECAL, LOGO BOBCAT AND HEAD Was 6735901 - B

7

7106627

DECAL, REFLECTIVE reflective

8

7113534

MOLDBOARD 94''

8

7116170

MOLDBOARD 120''

9

7113769

SKID SHOE

10

31C820

BOLT Was 35C820 - B

11

87D8

NUT

12

7114025

LINK

12

6688548

BALL JOINT

13

7114330

SPRING

14

7114047

TUBE

14

6688548

BALL JOINT

15

6905684

PIN

16

7114048

PIN

17

22J20

SNAP RING

18

7114020

BOBTACH

19

6569838

STEP

20

6630207

RIVET 5

21

7114024

ROD

22

31C1224

BOLT Was 35C1224B - B

23

6905689

WASHER
