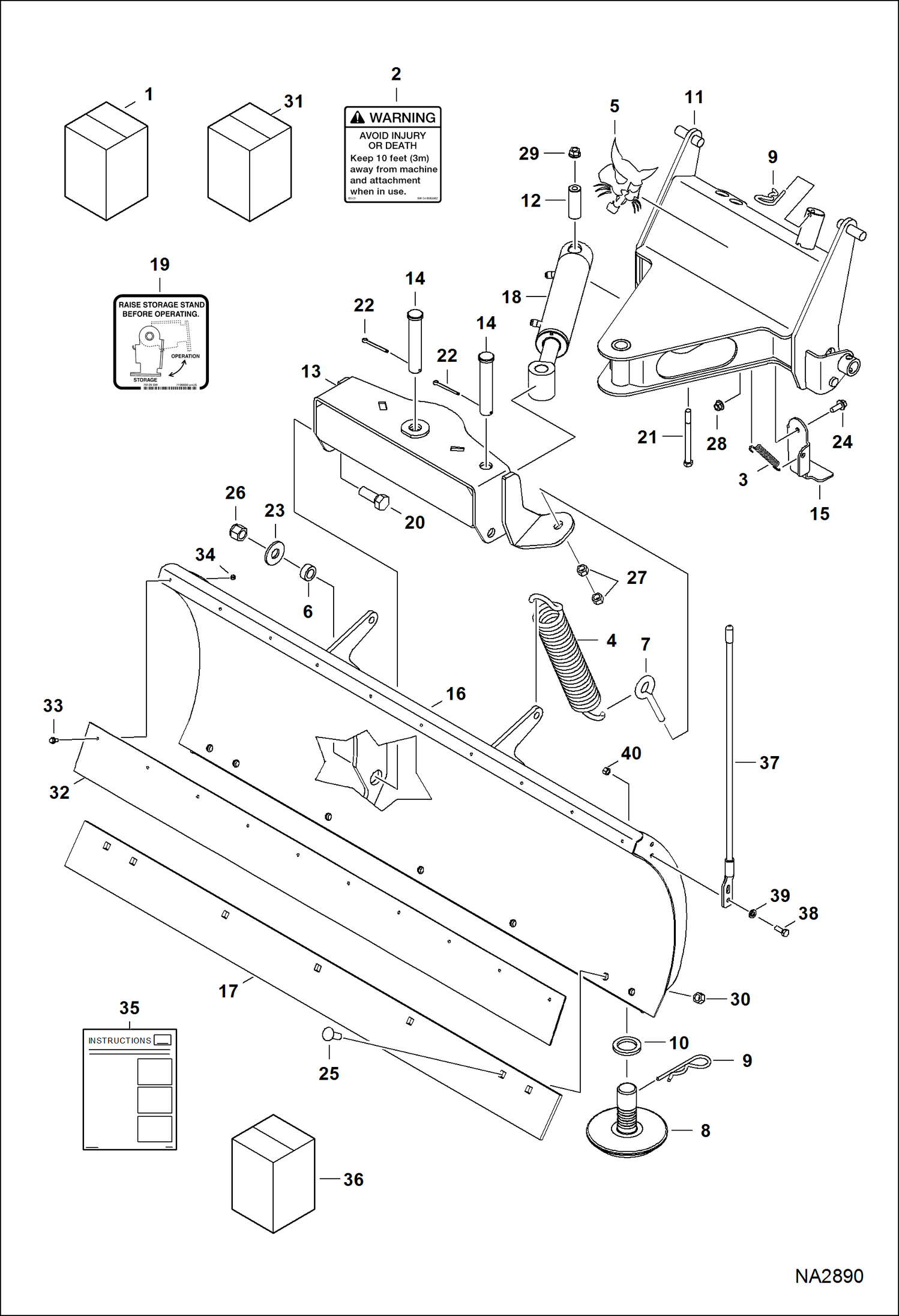

Запчасти Bobcat SNOW BLADE SNOW BLADE (Main Frame) (Front Mount) (54 APN9) (69 ANK2) (84 APNA) Компактные тракторы

1

SNOW BLADE SALES #7196554 - 54'' - Ref. 2-30

1

SNOW BLADE SALES #7193888 - 69'' - Ref. 2-30

1

SNOW BLADE SALES #7196555 - 84'' - Ref. 2-30

2

6583862

DECAL, WARNING

3

6594284

SPRING

4

6673607

SPRING

5

6700191

DECAL, LOGO BOBCAT HEAD

6

6905186

BUSHING

7

6907078

EYE BOLT

8

7131065

SHOE, SKID

9

7149279

PIN, HAIR

10

7165990

SPACER

11

7191979

FRAME, MAIN ASSY

12

7191986

BUSHING

13

7191987

PIVOT, BLADE

14

7193063

PIN

15

7193064

STAND

16

7195433

MOLDBOARD 54''

16

7191976

MOLDBOARD 69''

16

7197535

MOLDBOARD 84''

17

7195435

EDGE, CUTTING BOLT-ON 54''

17

7191973

EDGE, CUTTING BOLT-ON 69''

17

7197606

EDGE, CUTTING BOLT-ON 84''

18

CYLINDER, SWING See Illustration SNOW BLADE/ NA2893

19

7199690

DECAL, WARNING stand

20

17C1232

BOLT

21

17C780

BOLT

22

1F732

COTTER PIN

23

25E28

WASHER

24

31C616

SCREW

25

37C824

BOLT 54''

25

37C824

BOLT 69''

25

37C824

BOLT 84''

26

59D12

NUT

27

63D8

NUT

28

83D6

NUT 5

29

83D7

NUT

30

87D8

NUT 54''

30

87D8

NUT 69''

30

87D8

NUT 84''

31

7199565

KIT, DEFLECTOR SNOW Ref. 32-35

32

7199564

DEFLECTOR cut to length

33

31C512

BOLT

34

97D5

NUT

35

6990080

INSTRUCTIONS

36

6673609

KIT, INDICATOR ROD Ref. 37-40

37

INDICATOR ROD NSS - Order Ref. 36

38

17C516

BOLT

39

25E5

WASHER

40

62D5

NUT
