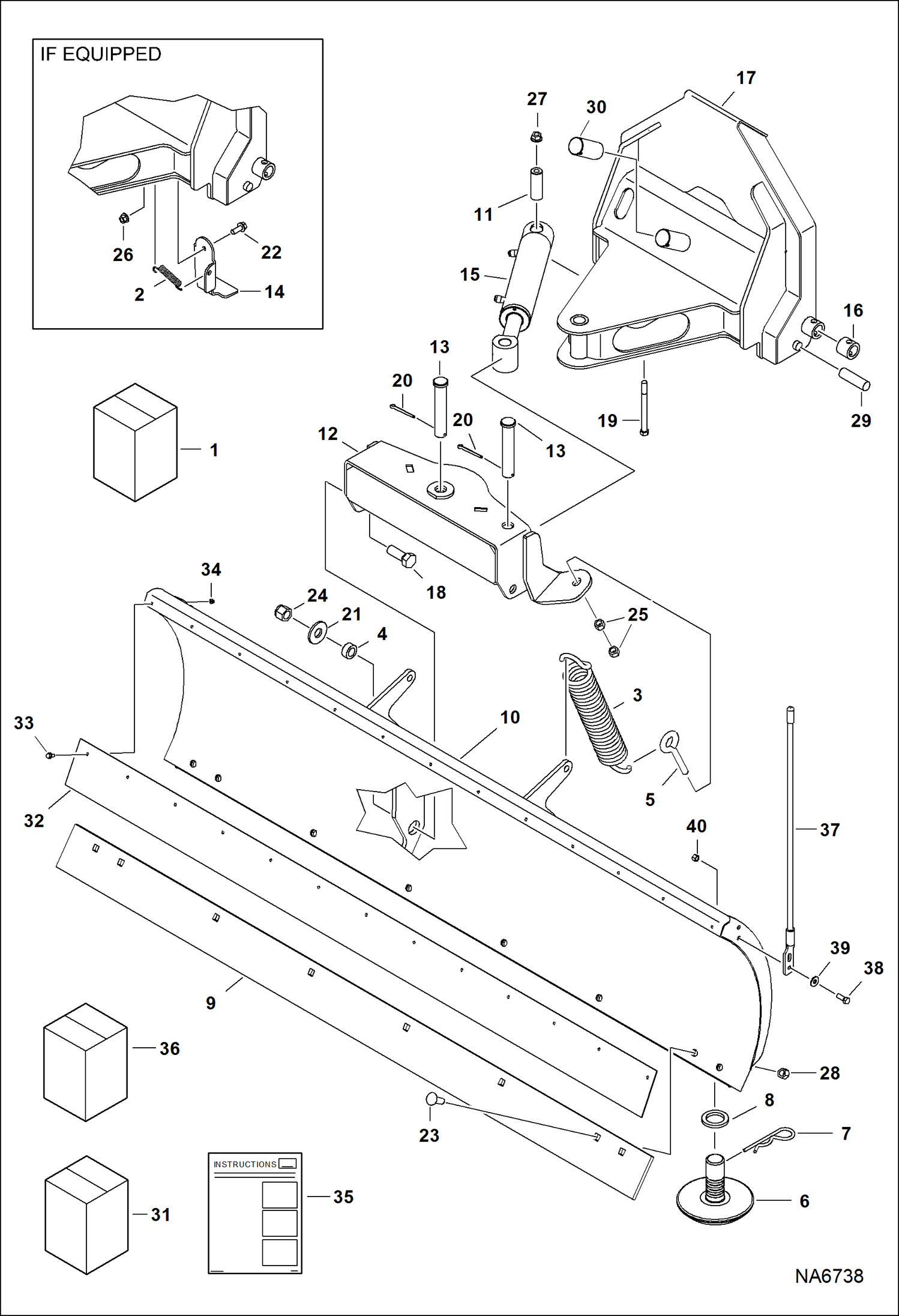

Запчасти Bobcat SNOW BLADE SNOW BLADE (Main Frame) (Front Mount) (69 AZGJ) Универсальный мини-грузовик

1

SNOW BLADE SALES #7219794 - 69'' - Ref. 2-30

2

6594284

SPRING

3

6673607

SPRING

4

6905186

BUSHING

5

6907078

EYE BOLT

6

7131065

SHOE, SKID

7

7149279

PIN, HAIR

8

7165990

SPACER

9

7191973

EDGE, CUTTING BOLT-ON 69''

10

7191976

MOLDBOARD

11

7191986

BUSHING

12

7191987

PIVOT, BLADE

13

7193063

PIN

14

7193064

STAND

15

7199231

CYLINDER, BLADE See Illustration SNOW BLADE/ NA2893

16

7183278

BUSHING

17

7205079

FRAME, MAIN ASSY

18

17C1232

BOLT

19

17C780

BOLT

20

1F732

COTTER PIN

21

25E28

WASHER

22

31C616

SCREW

23

37C824

BOLT

24

59D12

NUT

25

63D8

NUT

26

83D6

NUT 5

27

83D7

NUT

28

87D8

NUT

29

7170879

ROD, MOUNT

30

7165100

POST, STORAGE

31

7199565

KIT, DEFLECTOR SNOW Ref. 32-35

32

7199564

DEFLECTOR cut to length

33

31C512

BOLT

34

97D5

NUT

35

6990080

INSTRUCTIONS

36

6673609

KIT, INDICATOR ROD Ref. 37-40

37

INDICATOR ROD NSS - Order Ref. 35

38

17C516

BOLT

39

25E5

WASHER

40

62D5

NUT
