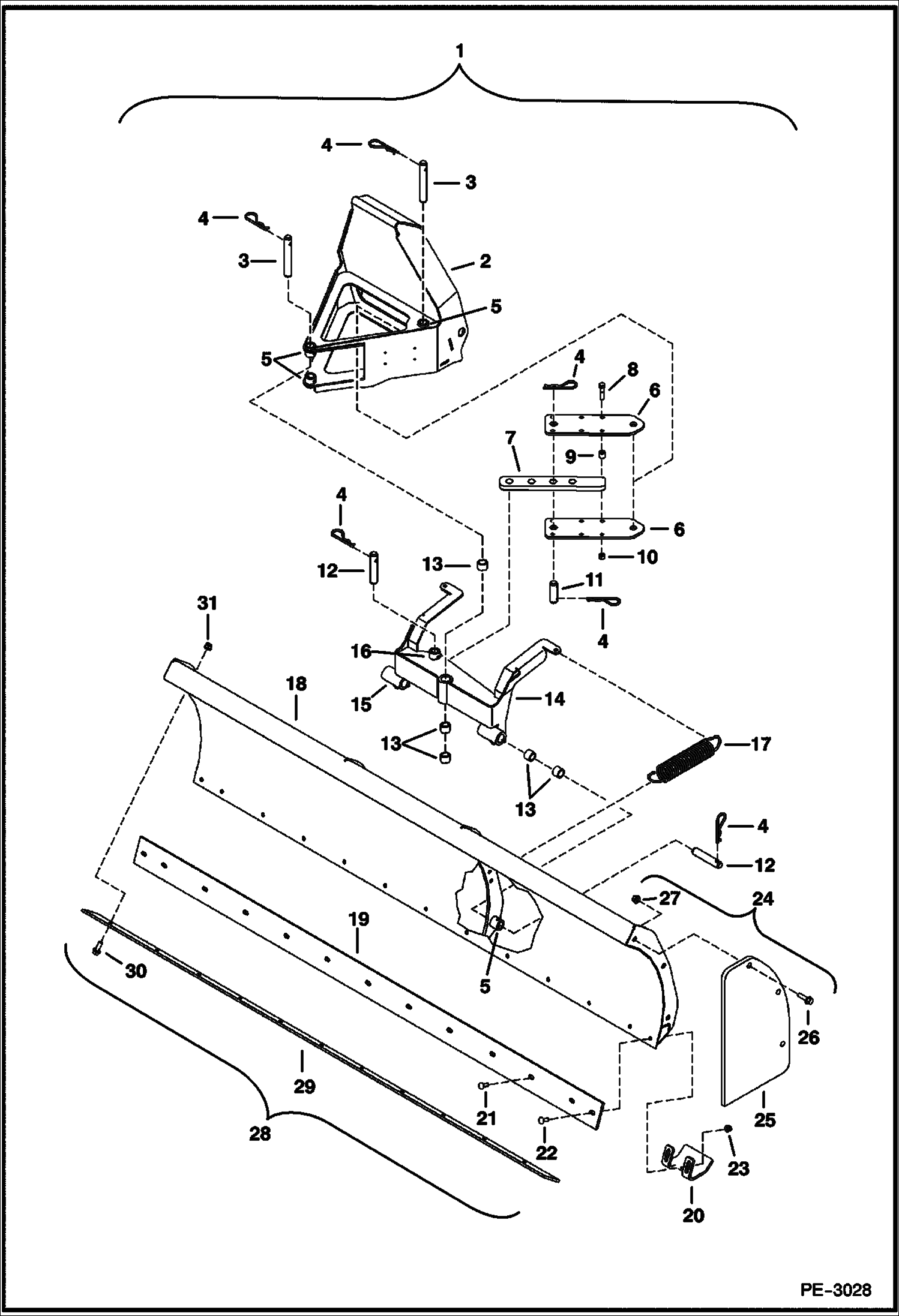

Запчасти Bobcat SNOW BLADE SNOW BLADE (Main Frame) (68 A3H6) (2300 Utility Vehicle) Универсальный мини-грузовик

1

SNOW BLADE SALES #7127341 - Ref. 2-23

2

7109349

MOUNT

3

7109359

PIN

4

6675029

PIN

5

7117672

BUSHING

6

7125055

PLATE

7

7125056

PLATE

8

17C626

BOLT

9

6810274

SPACER

10

95D6

NUT

11

7125057

PIN

12

7109360

PIN

13

6689113

BEARING

14

7109350

MOUNT

15

7109364

BUSHING

16

7117673

BUSHING

17

7113018

SPRING

18

7110599

BLADE

19

7110603

EDGE, CUTTING BOLT ON 68'' steel - standard

19

7131167

CUTTING EDGE rubber - optional

20

7111450

SKID SHOE

21

37C512

BOLT 0.75'' long

22

37C516

BOLT 1.00'' long - used with skid shoes

23

89D5

NUT

24

7129852

KIT side plate - W/Ref 25-27 - accessory - not included with standard blade

25

7123717

PLATE, SIDE

26

35C824

BOLT

27

97D8

NUT

28

7129851

KIT deflector - W/Ref 29-31 - accessory - not included with standard blade

29

7123716

DEFLECTOR

30

35C616

BOLT 5

31

97D6

NUT 10
