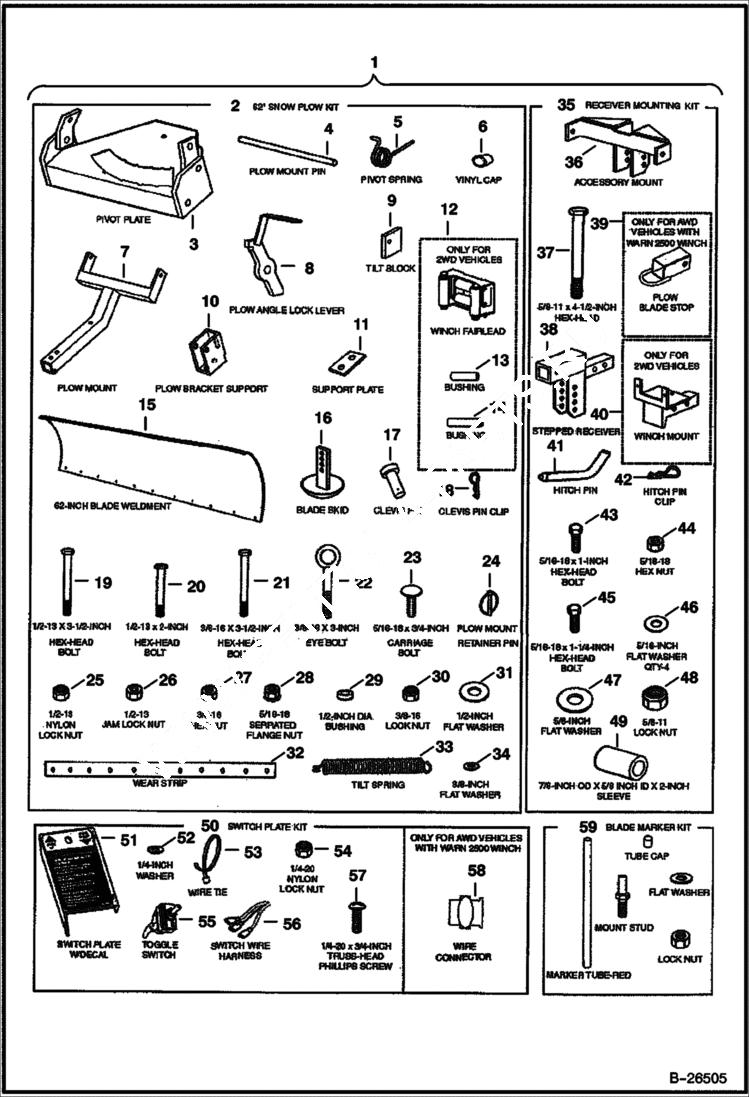

Запчасти Bobcat SNOW BLADE SNOW BLADE (62 Snow Plow Kit) (2100 & 2200 Utility Vehicle) Универсальный мини-грузовик

1

AM10895CC

KIT, SNOW PLOW 62'' Includes snow plow, mounting kit, and switch plate kit

2

AM10889CC

PLOW

3

PLATE NLA - pivot - Was AM10998CC - A

4

AM11104CC

PIN mounting

5

AM11102CC

SPRING

6

CAP NLA - Was AM11110CC - A

7

AM11103CC

MOUNT plow

8

AM11105CC

LEVER angle lock

9

AM10999CC

BLOCK tilt

10

AM11106CC

BRACKET support

11

SUPPORT PLATE purchase locally

12

AM11117CC

FAIRLEAD

13

AM11109CC

BUSHING

14

AM11108CC

BUSHING

15

AM1228901CC

BLADE 62''

16

AM11100CC

SKID

17

4F6106

PIN

18

1306637

CLIP

19

17C856

BOLT

20

17C832

BOLT

21

17C656

BOLT

22

EYE BOLT 3/8 - 16 x 3'' long - purchase locally

23

37C512

BOLT

24

6905719

CLICK PIN

25

59D8

NUT 5

26

85D8

NUT, 5

27

63D6

NUT

28

85D5

NUT 5

29

7104608

BUSHING

30

85D6

NUT, 5

31

27E8

WASHER 10

32

AM10997CC

CUTTING EDGE

33

AM11101CC

SPRING tilt - 54''

33

S09112707CC

SPRING, TILT 62''

34

27E6

WASHER 5

35

AM10888CC

MOUNTING KIT

36

AM11112CC

MOUNT

37

17C1072

BOLT

38

AM11113CC

MOUNT stepped

39

AM1229001CC

STOP plow blade

40

AM11114CC

MOUNT winch

41

AM11115CC

PIN

42

AM11116CC

PIN hitch pin

43

17C516

BOLT

44

61D5

NUT

45

17C520

BOLT 5

46

27E5

WASHER

47

27E10

WASHER

48

85D10

NUT, 5

49

SLEEVE 7/8'' O.D. x 5/8'' I.D. x 2'' long - purchase locally

50

AM10890CC

SWITCH PLATE KIT

51

AM10893CC

PLATE

52

27E4

WASHER

53

8639CC

TIE STRAP

54

59D4

NUT 5

55

AM10891CC

SWITCH toggle

56

AM10892CC

HARNESS

57

25G412

CAPSCRW10

58

101884301CC

CONNECTOR

59

AM11107CC

KIT
