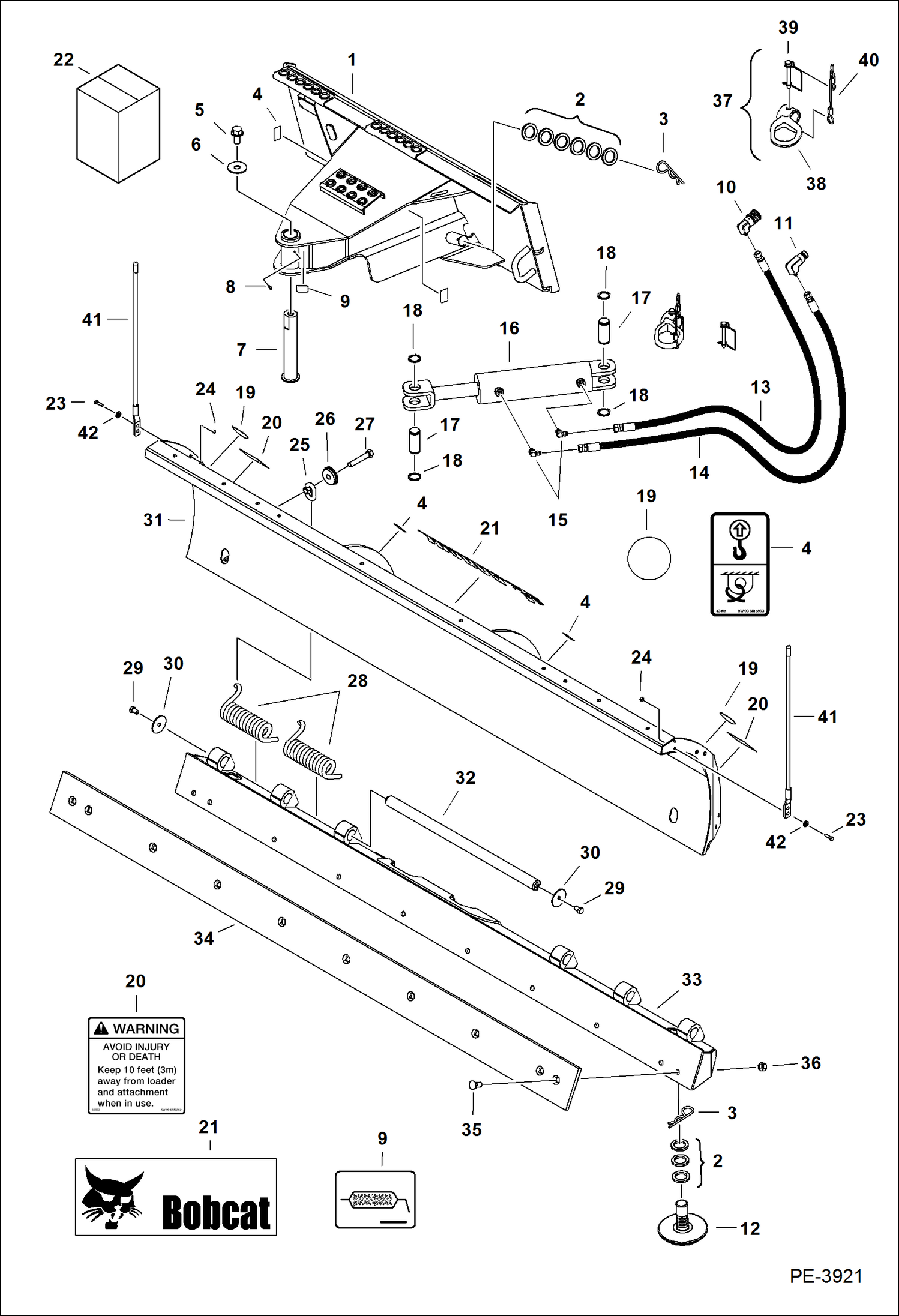

Запчасти Bobcat SNOW BLADE SNOW BLADE - HEAVY DUTY (86 A59L) (96 AD60) (108 AD5S) Loader

1

7131069

FRAME, MOUNTING

2

7165990

SPACER

3

7149279

PIN, HAIR

4

6815993

DECAL, LIFT tie down

5

31C1224

BOLT

6

6905689

WASHER

7

7161137

PIN, PIVOT

8

10H35

FITTING, GREASE 10

9

6705340

DECAL, GREASE

10

7167305

COUPLER, FEMALE

11

7167304

COUPLER, MALE

12

7131065

SHOE, SKID

13

7171019

HOSE

14

7171020

HOSE

15

17KB0606

FITTING

16

6690951

CYLINDER, HYD See Illustration SNOW BLADE - HEAVY DUTY/ NA1299

17

7160598

PIN

18

22J22

RING, SNAP

19

7106627

DECAL, REFLECTIVE reflective

20

6583862

DECAL, WARNING See Illustration SNOW BLADE - HEAVY DUTY/ NA6239B

20

7130132

DECAL, WARNING See Illustration SNOW BLADE - HEAVY DUTY/ NA6239B - no-text

21

6809831

DECAL, LOGO BOBCAT AND HEAD

22

6673609

KIT, INDICATOR ROD Ref. 23, 24, 41 & 42

23

17C516

BOLT Was 17C612 - B,D

24

62D5

NUT Was 85D6 - B,D

25

7161138

SPRING, TENSIONER assy - W/Ref 25 - 27

25

7161140

CATCH

26

7161139

WASHER

27

7135663

BOLT

28

7156204

SPRING

29

17C812

BOLT

30

7103478

WASHER

31

7131076

MOLDBOARD, 86

31

7161158

MOLDBOARD, 96

31

7161143

MOLDBOARD, 108

32

7136129

PIN, PIVOT 86'' & 96''

32

7161153

PIN, PIVOT 108''

33

7160560

EDGE, TRIP 86 86''

33

7161162

EDGE, TRIP 96 96''

33

7161150

EDGE, TRIP 108 108''

34

7135661

EDGE, CUTTING BOLT ON 86'' 86''

34

7161165

EDGE, CUTTING BOLT ON BEVELED 96'' 96''

34

7160646

EDGE, CUTTING BOLT ON BEVELED REV 108'' 108''

35

39C1024

BOLT, PLOW qty. (9) for 86'', qty. (10) for 96'', qty. (11) for 108''

36

61D10

NUT qty. (9) for 86'', qty. (10) for 96'', qty. (11) for 108''

37

7161953

GUIDE, HOSE ASSY Ref. 38-40

38

GUIDE NSS - Order Ref. 37

39

7161559

PIN, SNAPPER

40

CABLE ASSY NSS - 304,8 mm (12'') long - Order 6558309 wire rope & (2) 6558310 sleeve

40

6558309

WIRE ROPE bulk - sold per foot

40

6558310

SLEEVE

41

INDICATOR ROD NSS - Order Ref. 22

42

25E5

WASHER
