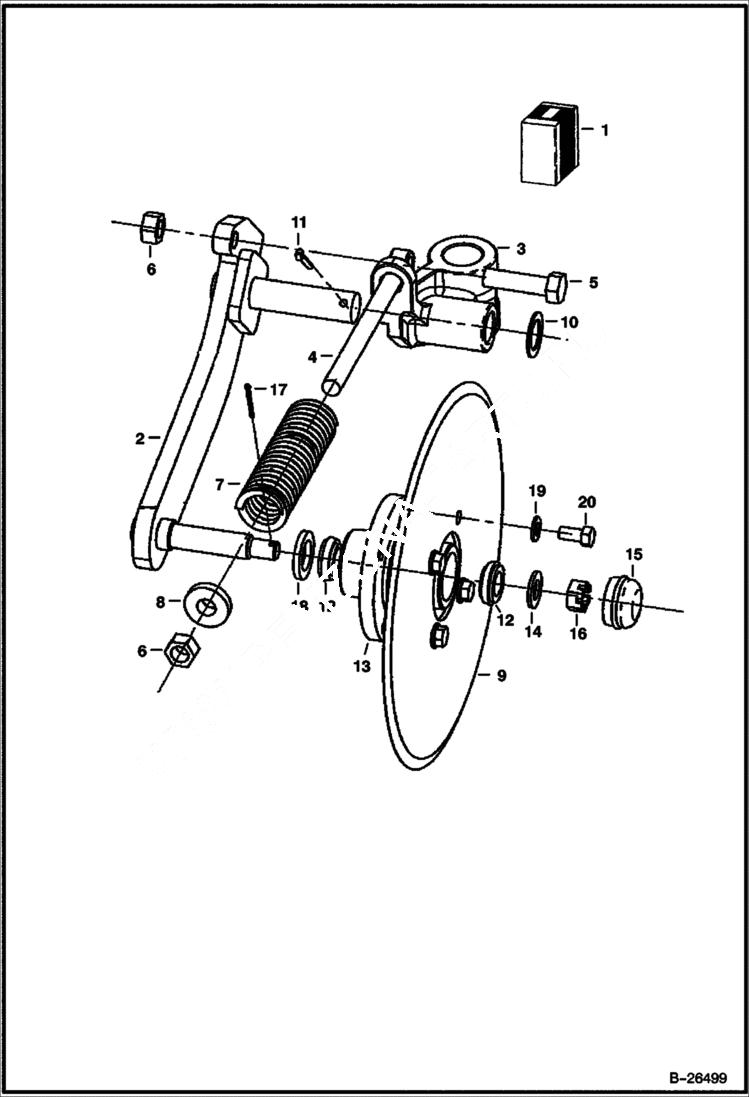

Запчасти Bobcat SILT FENCE INSTALLER SILT FENCE INSTALLER Coulter Assembly Loader

1

6692457

COULTER W/Ref. 2-20

2

6692459

BRACKET NLA W/ 3/4 inch threaded spindle

2

6692459

BRACKET W/ 5/8 inch threaded spindle

3

6692460

BRACKET

4

6692461

ROD

5

17C1244

BOLT

6

85D12

NUT, 5

7

6692462

SPRING

8

6692463

BUSHING

9

6692458

BLADE

10

6692464

WASHER

11

1F828

PIN

12

6692465

BEARING Use W/ 3/4 inch threaded spindle

13

6692466

HUB Use W/ 3/4 inch threaded spindle

13

7025578

HUB Use W/ 5/8 inch threaded spindle

14

6692467

WASHER

15

6692468

CAP Use W/ 3/4 inch threaded spindle

15

7025579

CAP, HUB Use W/ 5/8 inch threaded spindle

16

6692469

NUT Use W/ 3/4 inch threaded spindle

16

7025580

NUT Use W/ 5/8 inch threaded spindle

17

COTTERPIN NLA - Was 1F432 - A

18

6692470

SEAL Use W/ 3/4 inch threaded spindle

18

7025581

SEAL Use W/ 5/8 inch threaded spindle

19

27E8

WASHER 10

20

18C816

BOLT

21

7025576

BEARING, CONE Use W/ 5/8 inch threaded spindle

22

7025577

BEARING, CONE Use W/ 5/8 inch threaded spindle
