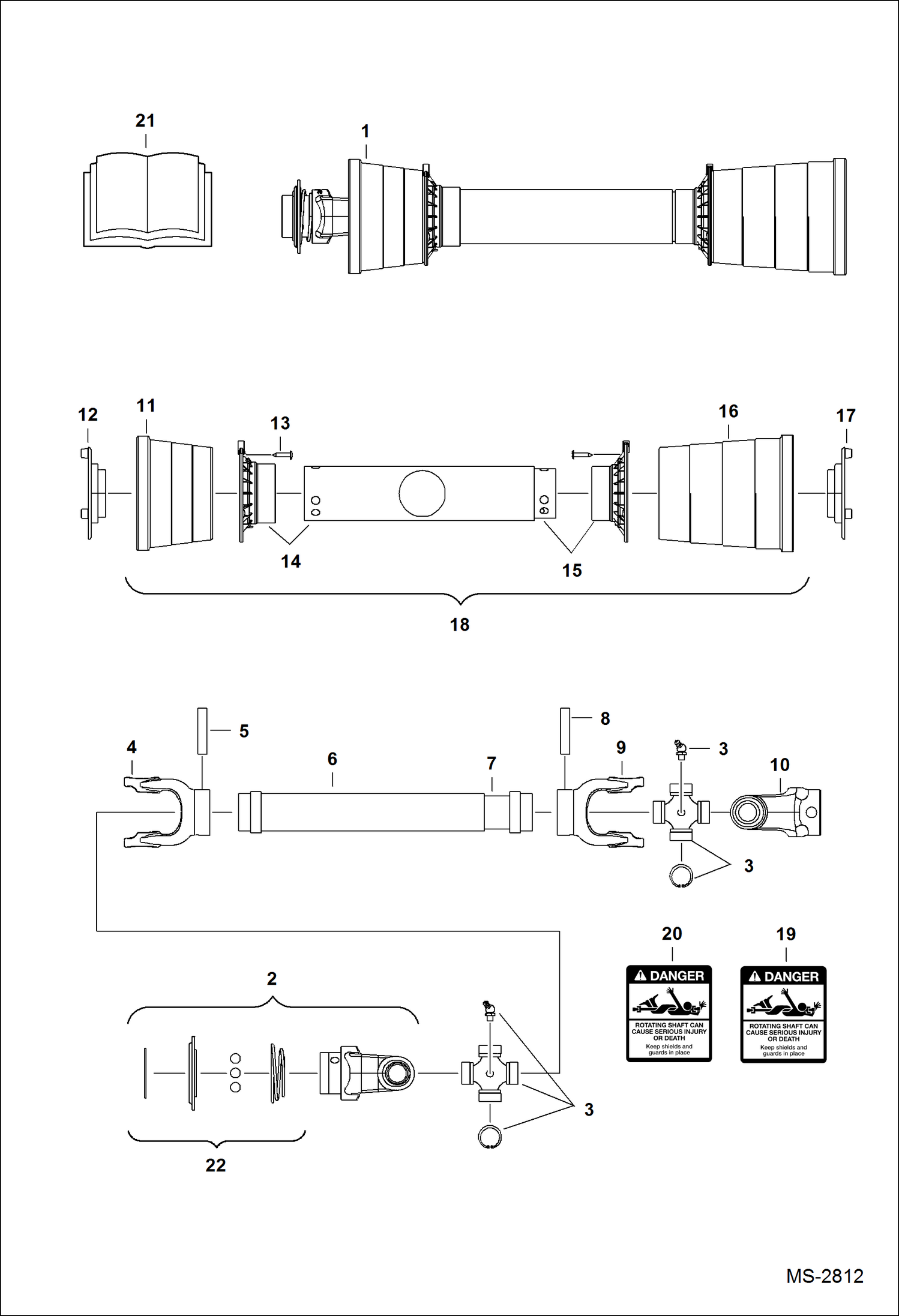

Запчасти Bobcat ROTARY CUTTER ROTARY CUTTER (PTO Shaft) (3RC60 A7RR) (3RC70 A7RS) Компактные тракторы

1

7001731

SHAFT, PTO ASSY 3RC60 - W/Ref. 2-22

1

7001732

SHAFT, PTO ASSY 3RC70 - W/Ref. 2-22

2

7001681

U-JOINT

3

7001683

CROSS, U-JOINT

4

7001684

U-JOINT

5

7001685

PIN

6

SHAFT NSS - U-joint - outer - Order Ref. 1

7

7008045

SHAFT, U-JOINT U-joint - inner - 3RC60

7

7008046

SHAFT, U-JOINT U-joint - inner - 3RC70

8

7001688

PIN

9

7001689

U-JOINT

10

7001690

U-JOINT

11

CONE, U-JOINT NSS - Order Ref. 18

12

7001692

BEARING

13

SCREW NSS - Order Ref. 18

14

CONE NSS - outer - Order Ref. 18

15

CONE NSS - inner - Order Ref. 18

16

CONE, U-JOINT NSS - inner - Order Ref. 18 - Was 7001696 - D

17

7001697

BEARING

18

7008047

SHIELD, ASSY 3RC60 - W/Ref. 11-19 & 21

18

7008048

SHIELD, ASSY 3RC70 - W/Ref. 11-19 & 21

19

7001702

DECAL, DANGER

20

7001703

DECAL, DANGER

21

7001704

MANUAL driveline instruction

22

KIT, COLLAR NSS - Order Ref. 2
