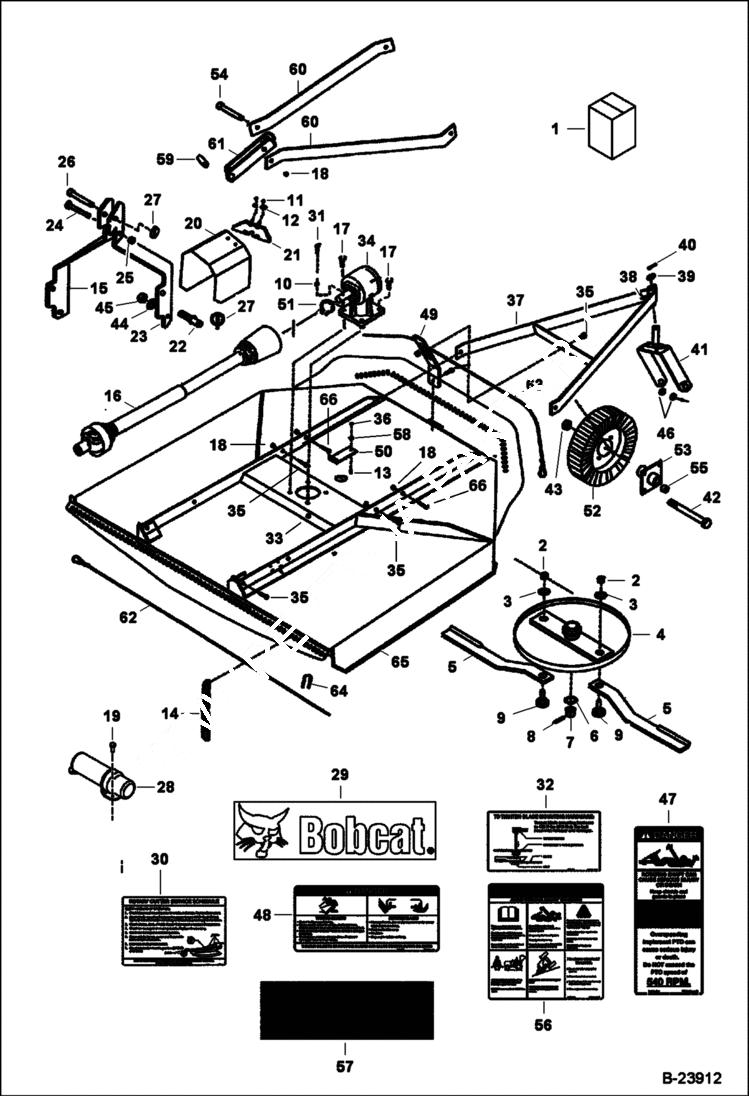

Запчасти Bobcat ROTARY CUTTER ROTARY CUTTER (Main Frame) (3RC60 A7RR) (3RC70 A7RS) Компактные тракторы

1

ROTARY CUTTER SALES #7139228 - 3RC60

1

ROTARY CUTTER SALES #7139229 - 3RC70

2

7001722

NUT jam

3

7001723

WASHER lock

4

7001724

MOUNT, BLADE blade

5

7001725

BLADE, 3RC60 3RC60

5

7001726

BLADE, 3RC70 3RC70

6

7001727

WASHER

7

7001728

NUT

8

1F640

PIN

9

7001729

BOLT

10

85D8

NUT, 5

11

85D6

NUT, 5

12

4E6

WASHER

13

17C510

BOLT

14

7001730

CHAIN qty. 102 for 3RC60, qty. 127 for 3RC70

15

7169151

MOUNT, RH 3PT Was 7140820 - C

16

7001731

SHAFT, PTO ASSY See Illustration ROTARY CUTTER/ MS2812 PTO assy - 3RC60

16

7001732

SHAFT, PTO ASSY See Illustration ROTARY CUTTER/ MS2812 PTO assy - 3RC70

17

17C1032

BOLT

18

85D10

NUT, 5

19

84G3112

BOLT 5

20

7001733

SHIELD, SHAFT shaft - Was 7001734 - B,D

21

7001734

BRACKET

22

7001735

PIN, LOWER 3PT lower 3 pt.

23

7169152

MOUNT, LH 3PT Was 7140839 - C

24

17C1264

BOLT

25

85D12

NUT, 5

26

7001736

PIN, UPPER 3PT upper 3 pt.

27

7001737

PIN, LOCK lock

28

7108147

CONTAINER, MANUAL W/ 6686517 tube

29

6809831

DECAL, LOGO BOBCAT AND HEAD

30

7139186

DECAL service

31

7001738

BOLT, SHEAR shear

32

7139187

DECAL torque nut

33

59D10

NUT

34

6696992

GEARBOX See Illustration ROTARY CUTTER/ B23887

35

17C1024

BOLT

36

85D5

NUT 5

37

7001143

MOUNT, WHEEL wheel

38

7001739

FITTING, GREASE grease

39

7001740

WASHER

40

14J3732

PIN, STRAIGHT 5

41

7001741

FORK, WHEEL wheel

42

7001742

BOLT

43

7001743

NUT

44

4E14

LOCKWSHR lock

45

64D14

NUT

46

7001858

SPACER wheel

47

7139188

DECAL, DANGER pto speed

48

6734440

DECAL, DANGER

49

7001882

BRACKET, ADJUSTING adjusting

50

7001883

COVER, ACCESS access

51

7001884

RING, SNAP snap

52

7001885

WHEEL, CASTER caster

53

7001886

HUB, WHEEL wheel

54

17C1040

BOLT

55

7001887

BUSHING

56

7139395

DECAL danger

57

7140614

DECAL reflector

58

27E5

WASHER

59

7001888

BUSHING

60

7001889

BRACKET

61

7001890

LINK, CENTER center

62

7001891

CABLE, FRONT 3RC60 front - 3RC60

62

7001892

CABLE, FRONT 3RC70 front - 3RC70

63

7001893

CABLE, REAR 3RC60 rear - 3RC60

63

7001894

CABLE, REAR 3RC70 rear - 3RC70

64

7001895

CLAMP, CABLE cable

65

7001720

FRAME, MAIN ASSY 60''

65

7001721

FRAME, MAIN ASSY 70''

66

17C1032

BOLT Use for 60'' Rotary Cutter

66

17C1024

BOLT Use for 70'' Rotary Cutter
