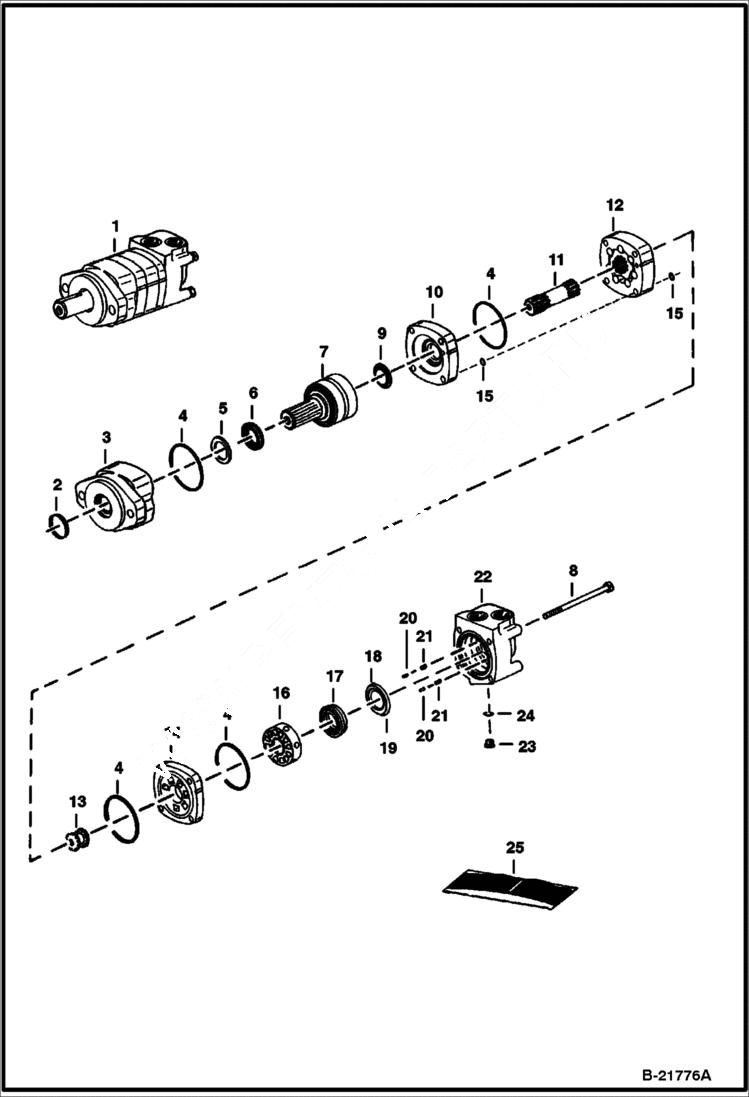

Запчасти Bobcat ROTARY CUTTER ROTARY CUTTER (Motor) (Std Flow) (60 A019) Loader

1

6688566

MOTOR W/Ref. 2-24

2

6630029

SEAL shaft - 1.28'' ID x 1.57'' OD x .13'' wide

3

6632285

HOUSING

4

6662955

SEAL Was 6689095 - A

5

6659511

BACKUP RING

6

6689096

SEAL shaft - Was 6665224 - A

7

6632345

SHAFT ASSY

8

6682552

BOLT

9

SEAL NLA - Order 6690987 - Was 1992098 - A

10

6632286

WEAR PLATE

11

6658524

SHAFT

12

6682551

GEROLER

13

1992084

DR VALVE

14

6656368

PLATE

15

O-RING NSS - Order Ref. 25

16

6632288

VALVE

17

6630027

BALANCE RING

18

1992100

SEAL inner

19

SEAL NLA - Order Ref. 25 - Was 6653300 - A

20

1992102

PIN

21

1992088

SPRING

22

6632348

HOUSING

23

1992104

PLUG W/Ref. 24

24

6664822

O-RING

25

6648973

KIT, SEAL W/Ref. 2, 4-6, 9, 15, 18, 19 & 24
