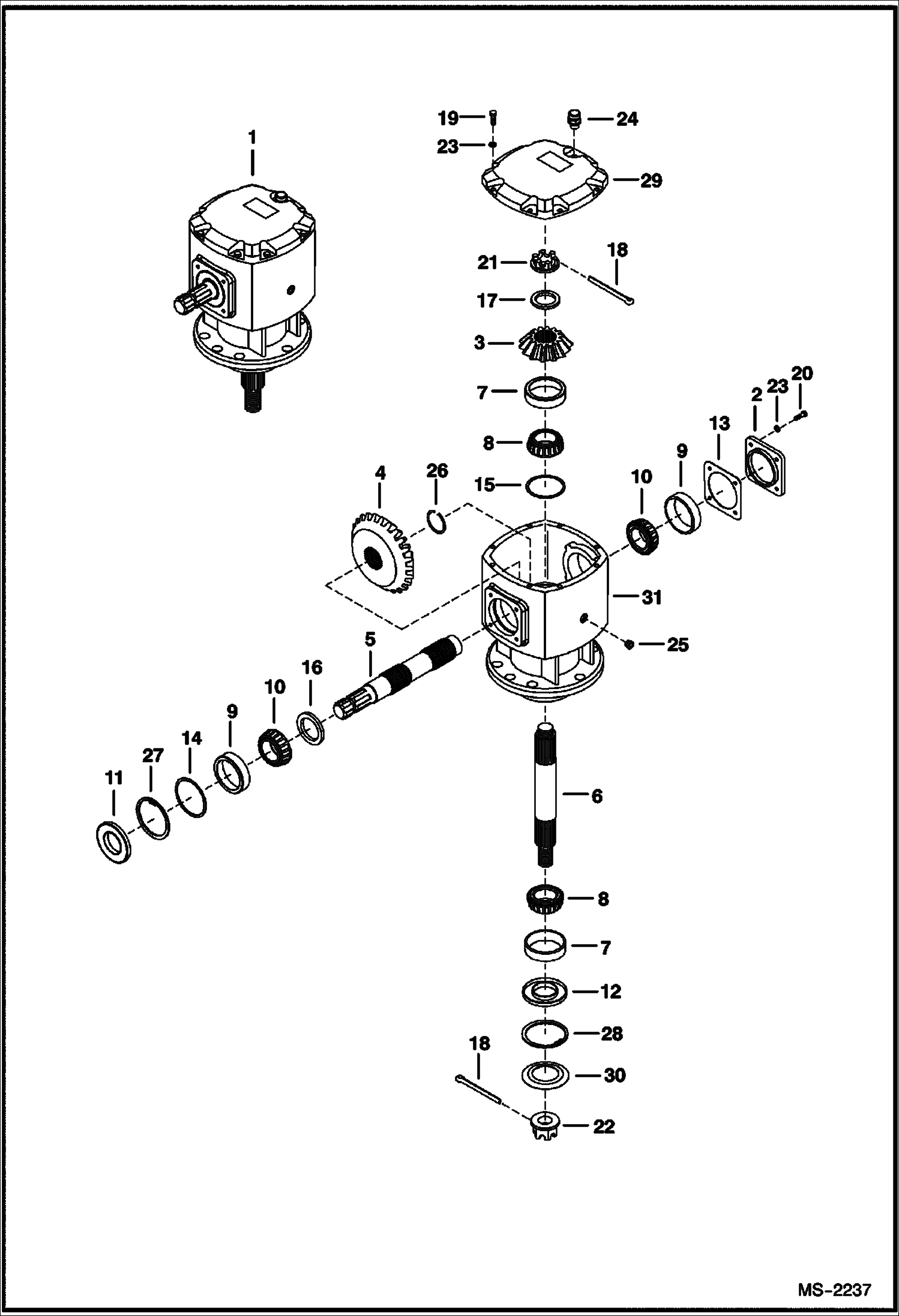

Запчасти Bobcat ROTARY CUTTER ROTARY CUTTER (Gearbox) (60 A019, A01A) (72 A008, A01B, A01C) Loader

1

6692661

DRIVE RIGHT ANGLE W/Ref. 2-31 - Was 6689061 - A

2

6690645

COVER

3

6690646

GEAR

4

6690647

GEAR

5

6690648

SHAFT input

6

6690649

SHAFT output

7

6690650

CUP bearing

8

6690651

CONE bearing

9

6690652

CUP bearing

10

6690653

CONE bearing

11

6690654

SEAL input

12

6690655

SEAL output

13

6690656

GASKET 0.2mm

13

6690657

GASKET 0.3mm

13

6690658

GASKET 0.5mm

14

6690659

SHIM input - 0.1mm

14

6690660

SHIM input - 0.2mm

14

6690661

SHIM input - 0.5mm

15

6690662

SHIM output - 0.1mm

15

6690663

SHIM output - 0.2mm

15

6690664

SHIM output - 0.5mm

16

6690665

SPACER

17

6690666

SPACER

18

6690667

PIN

19

6690668

BOLT

20

6690669

BOLT

21

6690670

NUT

22

6690671

NUT

23

6690672

WASHER

24

6672819

PLUG

25

6690673

GAUGE sight

26

6673236

RING retaining

27

6690674

RING retaining

28

6690675

RING retaining

29

6690676

COVER

30

6690677

SEAL protective

31

6690678

HOUSING
