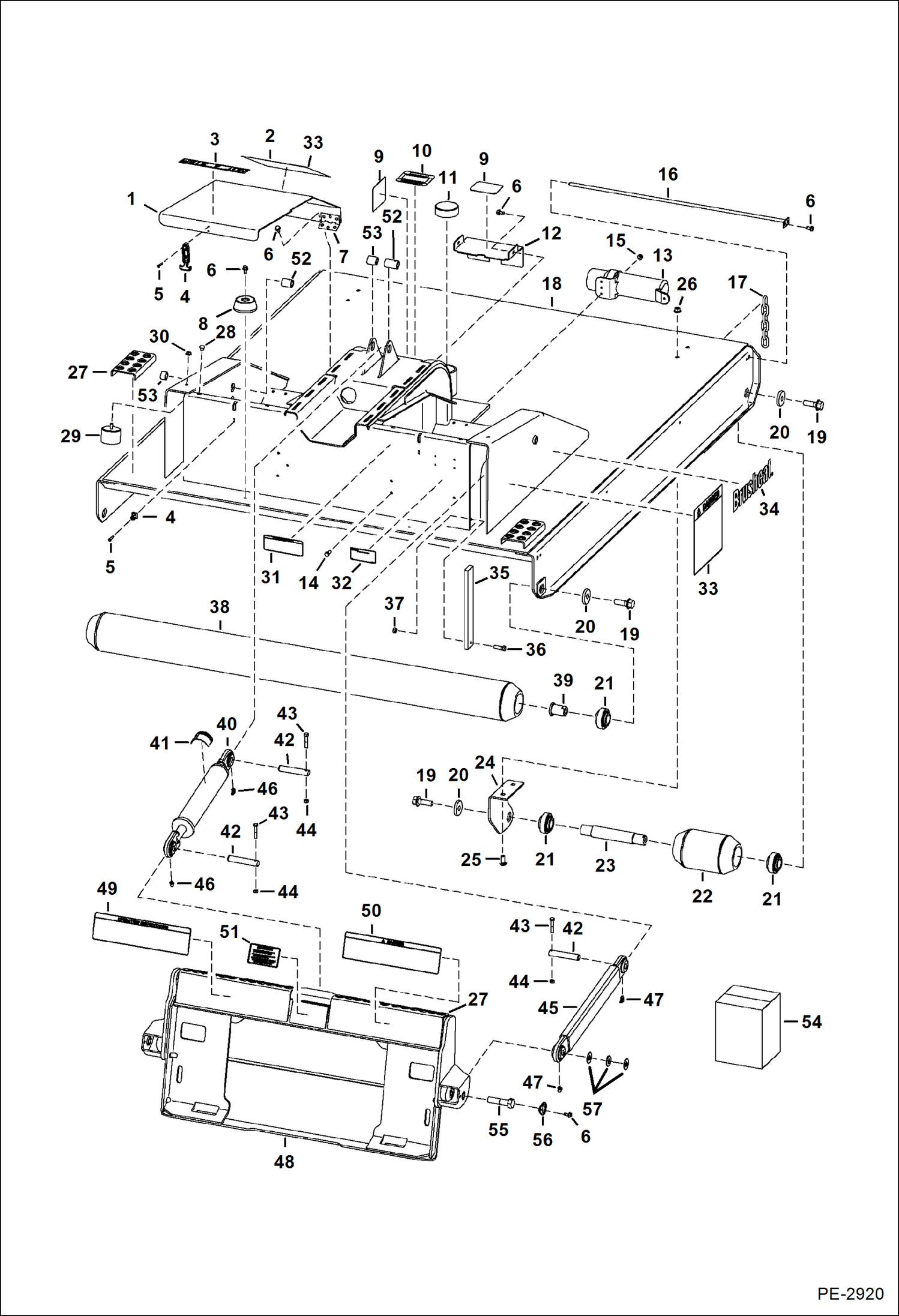

Запчасти Bobcat ROTARY CUTTER ROTARY CUTTER (Std Flow & High Flow) (72 A008, A01B, A01C) Loader

1

7108628

COVER LH

1

7108624

COVER RH

2

7116785

DECAL, SERVICE mounts under LH cover

3

6657351

DECAL, STEP See Illustration ROTARY CUTTER/ NA6229

3

7130136

DECAL, STEP See Illustration ROTARY CUTTER/ NA6229 - no-text

4

6692414

LATCH W/rivets - Was 6689056 - A

5

RIVET

6

84G3712

BOLT 5

7

6689085

HINGE

8

6562109

STOP, SWING

9

6715361

DECAL, DANGER See Illustration ROTARY CUTTER/ NA6229

9

7214475

DECAL, DANGER See Illustration ROTARY CUTTER/ NA6229 - no-text

10

6715356

DECAL, INSTRUCTIONS See Illustration ROTARY CUTTER/ NA6229 - nut torque

10

7214473

DECAL, INSTRUCTIONS See Illustration ROTARY CUTTER/ NA6229 - no-text - nut torque

11

7120423

CAP PLUG

12

7115012

SHIELD shaft

13

7108147

CONTAINER, MANUAL W/ 6686517 tube

14

17C514

BOLT

15

89D5

NUT

16

7113636

MOUNT chain

17

7114335

CHAIN deflector

18

7108471

DECK

19

31C1236

BOLT

20

6552871

WASHER

21

6671962

BEARING, BALL

22

6717479

ROLLER

23

6717625

SHAFT

24

7108684

BRACKET RH (shown)

24

7108730

BRACKET LH

25

10C820

BOLT Was 10C824 - B

26

89D8

NUT

27

6905990

STEP

28

6597572

BUMPER

29

6692924

MOUNT ISOLATOR isolator - Was 6680152 - A

30

51DM10

NUT

31

7116798

DECAL motor identification

32

DECAL NLA - patent - Was 7158126 - C

33

6715360

DECAL, DANGER See Illustration ROTARY CUTTER/ NA6229

33

7214474

DECAL, DANGER See Illustration ROTARY CUTTER/ NA6229 - no-text

34

7116786

DECAL Brushcat Logo

35

7108552

SLIDE

36

17C620

BOLT

37

85D6

NUT, 5 Was 87D000006B - A

38

7112270

ROLLER

39

7105125

MOUNT, BEARING 59,69 mm (2.35'') long

40

7136774

LINK ASSY See Illustration ROTARY CUTTER/ PE2941 Was 7108533 - A

41

7116931

DECAL See Illustration ROTARY CUTTER/ NA6229

41

7214479

DECAL, WARNING See Illustration ROTARY CUTTER/ NA6229 - no-text

42

7108554

PIN

43

17C528

BOLT

44

87D5

NUT

45

7101258

LINK, BRUSHCAT W/Ref. 47

46

12H25

FITTING grease

47

3HM6

GREASE ZERK

48

7135170

MOUNT Bob-Tach - Was 7108464 - A

49

7116788

DECAL, OPERATION See Illustration ROTARY CUTTER/ NA6229

49

7214477

DECAL, OPERATION See Illustration ROTARY CUTTER/ NA6229 - no-text

50

7116789

DECAL, DANGER See Illustration ROTARY CUTTER/ NA6229 - service

50

7214478

DECAL, DANGER See Illustration ROTARY CUTTER/ NA6229 - no-text

51

7152860

DECAL, FLOW MAX See Illustration ROTARY CUTTER/ NA6229 - Use W/std flow - Was 6814635 - C

51

7152861

DECAL, FLOW MAX See Illustration ROTARY CUTTER/ NA6229 - no-text

51

7116787

DECAL, FLOW MAX See Illustration ROTARY CUTTER/ NA6229 - Use W/high flow

51

7215572

DECAL, FLOW MAX See Illustration ROTARY CUTTER/ NA6229 - no-text

52

7108469

BUSHING

53

7115854

BUSHING

54

7120491AR

KIT translation - for std flow - spanish (Argentina) - translation kit includes safety manual, op. manual, decal kit

54

7120491BR

KIT translation - for std flow - portugese (Brazil)

54

7120492AR

KIT decal - for std flow - spanish (Argentina)

54

7120492BR

KIT decal - for std flow - portugese (Brazil)

54

7120492JP

KIT decal - for std flow - japanese

54

7120489AR

KIT translation - for high flow

54

7120489BR

KIT translation - for high flow

54

7120490AR

KIT decal - for high flow

54

7120490BR

KIT decal - for high flow

54

7120490JP

KIT decal - for high flow

54

7116385AR

KIT translation - for 72X high flow

54

7116385BR

KIT translation - for 72X high flow

54

7116763AR

KIT decal - for 72X high flow

54

7116763BR

KIT decal - for 72X high flow

54

7116763JP

KIT decal - for 72X high flow

55

18C1456

BOLT Was 48C1452 - A

56

7135169

RETAINER

57

27E14

WASHER 5 service only
