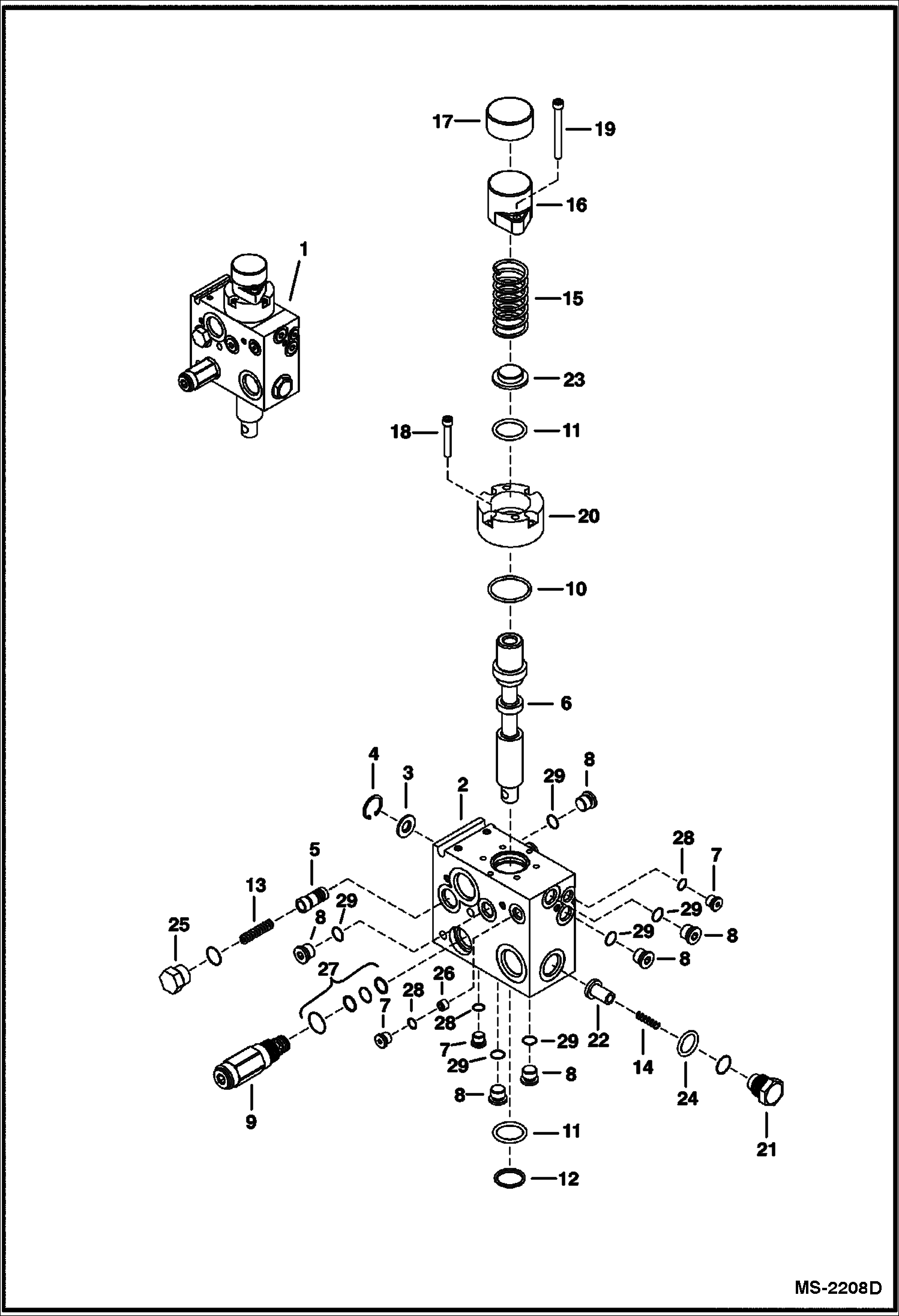

Запчасти Bobcat ROTARY CUTTER ROTARY CUTTER (Shutoff Valve) (90 4671) Loader

1

6688658

VALVE

2

BLOCK NSS - Order Ref. 1

3

6690295

ORIFICE 0.437

4

6690296

RING retaining

5

6690297

COMPENSATOR

6

6690298

SPOOL

7

6665719

PLUG W/Ref. 28

8

6669620

PLUG W/Ref. 29

9

6673219

RELIEF VALVE 2500 psi - W/Ref. 27

10

6690371

O-RING

11

6690299

O-RING

12

6690300

SEAL rod wiper

13

6690301

SPRING

14

6690302

SPRING

15

6690303

SPRING

16

6690304

COVER

17

6690305

CAP

18

6690306

BOLT

19

6690307

BOLT

20

6690308

CAP

21

6690309

CHECK VALVE

22

6690310

POPPET

23

6690311

GUIDE

24

6690312

O-RING

25

6678706

PLUG

26

6673984

ORIFICE 0.040 - Was 6675959 - B

27

6673213

KIT, SEAL Was 6664032 - A

28

O RING 10 NSS - Order Ref. 7 - Was 79K4 - B,D

29

O RING 10 NSS - Order Ref. 8 - Was 79K6 - B,D
