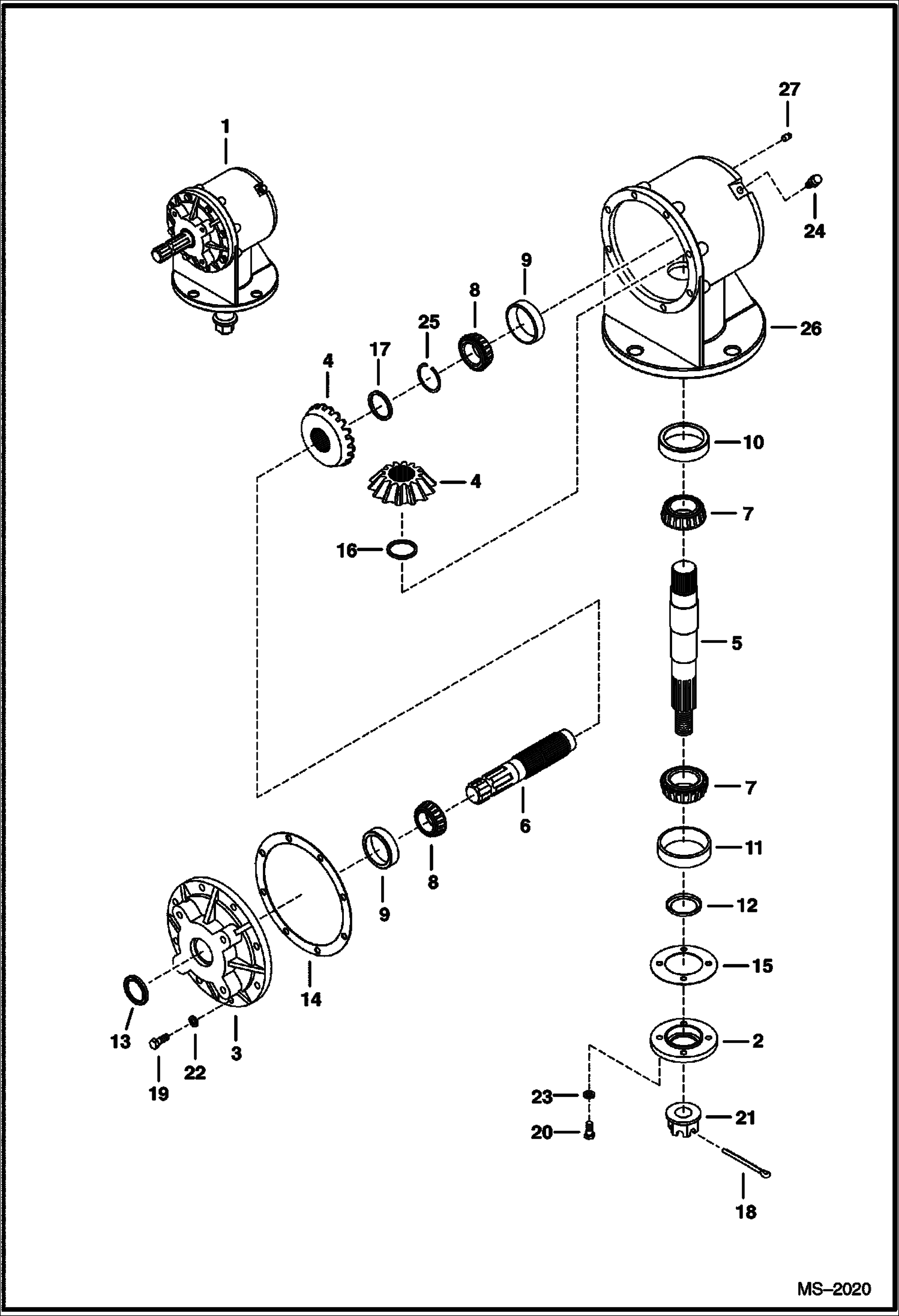

Запчасти Bobcat ROTARY CUTTER ROTARY CUTTER (Gearbox) (Single Output) (90) Loader

1

6679642

GEARBOX Ref. 2-27

2

6682826

CAP Was 6680923 - B,D

3

6680924

CAP

4

6680925

GEAR

5

6680926

SHAFT output

6

6680927

SHAFT input

7

6673228

BEARING CONE bearing

8

6680928

CONE bearing

9

6680929

CUP bearing

10

6673229

BEARING CUP bearing

11

6673230

BEARING CUP bearing

12

6673231

SEAL output - Was 6680930 - A

13

6680931

SEAL input

14

6680932

GASKET 0.30mm

14

6680933

GASKET 0.15mm

14

6673231

SEAL 1.10mm - Was 6680930 - A

15

6680935

GASKET 0.30mm

15

6680936

GASKET 0.15mm

15

6680937

GASKET 0.10mm

16

6680938

SPACER

17

6680939

SPACER

18

1F632

PIN

19

6680940

BOLT

20

6680941

BOLT

21

6672818

NUT

22

4E6

WASHER

23

4E8

WASHER

24

6672819

PLUG

25

6673236

RING retaining

26

6680922

HOUSING

27

40K2

PLUG
