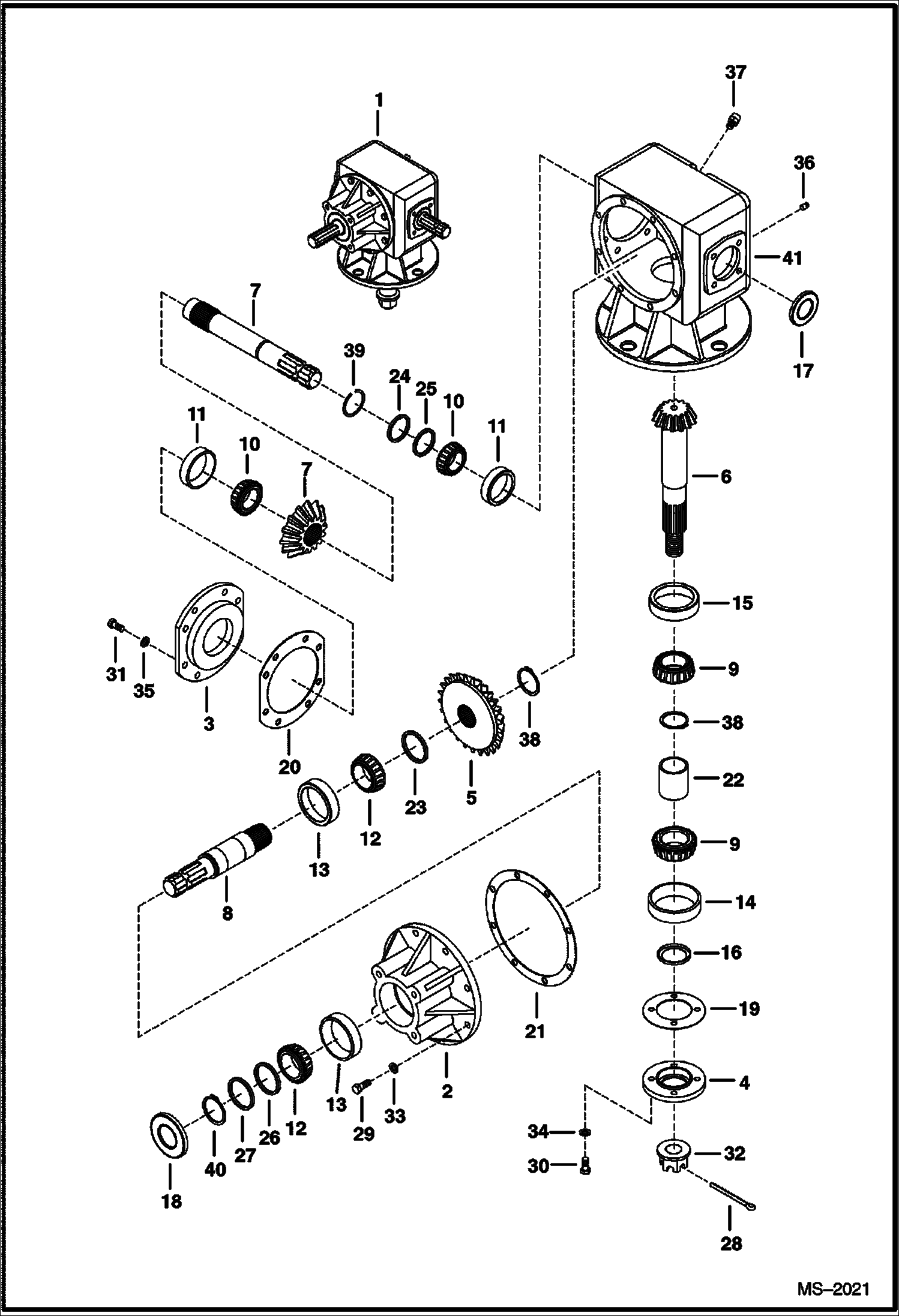

Запчасти Bobcat ROTARY CUTTER ROTARY CUTTER (Gearbox) (Dual Output) (90) Loader

1

6679643

GEARBOX Ref. 2-41

2

6682828

CAP input

3

6682827

CAP blank

4

6682826

CAP output

5

6682829

GEAR input - gear only

6

6682830

SHAFT blade output - W/gear

7

6682831

SHAFT side output - W/gear

8

6682832

SHAFT input - shaft only

9

6673228

BEARING CONE blade output shaft

10

6682833

BEARING CONE side output shaft

11

6682834

BEARING CUP side output shaft

12

6680928

CONE input shaft

13

6680929

CUP input shaft

14

6673229

BEARING CUP blade output shaft

15

6673230

BEARING CUP blade output shaft

16

6673231

SEAL output

17

6682835

SEAL side

18

6682836

SEAL input

19

6680935

GASKET output cap - 0.30mm

19

6680936

GASKET output cap - 0.15mm

19

6680937

GASKET output cap - 0.10mm

20

6682837

GASKET side - 0.50mm

20

6682838

GASKET side - 0.20mm

20

6682839

GASKET side - 0.15mm

21

6682840

GASKET input - 0.50mm

21

6682841

GASKET input - 0.20mm

21

6682842

GASKET input - 0.15mm

22

6682843

SPACER output shaft

23

6682844

SPACER input gear

24

6682845

SPACER side shaft

25

SHIM NLA - side shaft - 0.1mm - Was 6684003 - A

25

6684004

SHIM side shaft - 0.2mm

25

6684005

SHIM side shaft - 0.3mm

26

SHIM NLA - input shaft - 0.10mm - Was 6684006 - A

26

6684007

SHIM input shaft - 0.15mm

26

6684008

SHIM input shaft - 0.20mm

26

6684009

SHIM input shaft - 0.50mm

27

6684010

SPACER input gear

28

1F632

PIN

29

6680940

BOLT

30

6680941

BOLT

31

17C516

BOLT

32

6672818

NUT

33

4E6

WASHER

34

4E8

WASHER

35

4E5

WASHER

36

40K2

PLUG

37

6672819

PLUG pressure relief

38

6673236

RING retaining

39

5JM35

SNAPRING retaining

40

6682846

RING retaining

41

6682825

HOUSING
