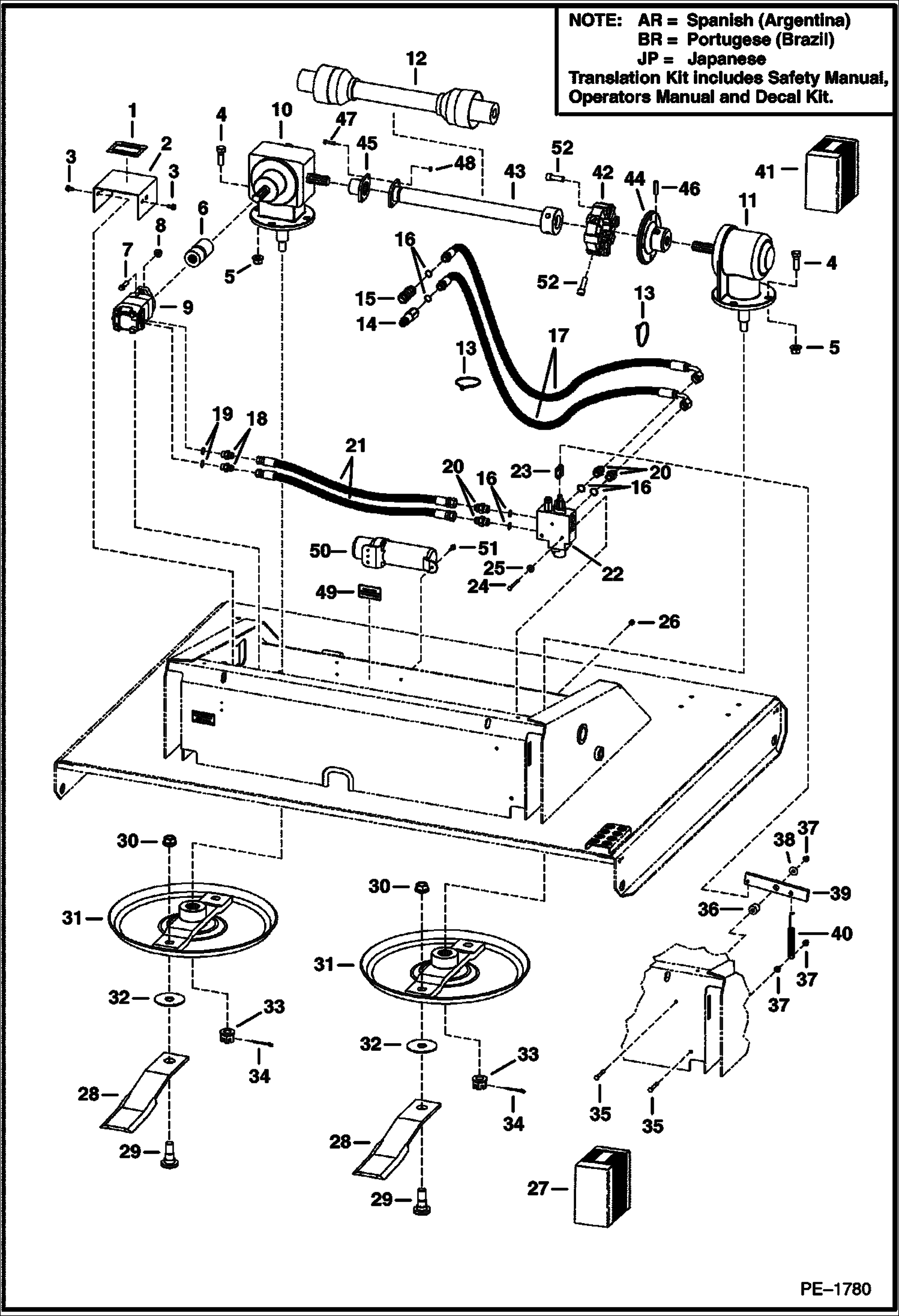

Запчасти Bobcat ROTARY CUTTER ROTARY CUTTER (90) Loader

1

6715361

DECAL, DANGER See Illustration ROTARY CUTTER/ NA6229

1

7214475

DECAL, DANGER See Illustration ROTARY CUTTER/ NA6229 - no-text

2

6714687

COVER

3

84G3712

BOLT 5

4

17C1236

BOLT

5

83D12

NUT Was 89D000012B - B

6

6728623

COUPLER

7

93G828

BOLT

8

89D8

NUT

9

6679637

MOTOR See Illustration ROTARY CUTTER/ B21776

10

6679643

GEARBOX See Illustration ROTARY CUTTER/ MS2021

11

6679642

GEARBOX See Illustration ROTARY CUTTER/ MS2020

12

SHAFT NLA - order Ref. 42-49 - Was 6732382 - A

13

6624289

STRAP, TIE

14

6674688

COUPLER, FF MALE straight - 117,3 mm (4.62'') long

14

6688454

COUPLER, FF MALE straight - high flow - 83,6 mm (3.29'') long

15

6672960

COUPLER, FF FEMALE straight - Faster #2FF112-34SAE-FL

15

6687636

COUPLER, FF FEMALE straight - high flow - Faster #3FF112-34SAE-F

16

79K12

O RING 10

17

6816335

HOSE Was 6732373 - A

18

15KB1010

FITTING, HYD CONNECTOR

19

79K10

O RING 10

20

15KB1212

FITTING, HYD CONNECTOR

21

6732374

HOSE

22

VALVE See Illustration ROTARY CUTTER/ PE2421A See BTI371 - NLA - shutoff - Was 6677568 - A

23

6715370

LINK

24

17C552

BOLT

25

25E18

WASHER

26

89D5

NUT

27

6732898

BLADE KIT W/Ref. 28-30 - (2) kits used per machine

28

BLADE NSS - Order Ref. 27

29

6813014

BOLT

30

6810800

NUT

31

6719729

MOUNT

32

6809851

WASHER

33

6672818

NUT

34

1F632

PIN

35

17C640

BOLT 5

36

6715397

MOUNT

37

89D6

NUT

38

619021

WASHER, 5

39

7106684

ARM shutoff - Was 6714717 - A

40

6715840

SPRING

41

7106299AR

TRANSLATION KIT SEE NOTE

41

7106299BR

TRANSLATION KIT SEE NOTE

41

7106300AR

DECAL KIT SEE NOTE

41

7106300BR

DECAL KIT SEE NOTE

41

7106300JP

DECAL KIT SEE NOTE

42

6686504

COUPLER, W/HDWR

43

7103017

SHAFT, DRIVE

44

7103018

HUB, COUPLER

45

7105874

BUSHING, SPLINED

46

14J5032

PIN, STRAIGHT

47

17C524

BOLT

48

85D5

NUT 5

49

7106293

DECAL, INSTRUCTIONS

50

7108147

CONTAINER, MANUAL W/ 6686517 tube

50

6686517

TUBE

51

84G3116

SCREW

52

3GM1650

BOLT
