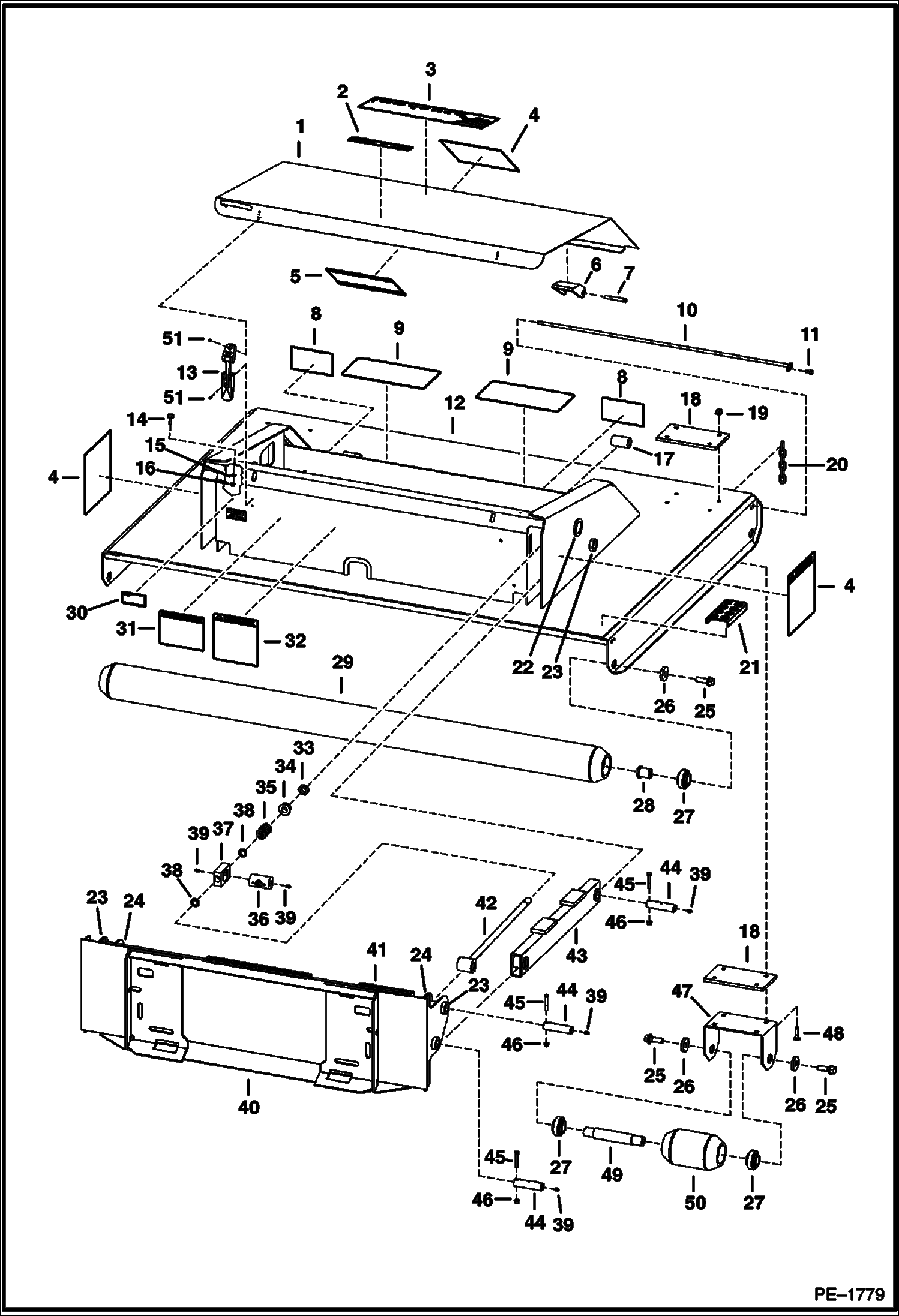

Запчасти Bobcat ROTARY CUTTER ROTARY CUTTER (90 4671) Loader

1

6726562

COVER

2

6657351

DECAL, STEP See Illustration ROTARY CUTTER/ NA6229

2

7130136

DECAL, STEP See Illustration ROTARY CUTTER/ NA6229 - no-text

3

6717587

DECAL

4

6715360

DECAL, DANGER See Illustration ROTARY CUTTER/ NA6229

4

7214474

DECAL, DANGER See Illustration ROTARY CUTTER/ NA6229 - no-text

5

6809665

DECAL service

6

6562225

HINGE

7

6564340

PIN

8

6715356

DECAL, INSTRUCTIONS See Illustration ROTARY CUTTER/ NA6229 - nut torque

8

7214473

DECAL, INSTRUCTIONS See Illustration ROTARY CUTTER/ NA6229 - no-text - nut torque

9

6577947

SAFETY TREAD 190,5 x 381 mm (7.5 x 15'')

10

6726556

ROD

11

84G3712

BOLT 5

12

6726547

HOUSING

13

6679764

LATCH, BRUSHCAT

14

6655399

BUMPER

15

25E16

WSHR

16

55D5

NUT

17

6562224

BUSHING hinge - weld on

18

6725146

SPACER

19

89D8

NUT

20

6714698

CHAIN

21

6905990

STEP

22

6714688

BUSHING weld on

23

6555989

BUSHING outer - weld on

24

6555987

BUSHING inner - weld on

25

31C1236

BOLT

26

6552871

WASHER

27

6671962

BEARING, BALL

28

6714694

MOUNT, BEARING 53,34 mm (2.10'') long

28

7105125

MOUNT, BEARING 59,69 mm (2.35'') long

29

6726554

ROLLER

30

DECAL NLA - patent - Was 6557224 - C

31

6715358

DECAL operation

32

6715359

DECAL danger

33

8D16

NUT

34

58D16

NUT

35

6594434

SPRING, COMPRESSION

36

6809668

BUSHING Also Order Ref. 38

37

6717059

SPACER

38

1657083

WIPER ROD

39

10H25

FITTING, GREASE 5

40

6816869

MOUNT Was 6726558 - A

41

6716014

STEP Was 6577917 - B

42

6726942

LINK

43

6726560

MOUNT

44

6703572

PIN, PIVOT

45

17C640

BOLT 5

46

89D6

NUT

47

6717481

BRACKET

48

10C832

BOLT

49

6717625

SHAFT

50

6717479

ROLLER

51

6630207

RIVET 5
