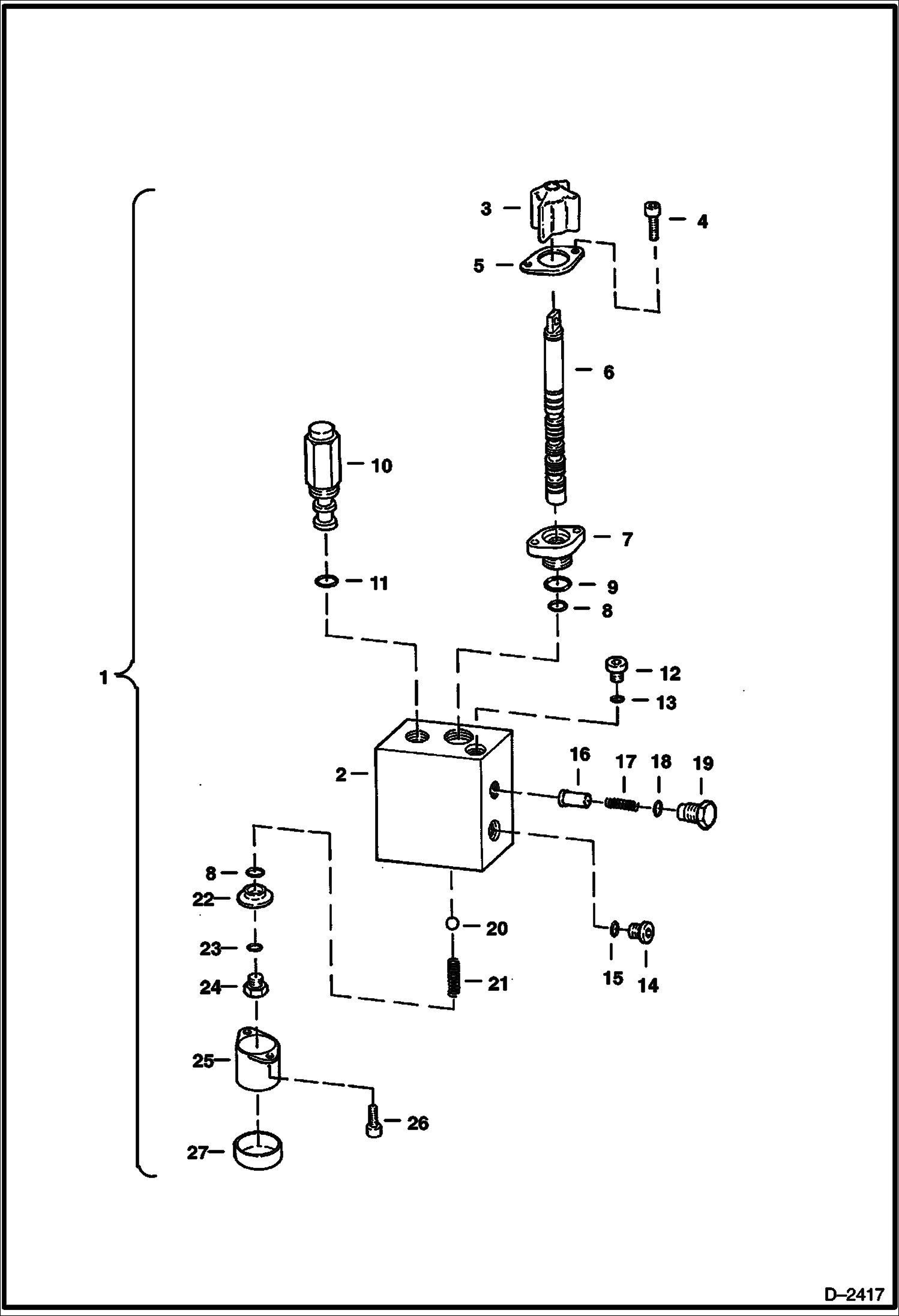

Запчасти Bobcat ROTARY CUTTER ROTARY CUTTER (Shutoff Valve) (60 467000101 - 01575) Loader

1

VALVE See BTI371 - NLA - shutoff - W/Ref. 2-27 - Was 6671671 - A

1

VALVE See BTI371 - NLA - shutoff - W/Ref 2-27 - Was 6677568 - A

2

BLOCK NLA - Was 6718418 - A

3

6587763

BOOT

4

29G412

BOLT

5

6589564

RETAINER

6

SPOOL NLA - Was 6718419 - A

7

6718420

RETAINER Was 6673217 - A

8

6674743

O-RING u-cup - Was 6673221 - A

9

1K127

O-RING 10 Was 93K127 - A

10

6673219

RELIEF VALVE

10

6673213

KIT, SEAL

11

79K10

O RING 10

12

90KV5

PLUG

13

99K6

O RING

14

90KV6

PLUG

15

99K8

O-RING

16

6592115

SEAT

17

6592117

SPRING, LOAD CHECK

18

79K8

O RING 10

19

6592116

NUT

20

10J14

BALL

21

6718423

SPRING Was 6673220 - A

22

PLATE NLA - Was 6718421 - A

23

79K6

O RING 10

24

PLUG NLA - Was 6718422 - A

25

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

26

29G416

BOLT

27

6662848

CAP
