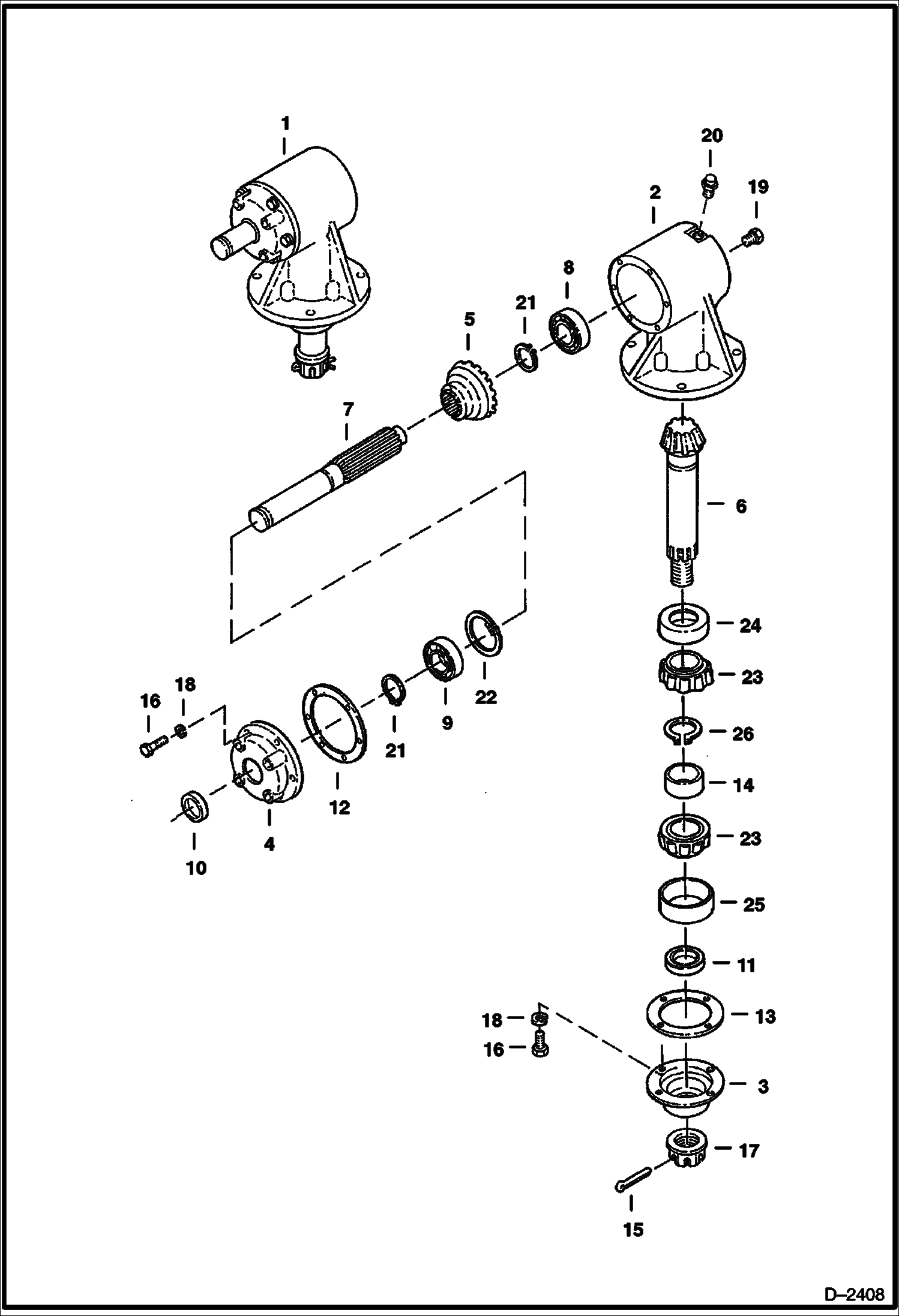

Запчасти Bobcat ROTARY CUTTER ROTARY CUTTER (Gearbox) (60 4670 & 4672) Loader

1

6672957

GEARBOX Ref. 2-26

2

6673222

HOUSING

3

6673223

FLANGE

4

6673224

FLANGE

5

6673226

GEAR

6

6673225

GEAR

7

6673227

SHAFT

8

6672807

BEARING

9

6672808

BEARING

10

6672809

SEAL

11

6673231

SEAL

12

6672811

GASKET .30mm

12

6672812

GASKET .15mm

12

6672813

GASKET .10mm

13

6673232

GASKET .30mm

13

6673233

GASKET .15mm

13

6673234

GASKET .10mm

14

6673235

SPACER

15

1F632

PIN

16

17C616

BOLT 5

17

6672818

NUT slotted

18

4E6

WASHER lock

19

40K2

PLUG pipe

20

6672819

PLUG pressure relief

21

6661652

RING retaining

22

6672820

RING retaining

23

6673228

BEARING CONE bearing

24

6673229

BEARING CUP bearing

25

6673230

BEARING CUP bearing

26

6673236

RING retaining
