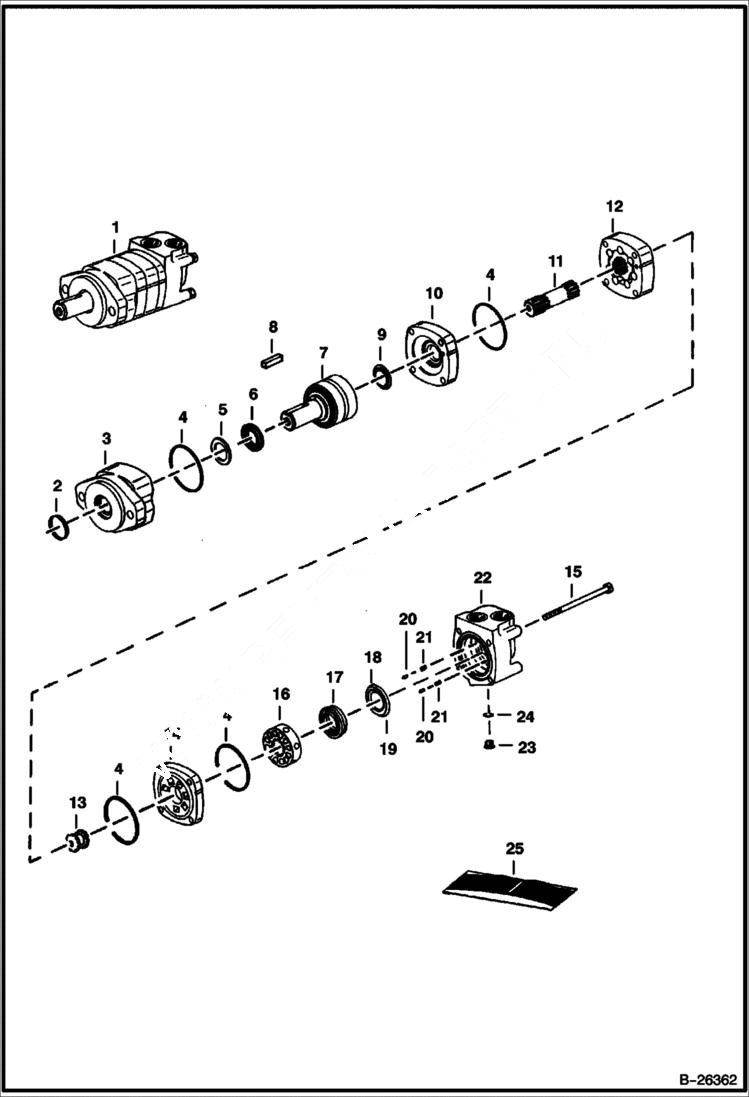

Запчасти Bobcat ROTARY CUTTER ROTARY CUTTER (Hydrostatic Motor) (60 4672) Loader

1

6684678

MOTOR, DRIVE HYD Ref. 2-25

2

6630029

SEAL shaft - 1.28'' ID x 1.57'' OD x .13'' wide

3

6632285

HOUSING

4

6662955

SEAL

5

6659511

BACKUP RING

6

6689096

SEAL shaft - Was 6665224 - A

7

6632290

SHAFT ASSY

8

6632292

KEY

9

1992098

SEAL

10

6632286

WEAR PLATE

11

6665335

SHAFT

12

6665336

GEROLER

13

1992084

DR VALVE

14

6656368

PLATE

15

6665337

BOLT

16

6632288

VALVE

17

6630027

BALANCE RING

18

1992100

SEAL inner

19

SEAL NLA - Order Ref. 25 - Was 6653300 - A

20

1992102

PIN

21

1992088

SPRING

22

6632348

HOUSING

23

1992104

PLUG W/Ref. 24

24

79K4

O RING 10

25

6648973

KIT, SEAL W/Ref. 2, 4-6, 9, 15, 18, 19 & 24
