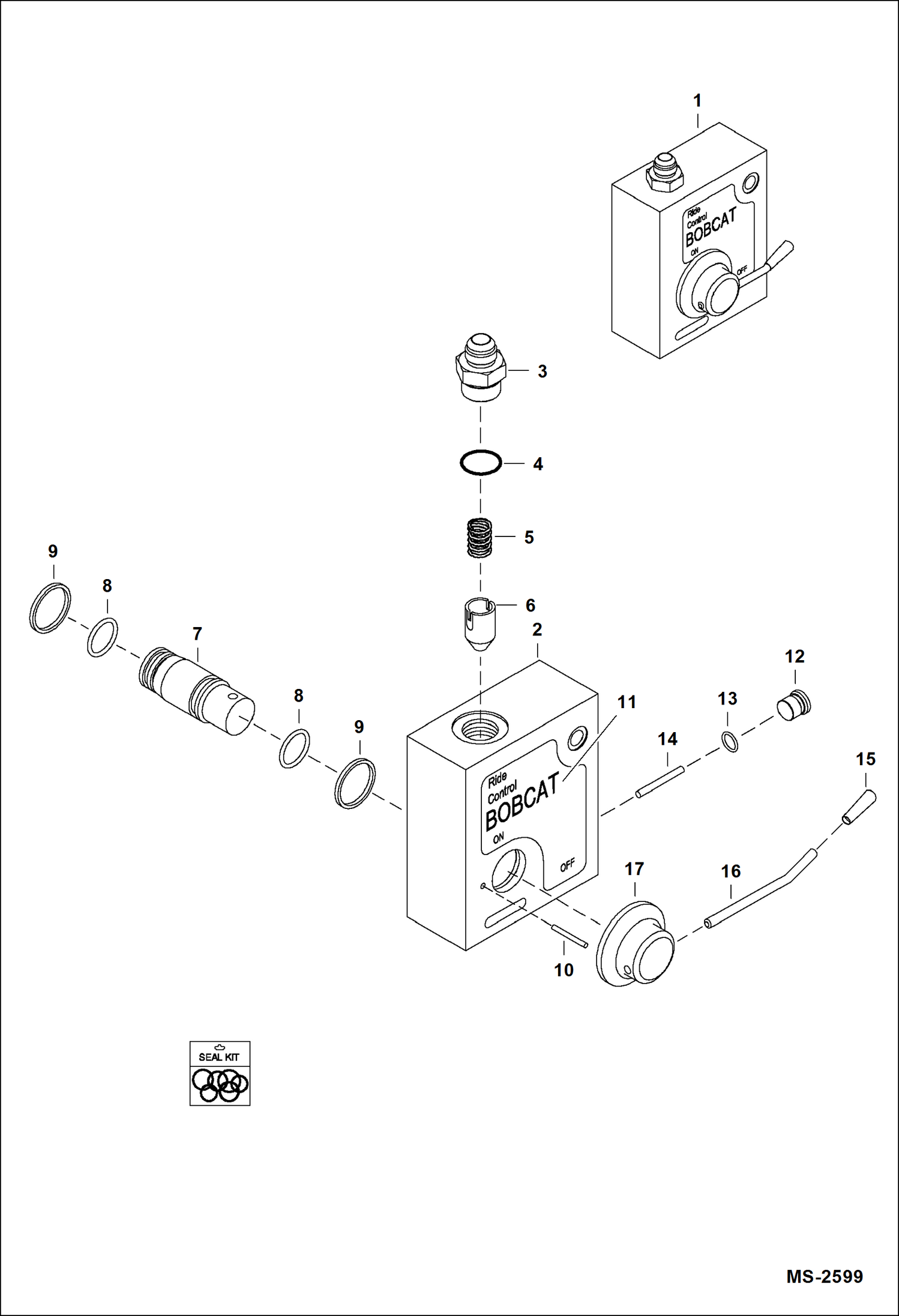

Запчасти Bobcat RIDE CONTROL KITS RIDE CONTROL KIT (Valve Assembly) (S/N 3850 & Above) Loader

1

6684700

VALVE ASSY W/Ref. 2-17

2

BLOCK NSS - Order Ref. 1

3

6687126

ADAPTER

4

O-RING NSS - Order Ref. 18

5

6684693

SPRING

6

6684692

CHECK VALVE

7

CAMSHAFT NSS - Order Ref. 1

8

SEAL NSS - Order Ref. 18

9

SEAL NSS - Order Ref. 18

10

6684699

PIN

11

DECAL, NOMENCLATURE NLA - Was 6698429 - A

12

90KN1

PLUG

13

79K2

O RING 10

14

6698431

PIN, SHAFT shaft

15

6684737

HANDLE

16

6684691

LEVER

17

6698430

PLATE, HANDLE handle

18

6684704

SEAL KIT
