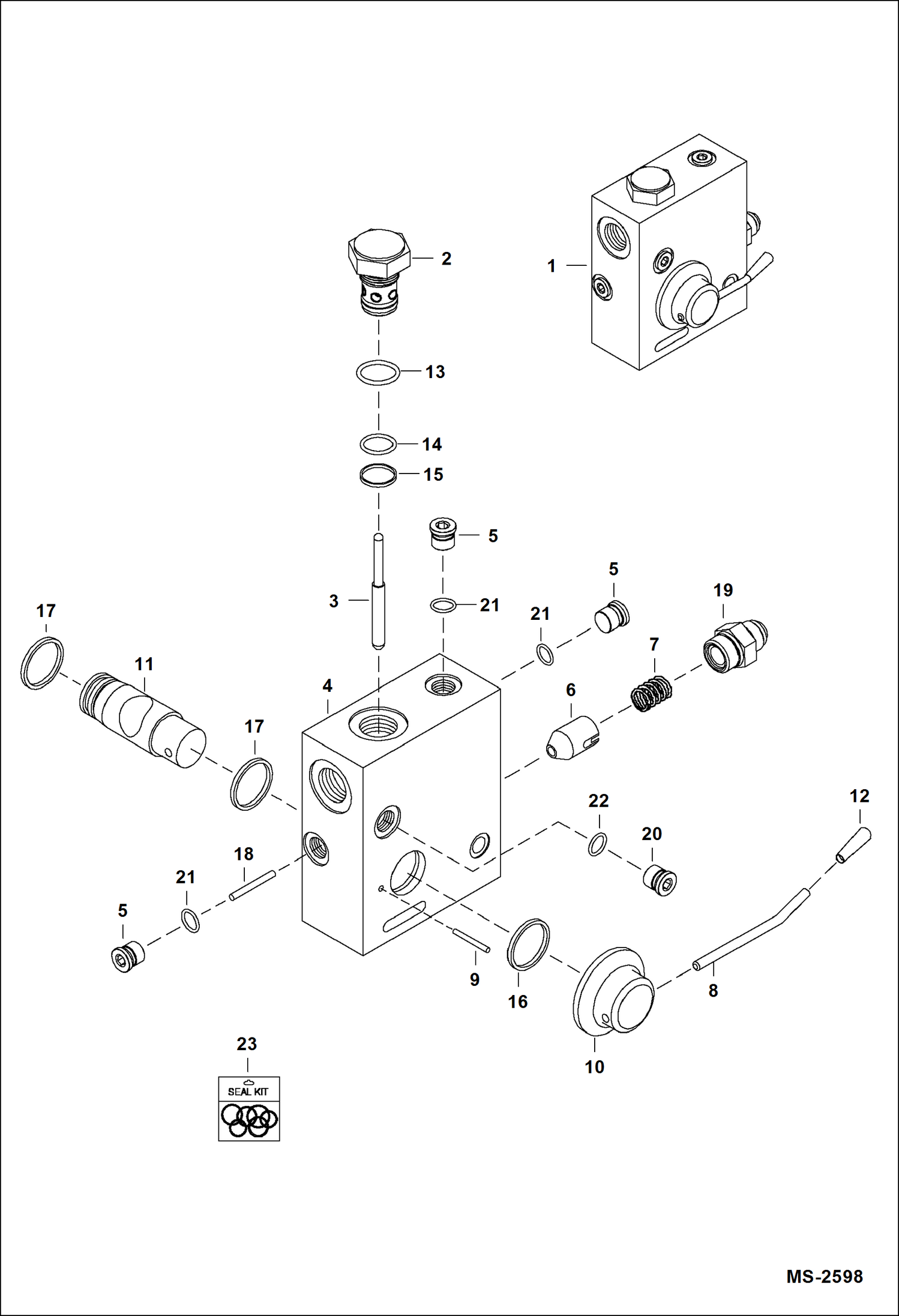

Запчасти Bobcat RIDE CONTROL KITS RIDE CONTROL KIT (Valve Assembly) (S/N 3389-3850) Loader

1

6684700

VALVE ASSY W/Ref. 2-22

2

6684695

CHECK VALVE

3

6684696

PUSH ROD

4

BLOCK NSS - block only - Order Ref. 1

5

90KN1

PLUG

5

90KN1

PLUG

6

6684692

CHECK VALVE

7

6684693

SPRING

8

6684691

LEVER

9

6684699

PIN

10

6684694

COVER PLATE

11

CAMSHAFT NSS - Order Ref. 1

12

6684737

HANDLE

13

O-RING NSS - Order Ref. 23

14

O-RING NSS - Order Ref. 23

15

BACKUP RING NSS - Order Ref. 23

16

SEAL NSS - Order Ref. 23

17

SEAL NSS - Order Ref. 23

18

6698431

PIN, SHAFT shaft

19

6687126

ADAPTER

20

47K3

PLUG

21

79K2

O RING 10

22

79K4

O RING 10

23

6684704

SEAL KIT
