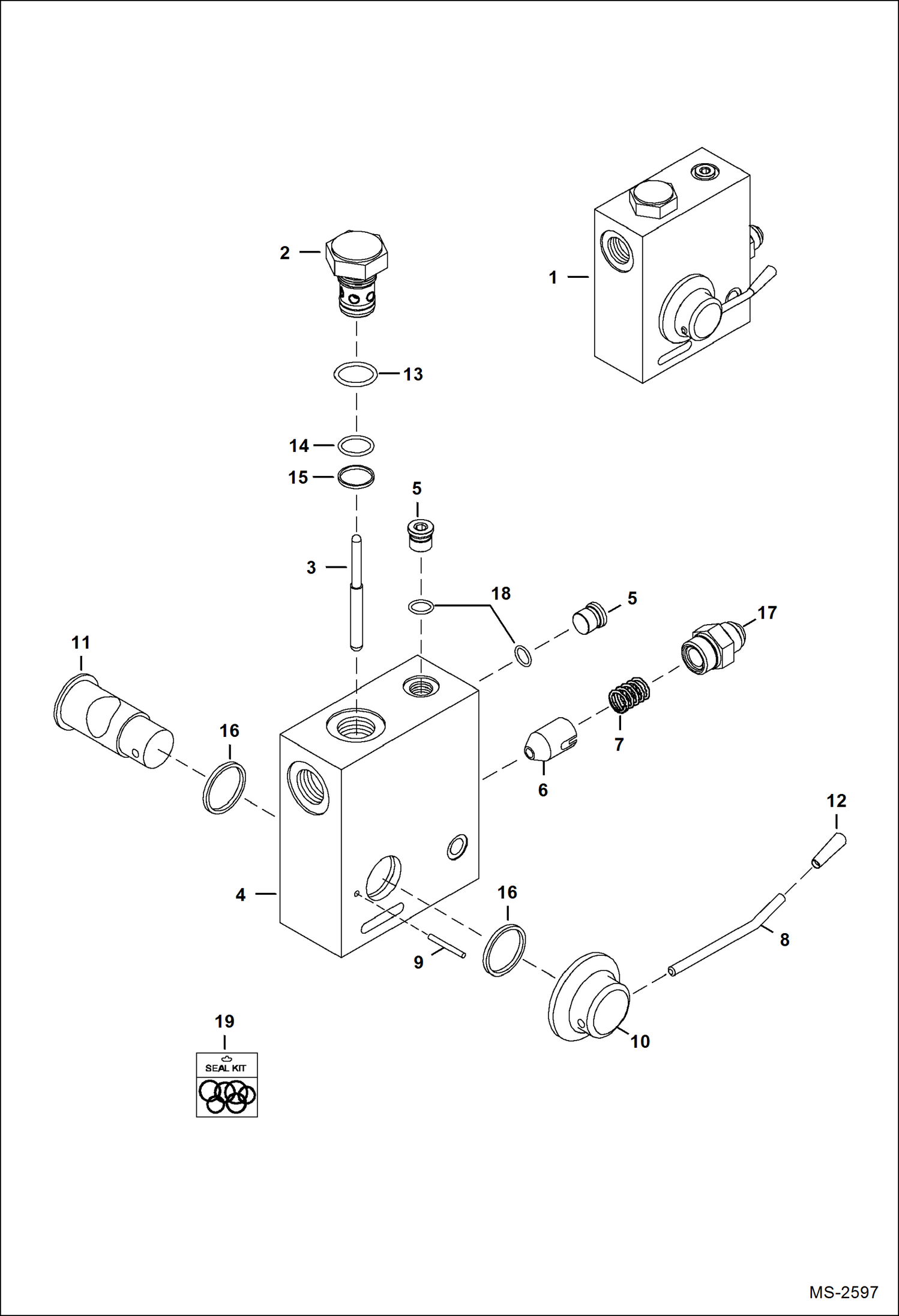

Запчасти Bobcat RIDE CONTROL KITS RIDE CONTROL KIT (Valve Assembly) (S/N 3000-3389) Loader

1

6684700

VALVE ASSY W/Ref. 2-17

2

6684695

CHECK VALVE

3

6684696

PUSH ROD

4

BLOCK NSS - block only - Order Ref. 1 - Was 6684697 - A

5

90KN1

PLUG

6

6684692

CHECK VALVE

7

6684693

SPRING

8

6684691

LEVER

9

6684699

PIN

10

6684694

COVER PLATE

11

CAMSHAFT NSS - Order Ref. 1 - Was 6684698 - A

12

6684737

HANDLE

13

O-RING NSS - Order Ref. 18

14

O-RING NSS - Order Ref. 18

15

BACK-UP RING NSS - Order Ref. 18

16

SEAL NSS - Order Ref. 18

17

6687126

ADAPTER

18

79K2

O RING 10

19

6684704

SEAL KIT W/Ref. 13-16
