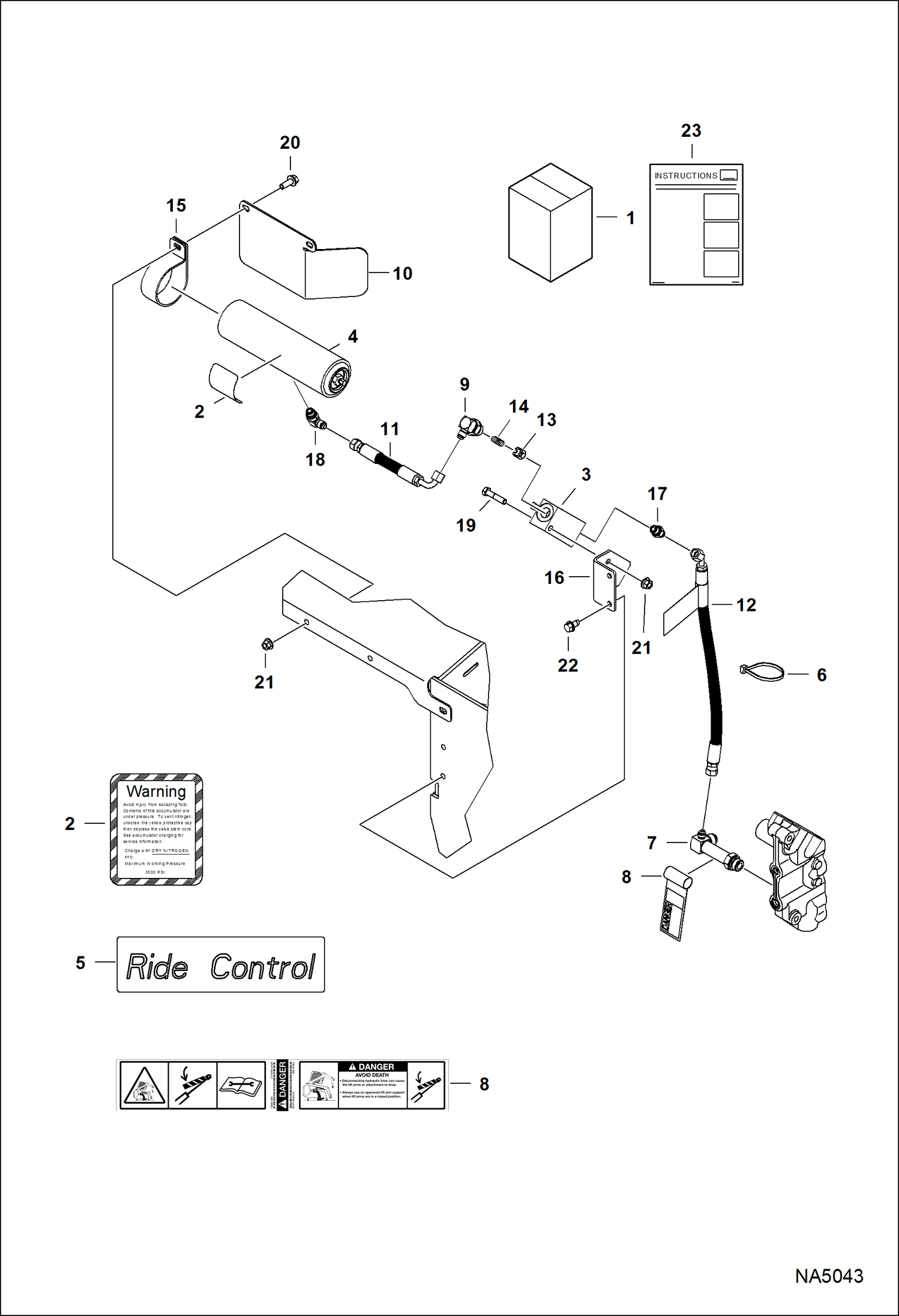

Запчасти Bobcat RIDE CONTROL KITS RIDE CONTROL KIT (For Loaders A770, S630, S650, S750, S770, S850, T630, T650, T750, T770, T870) Loader

1

7184637

KIT, CONTROL RIDE Ref. 2-23

2

6684688

DECAL, WARNING

3

7195419

VALVE, RIDE CONTROL See Illustration RIDE CONTROL KIT/ NA2826 - W/Ref. 9, 13 & 14 - Was 6684700 - B

4

6684703

ACCUMULATOR See Illustration RIDE CONTROL KIT/ MS2596

5

6690272

DECAL ride control

6

6624289

STRAP, TIE

7

7195181

KIT, FITTING W/DECAL W/Ref. 8 - 600, 700 & 800 models - Was 7170037 - B

7

7212964

KIT, FITTIMG W/DECAL W/Ref. 8 - 500 models

7

79K10

O RING 10

8

7170355

DECAL, DANGER

9

7183399

ADAPTER

9

79K10

O RING 10

10

7184423

BRACKET SHIELD 600, 700 & 800 models

10

7212853

BRACKET, SHIELD 500 models

11

7197142

HOSE, HYD Was 7184642 - B

12

7197152

HOSE, HYD Was 7185249 - B

12

7170355

DECAL, DANGER

13

7186598

VALVE, CHECK

14

7186599

VALVE CHECK SPRING

15

7188110

CLAMP

16

7190013

BRACKET, MOUNTING

17

15KB0606

FITTING, HYD CONNECTOR

17

79K6

O RING 10

18

17KB0606

FITTING

18

79K6

O RING 10

19

17C628

BOLT

20

31C616

SCREW

21

83D6

NUT 5

22

84G3712

BOLT 5

23

6987300

INSTRUCTION
