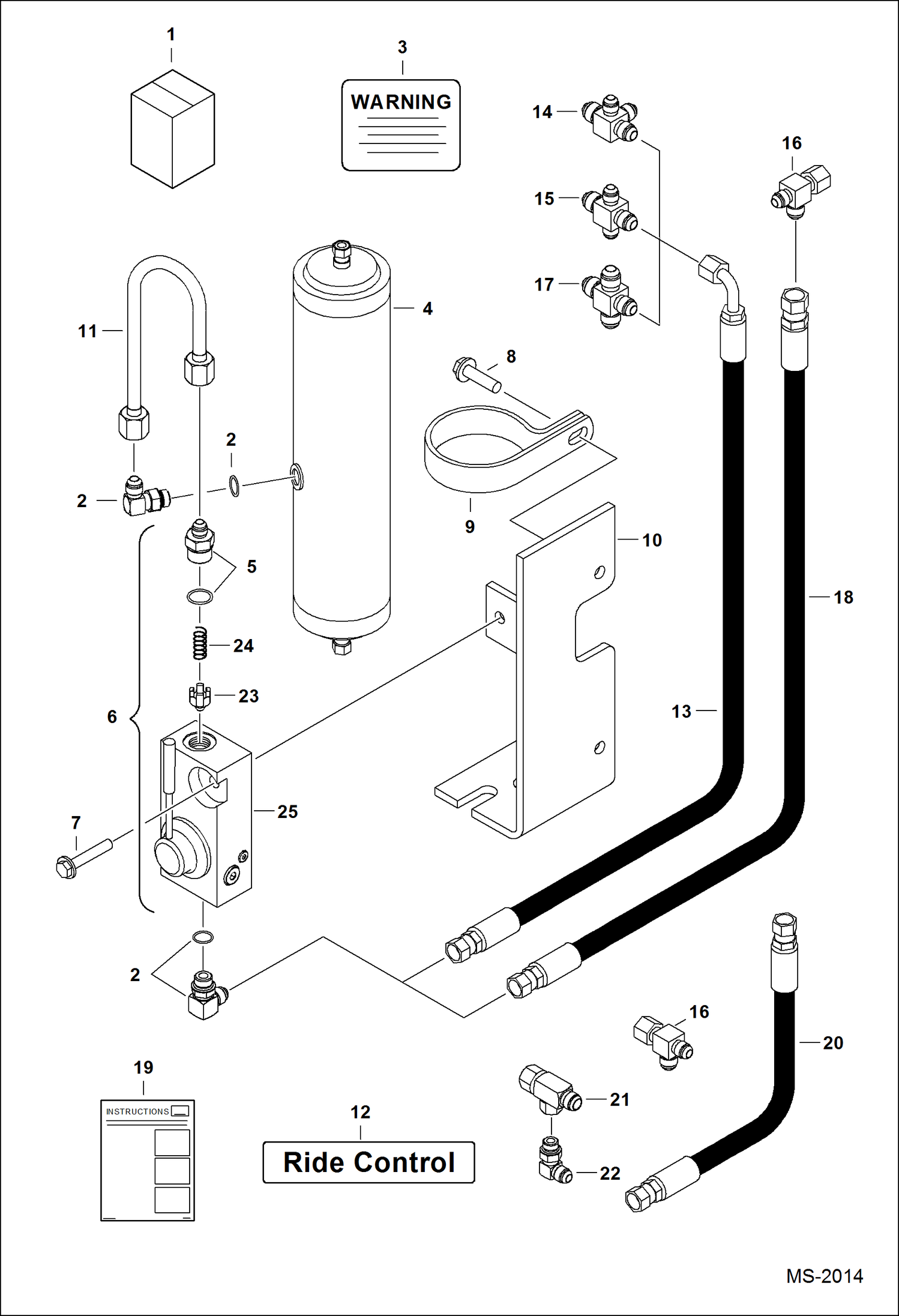

Запчасти Bobcat RIDE CONTROL KITS RIDE CONTROL KIT (For Loaders S130, S205) Loader

1

7106063

KIT, CONTROL RIDE W/Ref. 2 - 19 - Was 6686492 - A

2

17KB0606

FITTING

2

79K6

O RING 10

3

6684688

DECAL, WARNING

4

6684703

ACCUMULATOR See Illustration RIDE CONTROL KIT/ MS2596

5

6687126

ADAPTER

5

79K10

O RING 10

6

6684700

VALVE ASSY See Illustration RIDE CONTROL KIT/ MS2597 See Illustration RIDE CONTROL KIT/ MS2599 See Illustration RIDE CONTROL KIT/ MS2598 - Ref. 5 & 23-25

7

31C624

BOLT Was 6687100 - A

8

31C612

BOLT Was 6687099 - A

9

6684685

CLAMP

10

6687101

BRACKET

11

6687095

TUBE

12

6690272

DECAL ride control

13

7126614

HOSE 28.00'' long

14

7121037

TEE for S130 & S140 - earlier SN's

15

7121367

FITTING for S130 & S140 - later SN's

16

13K6

TEE for medium frame loaders

17

7126615

FITTING for large frame loaders

18

7157866

HOSE, HYD 23.00'' long

19

6903163

INSTRUCTIONS

20

6687096

HOSE not in kit - for earlier loaders - service only - 19.00'' long

21

6687098

TEE not in kit - for earlier large frame loaders - service only

22

17KB0806

FITTING, HYD ELBOW not in kit - for earler large frame loaders - service only

23

7186598

VALVE, CHECK

24

7186599

VALVE CHECK SPRING

25

VALVE NSS - Order Ref. 6
