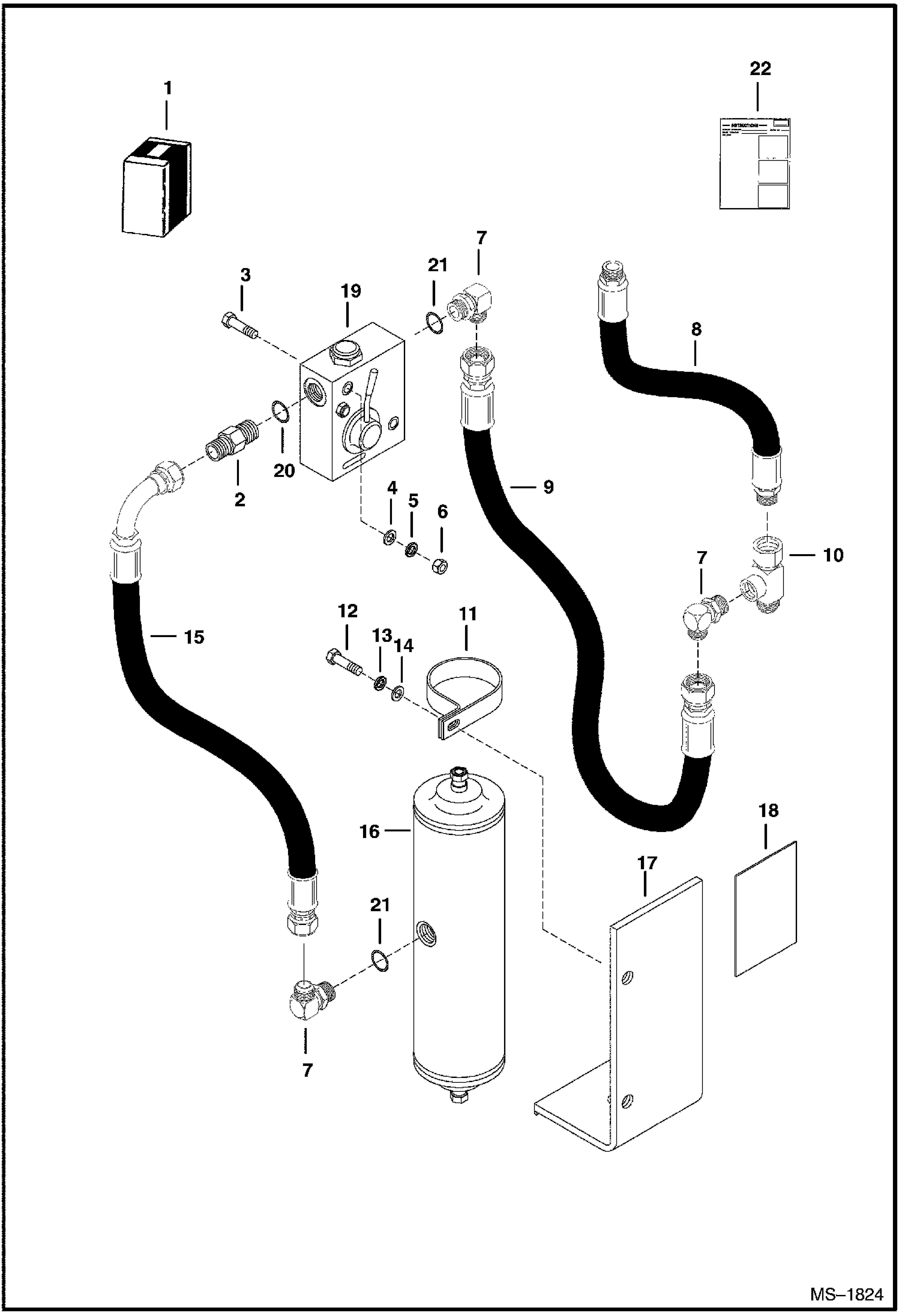

Запчасти Bobcat RIDE CONTROL KITS RIDE CONTROL KIT (For Loaders A300, S220, S250, S300, T250, T300) Loader

1

KIT NLA - W/Ref. 2 - 22 - Order 7106063 - Ride Control Kit - Was 6684040 - A

2

15KB0610

FITTING, HYD CONNECTOR

3

17C524

BOLT

4

25E15

WASHER flat

5

4E5

WASHER lock

6

85D5

NUT 5

7

17KB0606

FITTING

8

6684738

HOSE

9

6684740

HOSE

10

6684735

TEE

11

6684685

CLAMP

12

17C616

BOLT 5

13

4E6

WASHER lock

14

25E17

WASHER 5 flat

15

6684739

HOSE

16

ACCUMULATOR See Illustration RIDE CONTROL KIT/ MS2596

17

6684736

BRACKET

18

6684688

DECAL, WARNING warning

19

6684700

VALVE ASSY See Illustration RIDE CONTROL KIT/ MS2596

20

79K10

O RING 10

21

79K6

O RING 10

22

6902512

INSTRUCTIONS
