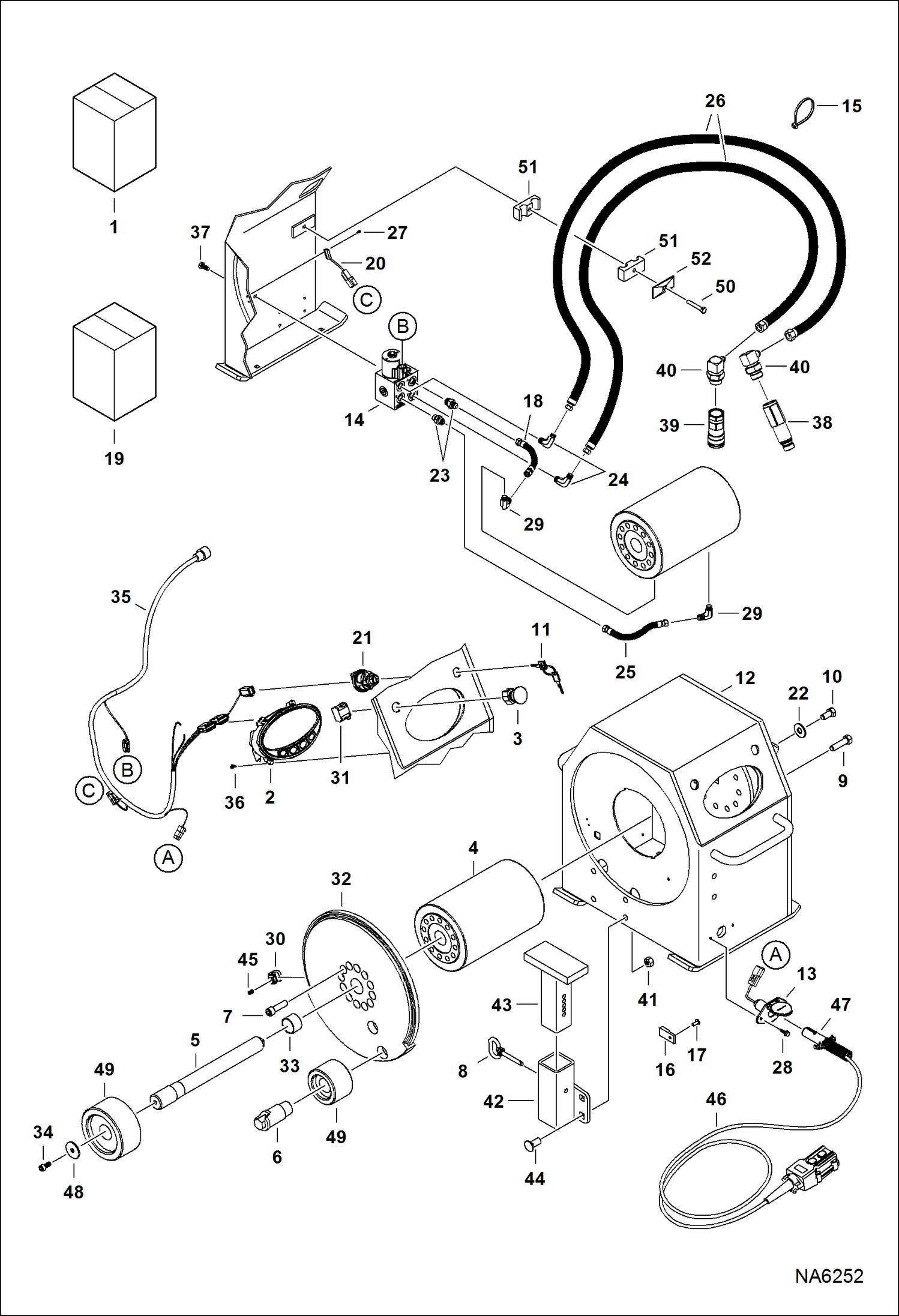

Запчасти Bobcat REBAR BENDER REBAR BENDER (Main Frame) (AZHN) Loader

1

REBAR BENDER SALES #7219937 - Ref. 2-52

2

7020381

PANEL, DISPLAY

3

6673180

SWITCH, E STOP

4

7025245

ACTUATOR

5

7025246

SHAFT

6

7025247

PIN

7

73G820

BOLT Was 73G824 - B,D

8

7025584

PIN, HITCH

9

1C820

BOLT

10

1C812

BOLT Was 17C816 - B,D

11

6693241

KEY 10

12

MAIN FRAME NSS - Order Ref. 1 - Was 7229136 - A

13

7025249

CONNECTOR, RECEPTACLE

14

7027487

VALVE, MANIFOLD See Illustration REBAR BENDER/ NA8016 - Was 7025238 - D

15

6682345

STRAP, TIE 8

16

6665000

CLIP

17

RIVET NSS

18

7027488

HOSE, HYD

19

7025587

KIT, CLAMP HYD Ref. 50-52

20

6728459

SENSOR, DOOR

21

6693245

SWITCH, IGN

22

27E7

WASHER Was 27E8 - B,D

23

15KB0606

FITTING, HYD CONNECTOR

24

17KB0606

FITTING

25

7027489

HOSE, HYD

26

7025252

HOSE, HYD

27

87G604

BOLT Was 87G606 - B,D

28

91G408

SCREW

29

17KB0604

ELBOW UNION

30

7025253

SENSOR, MAGNETIC

31

6673181

CONTACT

32

7025254

DISC, BEND

33

7025255

BEARING

34

7025263

BOLT

35

7219943

HARNESS, BENDER REBAR

36

58G406

BOLT Was 58G606 - B,D

37

1C512

BOLT

38

6674688

COUPLER, FF MALE

39

6672960

COUPLER, FF FEMALE

40

17KB0612

FITTING, HYD ELBOW

41

61D8

NUT 5

42

7025256

TUBE, W/A

43

7025257

SUPPORT

44

10C820

BOLT

45

16G506

SCREW

46

7025258

HARNESS, ATTACH REMOTE

47

7025259

CONNECTOR

48

7025260

WASHER

49

MANDREL KIT See Illustration REBAR BENDER/ NA6762

50

BOLT NSS - Order Ref. 19

51

CLAMP, HOSE NSS - Order Ref. 19

52

COVER, PLATE NSS - Order Ref. 19
