Запчасти Bobcat POWER-TILT POWER-TILT PTX-3 (325,328,329,331,334,425,430) Экскаваторы

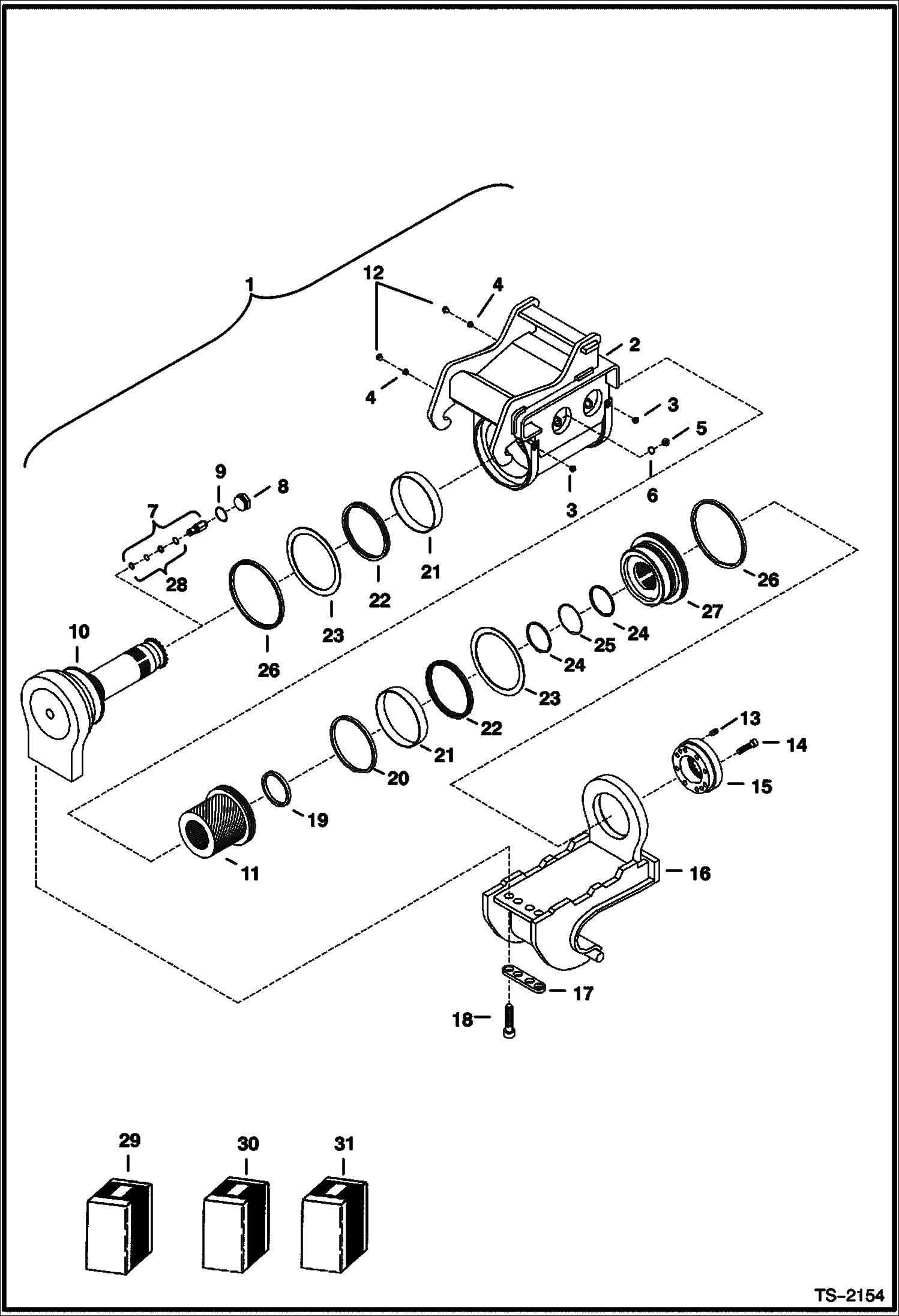

Схема запчастей Bobcat POWER-TILT - POWER-TILT PTX-3 (325,328,329,331,334,425,430) Экскаваторы

Артикул

Название

Примечание

Количество

1

6675185

ACTUATOR REF. 1-15 & 17-26

2

6675850

HOUSING

3

10H25

FITTING, GREASE 5

4

6675851

GREASE RELIEF

5

90KV5

PLUG

6

95K6

O'RING

7

6675399

RELIEF VALVE

8

6675852

PLUG

9

79K20

O RING 10 Was 95K000020B - B

10

6675692

SHAFT

11

6675853

PISTON

12

6675854

COVER grease relief

13

6675856

SCREW

14

6675855

BOLT

15

6675691

LOCK RING

16

6718673

FRAME lower

17

6675220

WASHER

18

3GM1650

BOLT

19

SEAL NSS

20

BEARING NSS

21

BEARING NSS - order Ref. 28

22

SEAL NSS

23

WASHER NSS - order Ref. 28

24

O-RING NSS

25

O-RING NSS

26

SEAL NSS

27

6675690

END CAP

28

6675903

SEAL KIT relief valve

29

6675689

BEARING KIT

30

6675688

SEAL KIT

31

6675693

HARDWARE KIT

Выбрано товаров: 31
