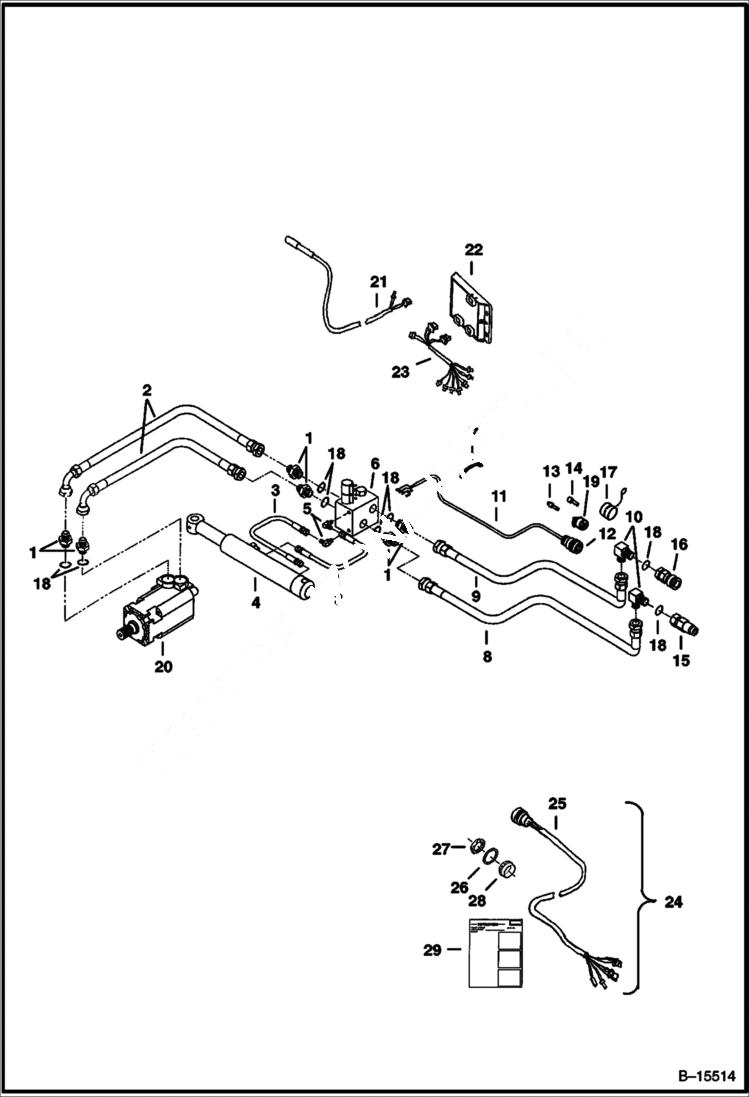

Запчасти Bobcat POWER RAKE POWER RAKE (Hydraulic & Electrical) (72 925100553 & Above) Loader

1

15K8

FITTING

2

6666970

HOSE

3

6666971

HOSE

4

CYLINDER See Illustration POWER RAKE/ B18983

5

17K3

ELBOW

6

VALVE See Illustration POWER RAKE/ B18982 HYDRAULIC MANIFOLD

7

6610510

TIE

8

6666969

HOSE

9

6666968

HOSE

10

17K8

FITTING

11

6666966

CABLE ASSY W/Ref. 12

12

6665001

CONNECTOR, ELECTRICAL W/Ref. 23 - Was 6664034 - A

13

6664041

SOCKET

14

6665370

PLUG plugs unused holes in connector

15

6674688

COUPLER, FF MALE straight - Was 6667808 - A

15

6679841

SEAL Was 6672026 - A

16

6672960

COUPLER, FF FEMALE straight

17

6664038

DUST CAP

18

79K12

O RING 10

19

6669286

CLAMP W/Saddles

20

MOTOR See Illustration POWER RAKE/ B14355

21

6719853

HARNESS 7-pin

22

6674944

LEVER, PTO MID ACD

23

6725232

HARNESS ACD to valve

24

6725381

KIT 14-pin harness conversion - converts 7-pin power rake to be used with 14-pin loader - W/Ref. 25-29

25

6725352

HARNESS 14-pin conversion

26

6664037

WASHER

27

6664036

NUT

28

6673680

RECEPTACLE, TWIST-LOC

29

6901005

INSTRUCTIONS
