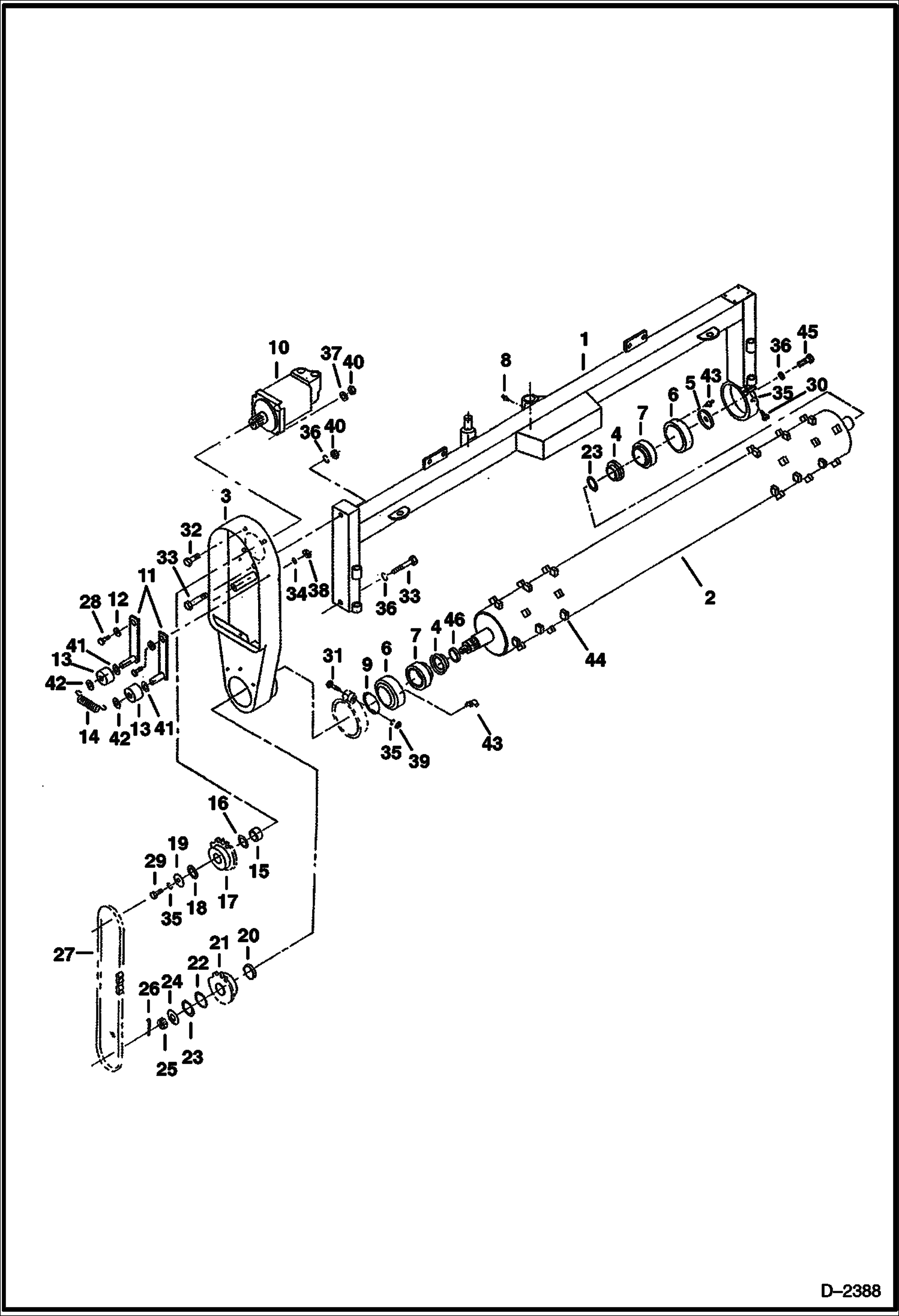

Запчасти Bobcat POWER RAKE POWER RAKE (Roller & Chaincase Assy) (72 925100351 - 00719) Loader

1

6666982

FRAME

2

ROLLER NLA - W/Ref. 44 - w/ std. square teeth - Was 6670734 - A

2

6674517

ROLLER W/Ref. 44 - with carbide teeth

3

6666980

CHAINCASE

4

6670735

COLLAR

5

6670736

COLLAR

6

6666948

HOUSING

7

6666947

BEARING

8

10H35

FITTING, GREASE 10

9

6667117

O-RING

10

6666934

MOTOR See Illustration POWER RAKE/ B14355

11

6666977

ARM

12

6666976

BUSHING

13

6666975

ROLLER

14

6666974

SPRING

15

6666973

COLLAR

16

6666992

BUSHING

17

6666991

SPROCKET

18

6666990

BUSHING

19

6666989

WASHER

20

6670737

SLEEVE

21

6670738

SPROCKET

22

6670739

BUSHING

23

6670740

BUSHING

24

6670741

WASHER

25

6670742

NUT Slotted jam

26

1F624

PIN

27

6666984

CHAIN #60

27

6515191

LINK connector

28

17C520

BOLT 5

29

17C612

BOLT 5

30

17C620

BOLT

31

17C632

BOLT 5

32

17C832

BOLT

33

17C848

BOLT

34

4E5

WASHER

35

4E6

WASHER

36

4E8

WASHER

37

28E8

WASHER

38

85D5

NUT 5

39

85D6

NUT, 5

40

85D8

NUT, 5

41

6666983

WASHER

42

6670743

WASHER pinned

43

12H25

FITTING

44

TOOTH NLA - Weld on - Hardening is required for replacement teeth - Order 6674518 - Was 6667719 - A

44

6674518

TOOTH carbide - hardening not required

45

18C816

BOLT

46

6670744

SPACER
