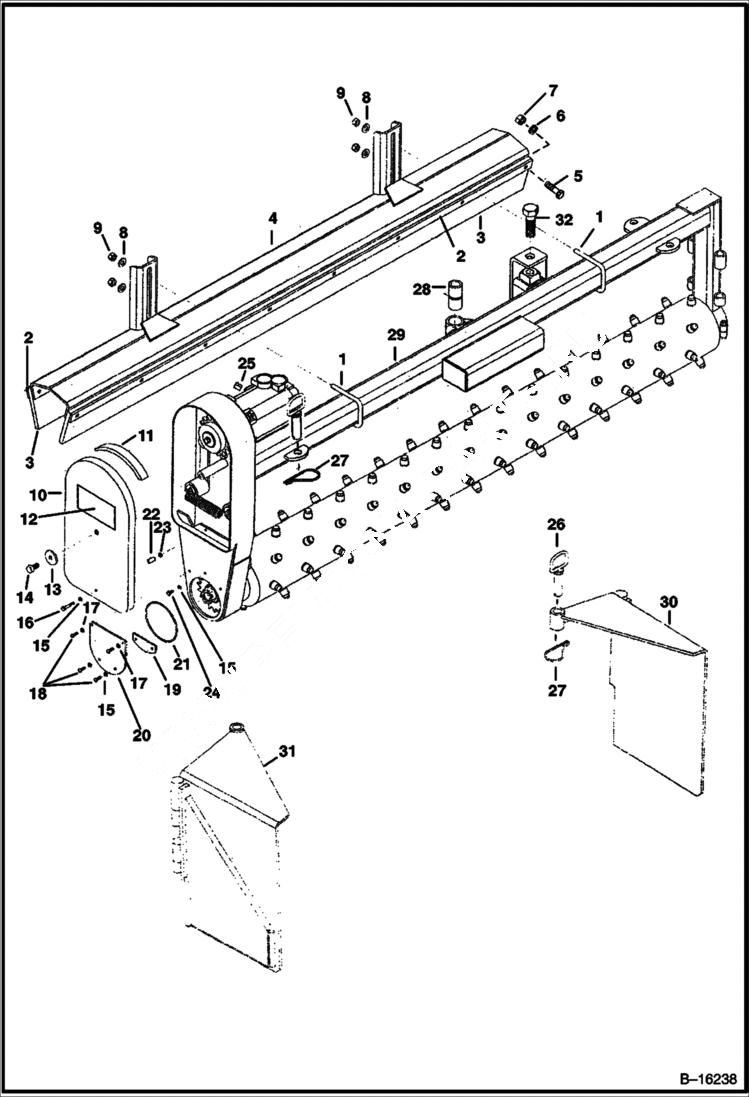

Запчасти Bobcat POWER RAKE POWER RAKE (Main Frame & Attaching Parts) (72 925100720 & Above) Loader

1

6677004

COVER

2

6666963

STRAP

3

6666964

BARRIER

4

6678208

MOUNT top

5

7C524

SCREW Carriage

6

4E5

WASHER

7

85D5

NUT 5

8

4E8

WASHER

9

85D8

NUT, 5

10

6667012

COVER

11

6667011

SEAL

12

6709311

DECAL, SERVICE

13

6666952

WASHER

14

17C816

BOLT

15

6666997

WASHER

16

17C424

BOLT

17

4E4

WASHER

18

25G412

CAPSCRW10

19

6667009

TAB

20

6667008

COVER

21

6667010

O-RING

22

6666998

BUSHING

23

6666996

WASHER

24

17C408

BOLT

25

6667013

PLUG Vent

26

6667001

PIN

27

6667000

PIN

28

6667015

BUSHING

29

ROLLER ASSY See Illustration POWER RAKE/ B16239

30

6667003

END PLATE

31

6667002

END PLATE

32

6678223

BOLT
