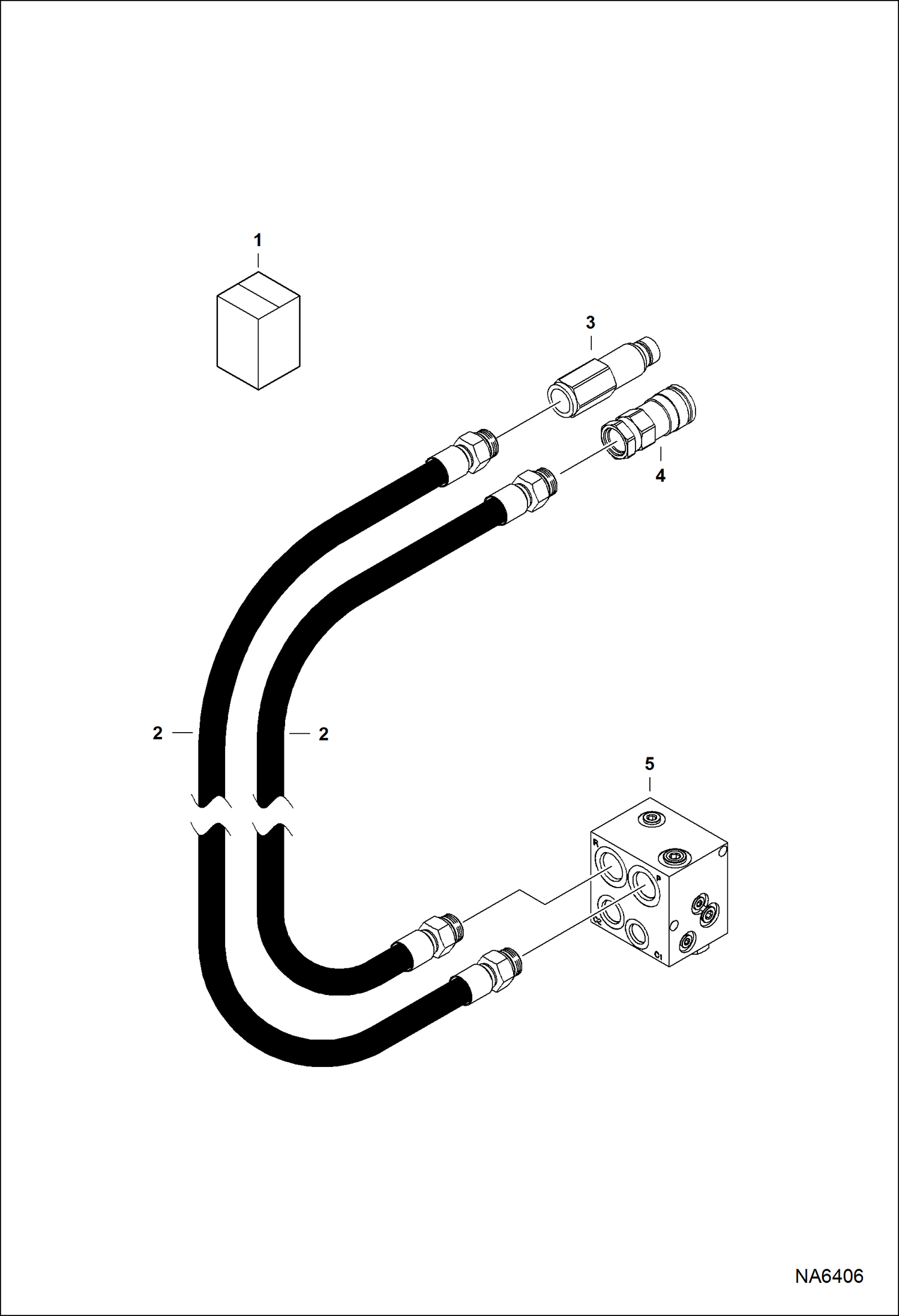

Запчасти Bobcat PLATE COMPACTORS PLATE COMPACTOR (Hose Kit) (PCF34 AW3H) (PCF64 AVNY) Экскаваторы

1

HOSE KIT NLA - Ref. 2-4 - Order components - Use W/standard arm - Was 7217835 - A

1

HOSE KIT NLA - Ref. 2-4 - Order components - Use W/long arm - Was 7217834 - A

1

7217836

KIT, HOSE Ref. 2-4

2

7217424

HOSE, HYD 2362 mm (93'') long - Use W/Ref. 1 (NLA/ 7217835 hose kit)

2

79K14

O RING 10

2

7217424

HOSE, HYD 2362 mm (93'') long - Use W/Ref. 1 (7217836 hose kit)

2

79K14

O RING 10

2

7217425

HOSE, HYD 2717 mm (107'') long - Use W/Ref. 1 (NLA/ 7217834 hose kit)

2

79K12

O RING 10

2

7217837

HOSE, HYD 2260 mm (89'') long - Use W/ Ref. 1 (7217836 hose kit) - connects to male coupler & P port on manifold

2

79K14

O RING 10

3

6674688

COUPLER, FF MALE

4

6672960

COUPLER, FF FEMALE

5

6689919

MANIFOLD, HYD ASSY See Illustration PLATE COMPACTOR/ MS2655 - flow control
