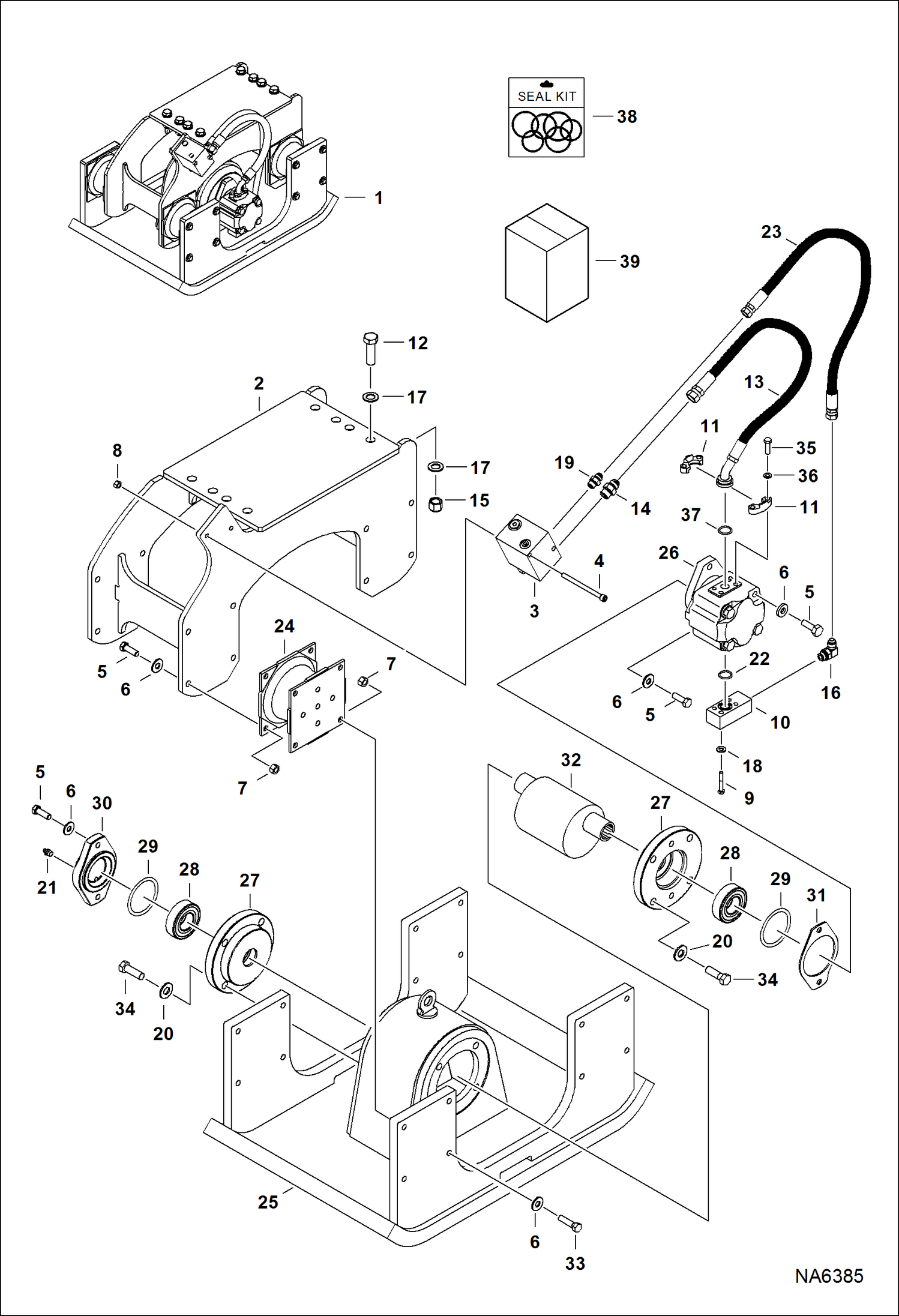

Запчасти Bobcat PLATE COMPACTORS PLATE COMPACTOR (PCF64 AVNY) Экскаваторы

1

COMPACTOR ASSY SALES #7210256

2

7024203

FRAME, MAIN ASSY

3

6689919

MANIFOLD, HYD ASSY See Illustration PLATE COMPACTOR/ MS2655 - flow control

4

17C680

BOLT

5

17C824

BOLT 5

6

27E8

WASHER 10

7

95D8

NUT

8

95D6

NUT

9

17C832

BOLT

10

6675163

MANIFOLD inlet

11

19J12

CLAMP split flange

12

17C1240

BOLT

13

7024218

HOSE, HYD

14

41E1210

FITTING, HYD CONNECTOR

14

75K10

O RING 10

14

55K18

O'RING

15

59D12

NUT

16

17KB0808

FITTING, HYD ELBOW

16

79K8

O RING 10

17

6651723

WASHER

18

27E6

WASHER 5

19

41E0808

FITTING, HYD CONNECTOR

19

75K8

O RING 10

19

55K14

O-RING

20

27E10

WASHER

21

6630626

GREASE ZERK

22

6651781

O-RING

23

7024217

HOSE, HYD

24

6675158

MOUNT rubber

25

FRAME NSS - Order Ref. 1

26

6675165

MOTOR

27

6675159

END CAP bearing

28

6675161

BEARING

29

6675164

O-RING

30

6675160

END CAP

31

6675166

MOUNT ADAPTER

32

6675162

ROTOR

33

17C832

BOLT

34

17C1032

BOLT

35

17C620

BOLT

36

4E6

WASHER

37

58K214

O RING 10

38

6675840

SEAL KIT for Ref. 26 motor

39

REPAIR KIT NLA - for Ref. 26 motor
